Beyond Whittle proposes a replacement architecture for aviation combustion: an electromagnetic field‑governed reaction kernel that stabilises hydrogen combustion without swirl, without geometry‑anchored flameholding, and without the thermoacoustic and flashback instabilities that make hydrogen fundamentally incompatible with Whittle’s 1940s combustor topology. As the document states, “hydrogen’s ultra‑high flame speed, flashback tendency, violent thermoacoustic behaviour, and NOx formation… are not tuning problems — they are fundamental incompatibilities with a combustor topology unchanged in eighty years.”

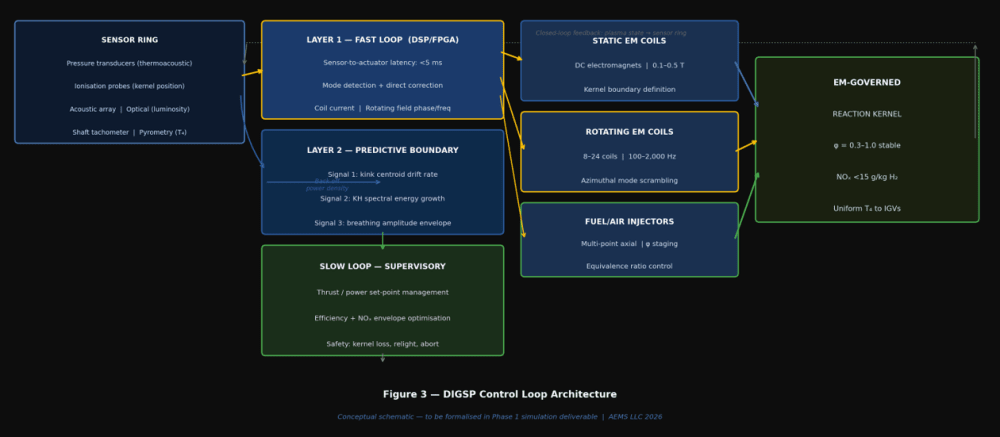

The architecture replaces the swirl can with a field‑defined reaction volume. A static electromagnetic field establishes a curvature‑shaped boundary that confines the reaction kernel, while a rotating EM field actively suppresses azimuthal thermoacoustic modes. Kernel position, shape, and stability are governed in real time by DIGSP — the same supervisory control architecture used across the Griffiths Canon. The result is a combustor whose stabilisation mechanism is programmable rather than geometric.

Why Hydrogen Breaks Whittle’s Architecture

Hydrogen’s laminar flame speed is ~2.9 m/s — 7–8× kerosene — and turbulent flame speeds at turbine conditions reach 10–30 m/s. This makes flashback structurally unavoidable in swirl‑stabilised premixers, where local flow velocity routinely falls below turbulent flame speed. Hydrogen also exhibits extreme thermoacoustic sensitivity: its heat‑release timescale (0.01–0.1 ms) couples strongly with combustor acoustic modes, producing violent instabilities that passive geometry cannot suppress. Finally, hydrogen’s adiabatic flame temperature (~2,400 K) drives NOx formation via the Zeldovich mechanism, creating a lean‑flashback‑NOx trilemma that no geometry‑anchored combustor can resolve.

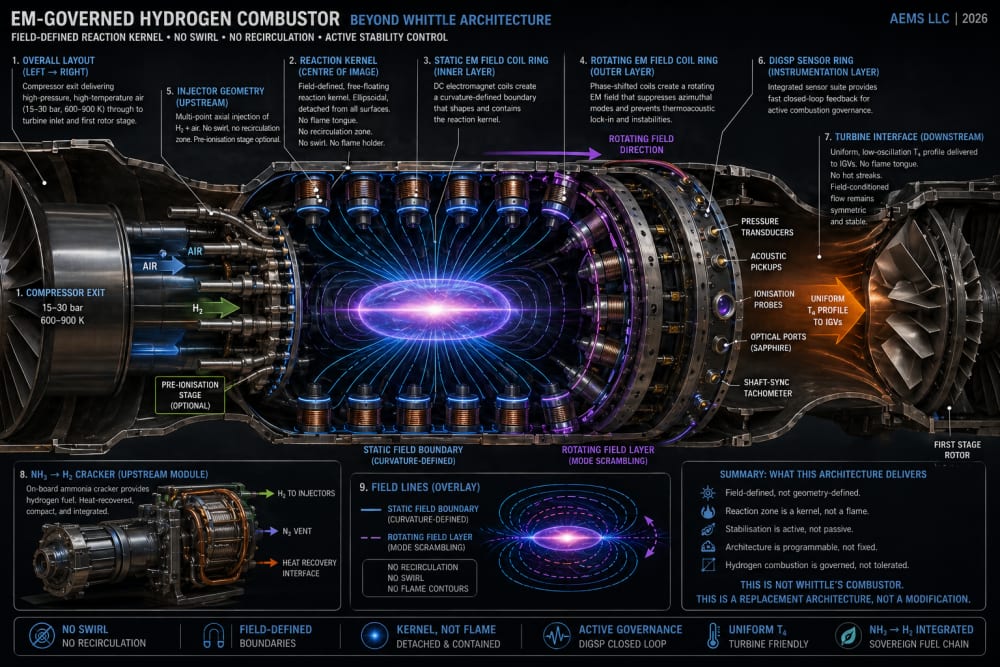

EM‑Governed Reaction Kernel

The EM‑governed kernel is a free‑floating reaction zone bounded by a curvature‑defined static field. This boundary imposes a restoring force that suppresses Kelvin–Helmholtz shear growth, kink modes, and upstream flame propagation. A rotating EM field ring (8–24 coils) scrambles azimuthal modes, preventing the spatial phase coherence required for thermoacoustic lock‑in.
