As human activity expands toward permanently occupied orbital stations, lunar habitats, Mars transit vehicles, and deep-space platforms, structural health awareness will become increasingly critical. Future spacecraft and habitats will be larger, more complex, and harder to inspect manually than current vehicles. Micrometeoroid strikes, orbital debris impacts, tool strikes, pressure-vessel anomalies, and fatigue-related events may occur in areas that are difficult to access quickly. Crews and ground operators will need rapid, localized, actionable information when structural events occur.

The Dynamic Structural Impact Localization System, or DSILS, is a structural monitoring platform that detects, localizes, classifies, and reports impact events on rigid structures. DSILS uses distributed acoustic sensor modules, synchronized timing hardware, Time Difference of Arrival localization, local waveform capture, event classification, severity estimation, and operator-focused telemetry to convert structural impact events into response guidance.

DSILS detects the acoustic transient produced by an impact, crack event, fatigue event, debris strike, or other structural anomaly. Sensors mounted around the monitored structure capture the event, and high-precision synchronized timing hardware measures the difference in arrival time between sensor channels. A Time Difference of Arrival engine calculates the probable event location. Local DSP waveform buffers preserve pre-event and post-event data, allowing the system to estimate severity and distinguish between minor contact, damaging impact, fatigue-related activity, or other acoustic signatures.

The key innovation is that DSILS does not stop at reporting a coordinate. It translates the event into operational intelligence by mapping the location to an inspection zone, access panel, structural bay, maintenance region, joint, seam, or other serviceable location. This helps operators move directly from detection to assessment and response.

DSILS could identify the affected region, estimate event severity, preserve diagnostic data, and guide the crew or ground operators to the proper inspection or repair area. Future sensor refinements may add active ultrasonic leak-estimation hardware using the same local DSP resources and waveform-buffering architecture that support passive impact detection. This would allow the system to investigate cases where an impact near a panel joint, seam, hatch, or structural penetration causes localized deformation or leakage without immediately compromising overall structural integrity.

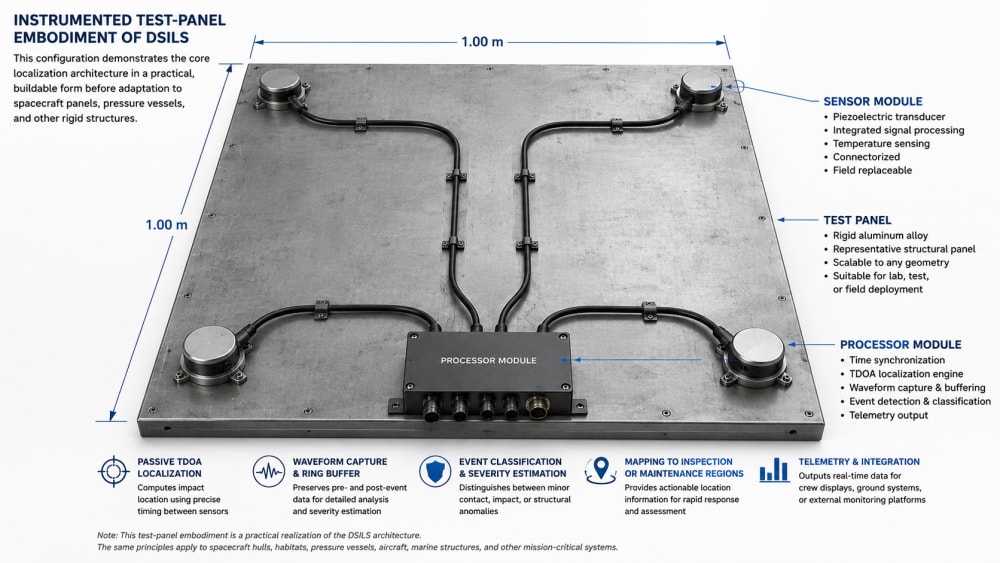

The DSILS sensor module is designed as a serviceable field-replaceable unit. A representative module includes a piezoelectric transducer, thermistor, local signal-processing layer, connectorized interface, and integral mounting stud. This modular design supports calibration, troubleshooting, temperature compensation, future ultrasonic extensions, and in-situ replacement without removing the monitored structure from service.

DSILS is feasible because it integrates proven building blocks—acoustic sensing, synchronized timing, digital signal processing, localization algorithms, modular sensor packaging, waveform buffering, and telemetry—into a new architecture centered on rapid operational response. It can scale from a single instrumented panel to a distributed structural monitoring network.

The result is a practical, adaptable, and safety-focused platform that turns impact detection into localization, severity assessment, maintainable sensing, leak-aware refinement, and guided response. DSILS improves situational awareness, reduces inspection time, supports mission assurance, and provides a common technology framework for future space-based and terrestrial structural monitoring.
