Conventional open-rotor UAVs suffer from two major limitations in aerospace operations: severe susceptibility to wind disturbances and safety hazards from exposed blades. In crosswinds, open propellers experience asymmetric lift and tip vortex states, causing roll/pitch instability. This restricts their use in turbulent weather, close to infrastructure, or during tactical military and disaster-relief operations.

The DRD-VTOL is a next-generation, heavy-lift Unmanned Aerial Vehicle featuring a distributed, 8-motor coaxial (X8) quad-duct architecture. With a design Max Takeoff Weight (MTOW) of 90.0 kg and a 40.0 kg nominal cargo capacity, the platform delivers unparalleled environmental resilience and collision safety by combining aerodynamically optimized shrouds with active flight-stabilization control.

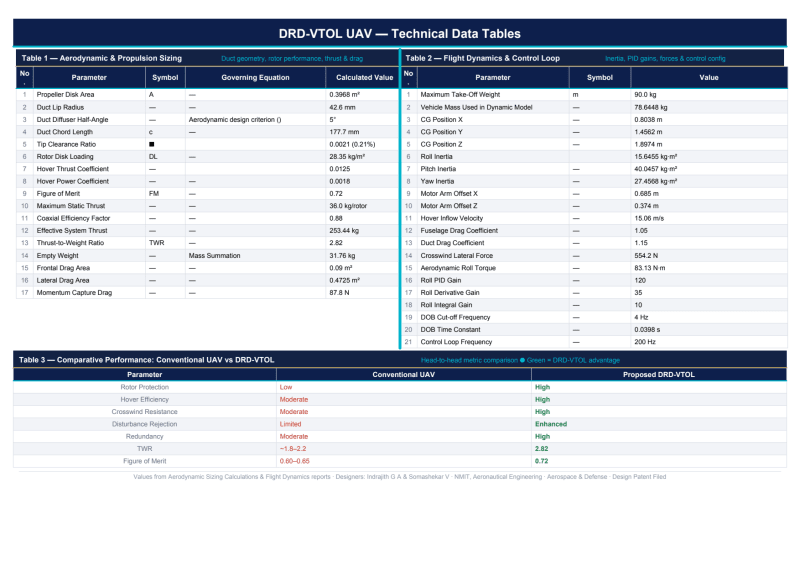

Aerodynamic & Propulsion Sizing:

• Duct-Suction Thrust Magnification: Encasing 28-inch carbon propellers inside custom ducts with a tight 1.5 mm tip clearance (0.21% ratio) seals blade tips and eliminates vortex losses. This design achieves an exceptional hover Figure of Merit (FM) of 0.72 (compared to 0.60 for open rotors) and a hover efficiency of 8.2 g/W.

• Duct Geometry: Features a 45.7 mm duct lip radius (6% of rotor diameter) to prevent inlet flow separation, a 5.0 degree diverging diffuser half-angle to prevent boundary layer stall, and a 190.5 mm chord length (0.25 depth-to-diameter ratio) to minimize lateral drag.

• Thrust Performance: Powered by 8 x T-Motor U15 II brushless outrunners. Factoring in a 12% coaxial downwash loss (coaxial efficiency = 0.88), the system generates 253.44 kg of maximum thrust, yielding a high Thrust-to-Weight Ratio (TWR) of 2.82 at MTOW for extreme maneuverability and wind rejection.

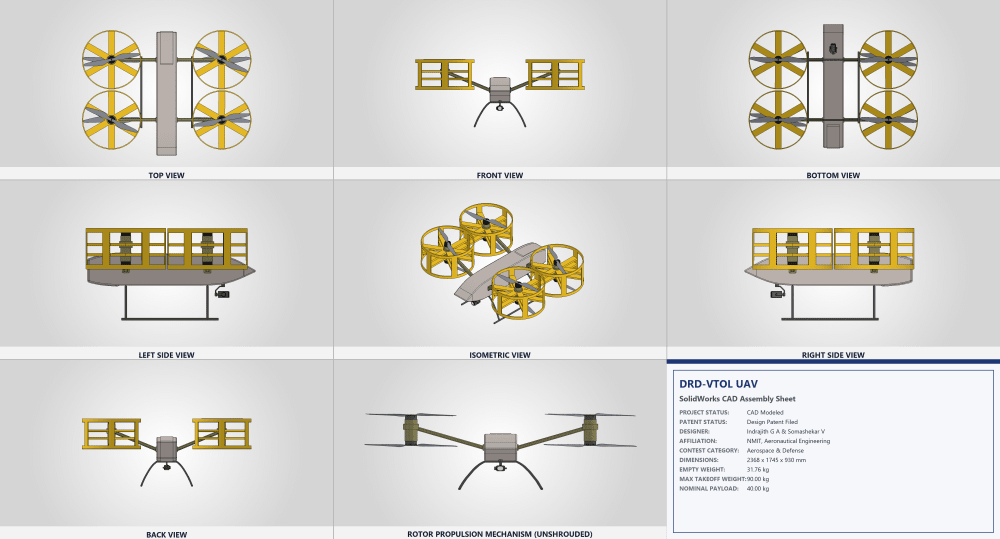

Structural Materials & CAD Design:

• RF-Transparent Fuselage: The outer skin is fabricated from 0.8 to 1.0 mm E-Glass Fiberglass/Epoxy (GFRP) to ensure absolute electromagnetic transparency for internal GPS, telemetry, and RC receivers.

• High-Strength Airframe: Internal bulkheads and the base plate are 3.0 mm carbon fiber (CFRP) plates, tied together by hollow carbon rods and CNC-machined 7075-T6 aluminum reinforcement brackets.

• Shatter-Resistant Shrouds: Propeller shields utilize a Kevlar-Carbon prepreg hybrid with a Nomex honeycomb core, providing the high elastic modulus (70 GPa) needed to maintain blade clearance under load while absorbing collision impacts without splintering.

• 3G Landing Gear: Built with Seamless Aluminum 6061-T6 tubing integrated with oleo-pneumatic shock absorbers to damp 3G dynamic touchdown loads.

Flight Dynamics & Active Control Loop:

Operating in a 15 m/s crosswind generates a 619.32 N lateral disturbance force and an 83.13 N-m roll torque. To prevent control saturation, the flight controller (Pixhawk Cube Orange + NVIDIA Jetson companion computer) runs an active Disturbance Observer (DOB) loop at 200 Hz. The DOB estimates wind-gust torques in real-time, passes them through a 4 Hz low-pass filter, and cancels the disturbance via feed-forward compensation—restoring attitude within 0.8 seconds and limiting lateral drift to under 0.2 meters.
