Modern commercial aviation safety is heavily focused on accident prevention. However, when catastrophic structural failures or unavoidable crashes occur, passengers remain entirely dependent on the survival of the main airframe. AeroDock is a revolutionary, synchronized multipoint docking system designed to make modular, detachable-fuselage aircraft a reality, shifting the aviation paradigm from passive safety to active cabin survivability.

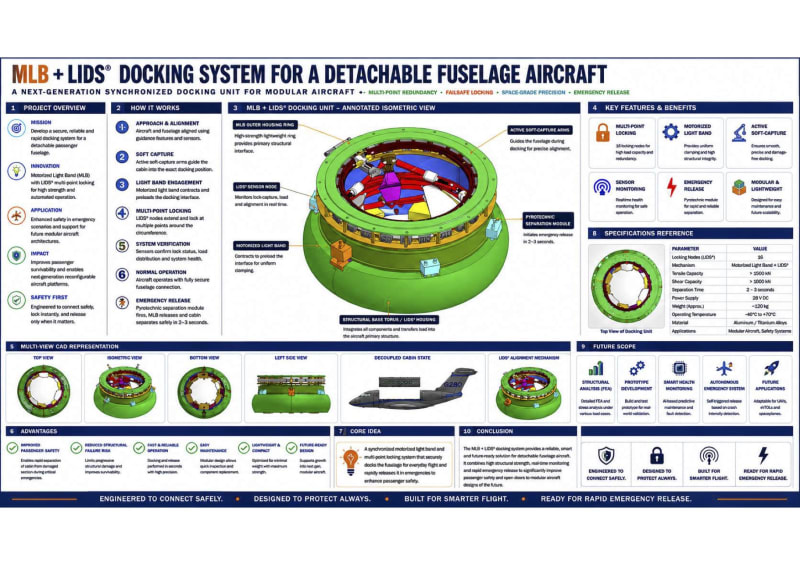

AeroDock establishes a highly secure, structurally redundant connection between a detachable passenger cabin and a carrier airframe. Traditional modular concepts are vulnerable to single-point joint failures and struggle with the dynamic load transfers of atmospheric flight. AeroDock solves this by utilizing a distributed, multipoint docking topology. Rather than relying on a single structural joint, it distributes severe aerodynamic and inertial loads across three high-strength loadbearing nodes. Verified through Finite Element Analysis (FEA), this architecture maintains structural integrity under flight loads up to 2.5g with a Factor of Safety exceeding 1.5, ensuring absolute rigidity and preventing single-point failures.

The system adapts proven, high-precision spacecraft docking logic to withstand the continuous shear, bending, and turbulent forces of atmospheric flight. It operates via a synchronized, three-tier coupling and decoupling stack:

1. Soft Capture (Alignment): Inspired by NASA’s International Low Impact Docking System (ILIDS), active-passive docking nodes gently guide the cabin into perfect alignment during assembly, correcting for up to 5 mm of positional tolerance in under 30 seconds without mechanical binding.

2. Hard Capture (Primary Lock): Once aligned, a primary locking mechanism inspired by Motorized Light Band (MLB) technology takes over. A continuous mechanical clamping ring engages to create a rigid, zero-backlash structural coupling. Crucially, the actuation geometry allows for a power-independent passive hold, requiring electrical power only during active locking and unlocking, ensuring the cabin remains securely attached even during complete aircraft power failure.

3. Emergency Decoupling (Failsafe Release): In a catastrophic emergency, tertiary localized pyrotechnic separation mechanisms actuate. This provides instantaneous load-path clearance along the splitting plane, executing a complete, clean release of the passenger cabin in under 5 seconds. The design prevents mechanical binding or jamming, even if the surrounding airframe undergoes severe structural deformation during the crisis.

Beyond emergency cabin extraction, AeroDock unlocks unprecedented operational efficiency. By enabling airlines to rapidly swap passenger cabins for cargo modules, or de-board passengers while the carrier aircraft immediately takes off with a pre-loaded cabin, airport turnaround times are dramatically reduced.

AeroDock bridges the gap between orbital precision and atmospheric durability. By hybridizing space-grade capture mechanics with a redundant, high-strength aeronautical structure, this design provides a viable, scalable path toward modular aviation. It represents a major leap forward in aerospace engineering—one that protects payloads, streamlines global transport, and ultimately saves human lives.
