The H2‑EM Engine v2.0 is a hydrogen combustion architecture built around electromagnetic governance rather than mechanical containment. It is designed for heavy‑duty, industrial, off‑highway, and defence applications where hydrogen’s instability has historically made conventional engines unsafe or unreliable. The core idea is that hydrogen’s problems are kinetic, not thermodynamic, and therefore can be controlled by shaping the ignition environment with electromagnetic fields.

Hydrogen is an extremely reactive fuel. It ignites at very low energy, diffuses rapidly, burns with a fast flame speed, and has a wide flammability range. These properties make backfire, pre‑ignition, knock, and leak‑ignition difficult to prevent in traditional engines. High‑pressure storage adds further risks such as embrittlement and catastrophic vessel failure. Fuel cells avoid combustion but introduce their own fragility, purity requirements, and poor tolerance to harsh operating environments.

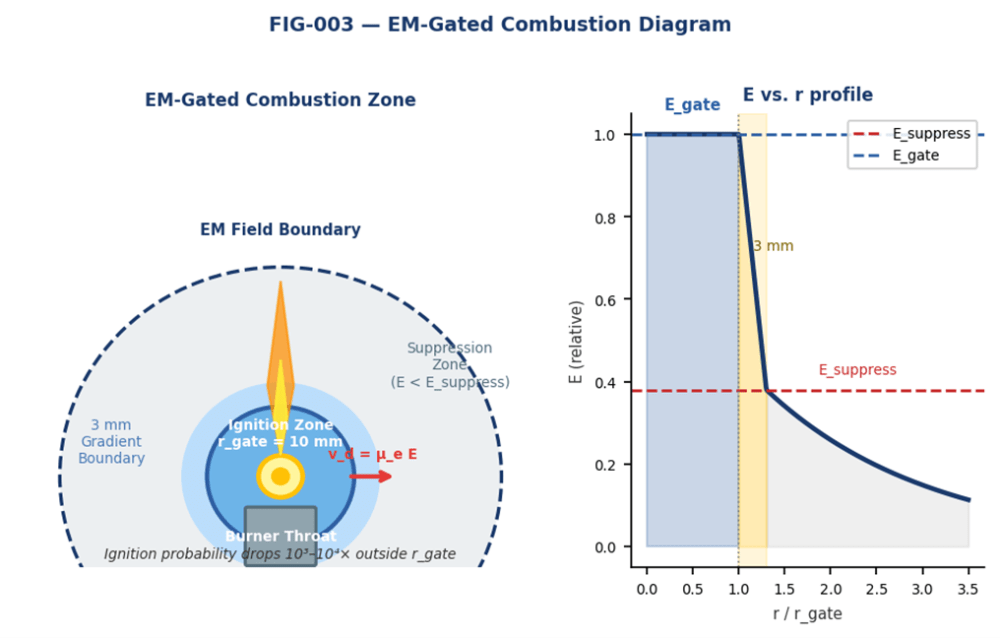

The H2‑EM Engine reframes the problem by defining when and where hydrogen is allowed to ignite. The architecture uses plasma‑locked ignition, electromagnetic field‑gated ignition zones, and suppression fields that prevent flame‑kernel formation everywhere except a tightly defined authorised region. Plasma‑locked ignition means the engine will not ignite unless an actively sustained plasma kernel is present. Without the plasma, the probability of ignition drops by several orders of magnitude. Field‑gated ignition zones create a small region where the electric field supports kernel growth. Outside this region, the field suppresses radical formation and collapses any nascent flame kernel before it can propagate.

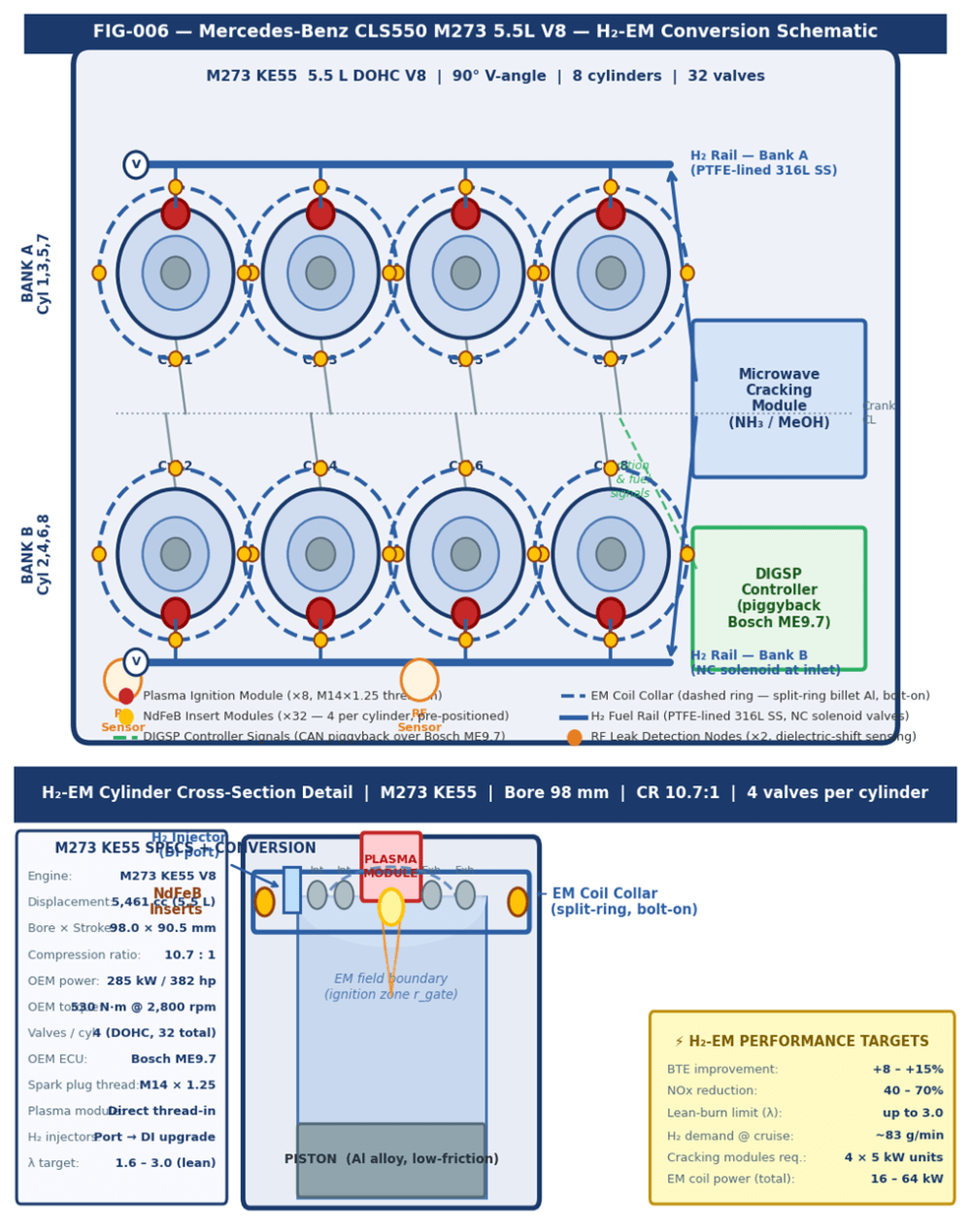

A two‑tier magnetic system provides the field structure. Bulk confinement coils generate a distributed field that defines the ignition boundary, while high‑field inserts at the burner throat create steep gradients that sharpen the suppression wall. These gradients extract charged radicals, disrupt kernel growth, and prevent ignition in all unauthorised regions. Once a flame is established, the field is reduced to a shaping level that stabilises lean combustion, reduces NOx, and maintains predictable flame behaviour.

Hydrogen handling is governed rather than contained. RF dielectric‑shift sensors detect leaks continuously. Electromagnetic suppression volumes prevent ignition around tanks, regulators, and injector rails. The engine can operate with on‑demand hydrogen generation from safer carriers such as ammonia, methanol, or liquid organic hydrogen carriers. This eliminates stored hydrogen mass and removes the failure modes associated with high‑pressure storage.

A supervisory control layer, based on the DIGSP framework, predicts pre‑ignition, modulates fields in real time, governs mixture and injection timing, and enforces a multi‑domain safety envelope. It integrates ionisation sensing, pressure‑rise‑rate analysis, and field feedback to maintain stable operation. If any subsystem fails, the engine degrades gracefully rather than catastrophically. Shutdown is an ordered sequence that terminates hydrogen flow first, collapses the plasma kernel, and ramps fields into suppression mode.

The result is an engine that treats hydrogen as a governed medium rather than a dangerous fuel to be contained, enabling stable, ultra‑lean, low‑NOx combustion with dramatically reduced ignition risk.
