​1. The Problem

When road vehicles or high-speed metro trains travel through enclosed tunnels, they generate violent air vortices and severe aerodynamic pressure waves, commonly known as the "Piston Effect." This critical issue intensifies dramatically in bidirectional tunnels where traffic moves in opposite directions, creating chaotic, multi-directional turbulent zones. These aerodynamic disturbances trap air pressure, generate dangerous lateral forces on vehicles, induce structural vibrations, and cause high noise levels. Furthermore, traditional tunnel safety relies on high-maintenance jet fans and expensive, separate concrete ducts for emergency smoke evacuation.

​2. The Solution & Innovation

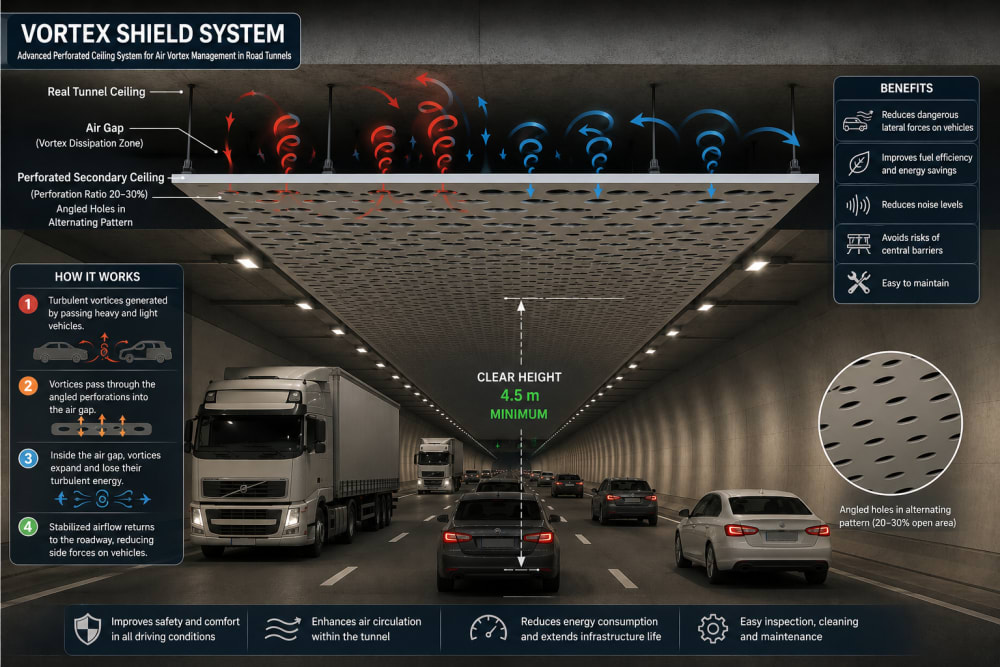

The Vortex Shield System is a universal, modular infrastructure solution designed to passively manage complex tunnel aerodynamics and actively protect passengers. It consists of a perforated secondary ceiling installed below the real tunnel ceiling, creating an Air Gap (Vortex Dissipation Zone).

The core innovation lies in its angled holes arranged in an alternating pattern with a 20–30% open area ratio. This specific geometric configuration acts as a multi-directional mechanical trap, allowing the system to handle chaotic airflow from opposite directions and dampen aerodynamic shockwaves without consuming any electrical energy.

3. How It Works (Dual-Mode Operation)

​Normal Mode (Passive): As vehicles or trains pass, the chaotic vortices and high-pressure waves are pushed upward through the angled perforations into the Air Gap. Inside this zone, the turbulent air expands and rapidly loses its kinetic energy (Kinetic\ Energy). A stabilized, low-velocity airflow gently returns to the transit tube, drastically reducing lateral forces on vehicles, mitigating the Piston Effect, and dampening structural vibrations.

​Emergency Mode (Active): In the event of a road or subway tunnel fire, external exhaust fans connected to the Air Gap are activated. This creates a negative pressure zone that pulls toxic smoke upward across the entire surface, transforming the shield into a high-capacity emergency smoke extraction duct to secure clear escape routes and visibility.

​4. Key Benefits

Universal Application: Equally effective for road highways and high-speed metro subway networks.

​Bidirectional Aerodynamic Stability: Efficiently dissipates multi-directional airflow from opposite traffic, reducing cabin noise and structural stress on tunnel walls.

​Energy Efficiency: Lowers aerodynamic drag inside the tunnel, reducing fuel/power consumption for vehicles and trains.

​Life Safety & Cost-Effective Retrofitting: A dual-purpose system (passive vortex dampening + active fire smoke evacuation) that is modular, easy to clean, and can be easily retrofitted into existing tunnels or integrated into new smart city infrastructures.
