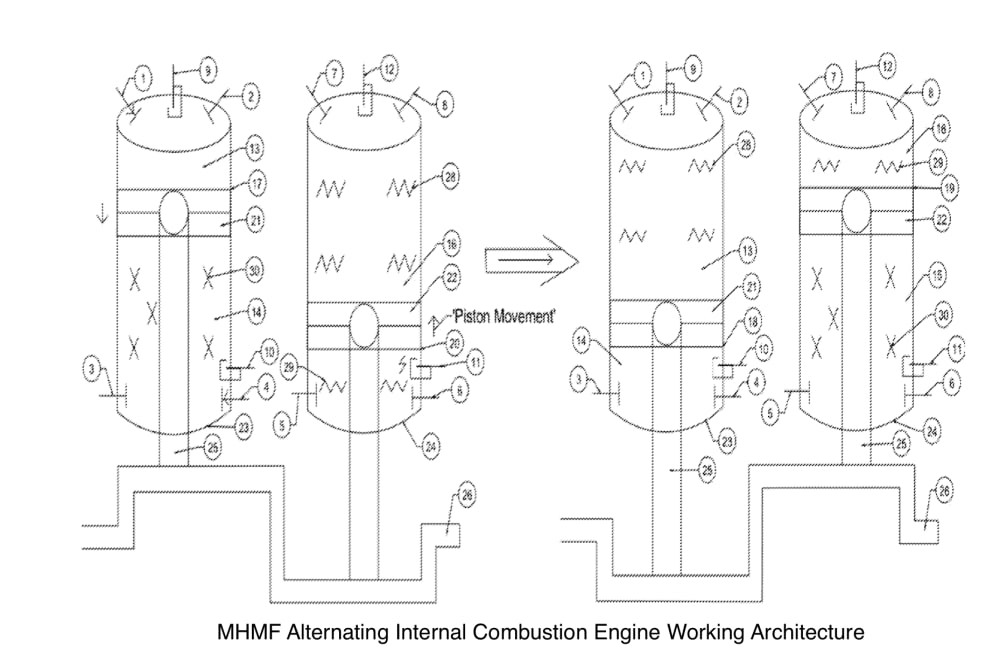

The MHMF Alternating Internal Combustion Engine (US Patent 11,970,968 B1) is a fundamentally new engine architecture built around a single novel component: the double-sided piston. Unlike a conventional piston with one active face, the MHMF piston carries a combustion bowl on both its top and bottom faces, dividing each cylinder into two fully independent combustion chambers — an upper chamber and a lower chamber, each with its own intake valve, exhaust valve, spark plug, and direct fuel injector. A research by MHMF also talks about how NH3 can be implemented and coupled with MHMF engine design with higher compression ratio coupled with high operating temperature and reduced geometric size.

In a two-cylinder MHMF engine, this creates four combustion chambers total. With pistons moving in alternating opposition (180° crankshaft offset), each chamber fires sequentially every 180° of crankshaft rotation. The result is four power strokes per complete 720° crankshaft cycle, compared to two power strokes in a conventional two-cylinder four-stroke engine of identical displacement. The engine delivers the same power output as a four-cylinder engine from a two-cylinder block.

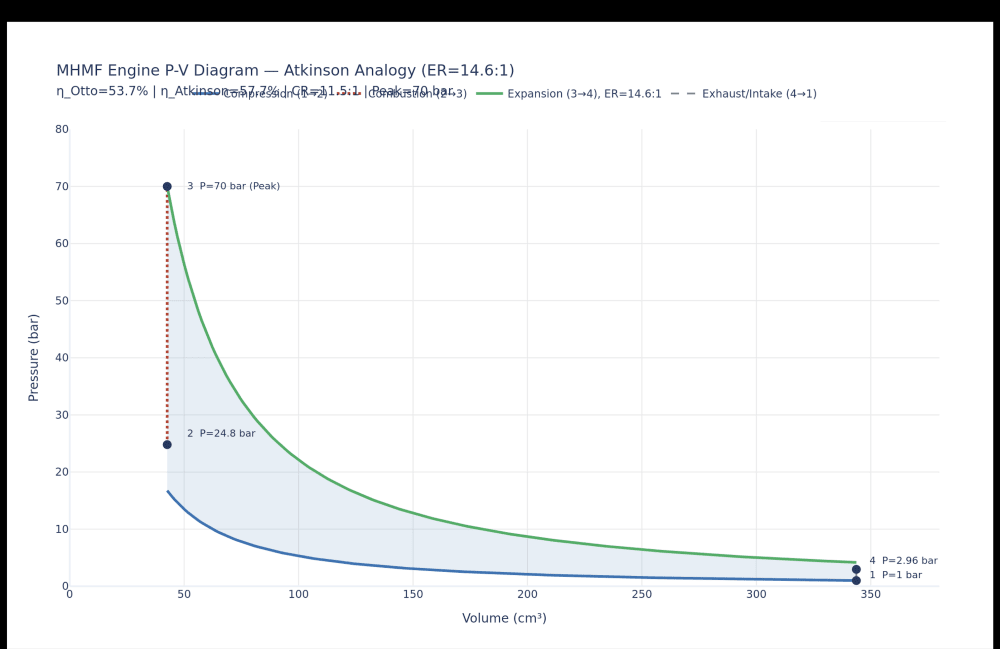

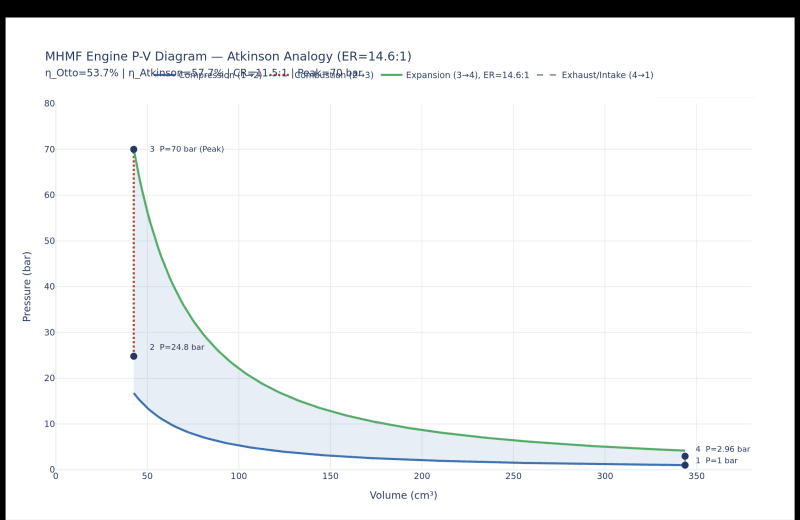

The core thermodynamic innovation is direct energy coupling. When the upper chamber fires and pushes the piston downward, the lower chamber is simultaneously being compressed. Combustion expansion energy directly drives the opposing compression stroke through the shared piston, reducing the net work the crankshaft must supply for compression. This coupling, combined with an asymmetric expansion strategy, produces a theoretical Atkinson-analogy thermal efficiency of 57.7%, compared to approximately 30% for a conventional naturally-aspirated spark-ignition engine.

No prior production engine combines all four of the following: (1) active combustion on both faces of a single piston within a four-stroke cycle; (2) an alternating multi-cylinder strategy in which each power stroke supplements compression in the opposing chamber; (3) four-chamber operation from two cylinders; and (4) compatibility with carbon-free fuels including ammonia (NH₃) enabled by the elevated compression ratio and operating temperatures achievable in the reduced geometric envelope.

The MHMF engine can to be manufactured using the same foundational processes as conventional engines. Where the engine block uses standard casting or additive manufacturing for internal gallery complexity, piston by closed-die forging. No exotic materials or processes are required. A hybrid manufacturing strategy combining domestic CNC precision machining with offshore casting enables cost-effective prototype development.

The MHMF engine targets three high-value markets. First, plug-in hybrid electric vehicles (PHEVs), where a compact 1.2-liter MHMF unit can replace a conventional 2.4-liter four-cylinder engine as an auxiliary power unit, reducing mass and package volume while maintaining power output. Second, long-endurance UAVs requiring a lightweight range-extender capable of multi-hour continuous operation. Third, high-performance automotive applications where power-to-weight ratio is the primary design driver. As global EV adoption faces headwinds from battery supply constraints, the MHMF engine offers an immediate-impact pathway to dramatically higher ICE efficiency without requiring new fuel infrastructure and positions the internal combustion engine as a credible long-term contributor to sustainable transportation.
