Traditional soil analysis requires collecting samples and sending them to a lab, often causing delays of up to two weeks before farmers get results — by which time the optimal planting window may have passed. Our IoT Soil Analysis Device eliminates this delay by delivering real-time soil health data and crop recommendations directly in the field.

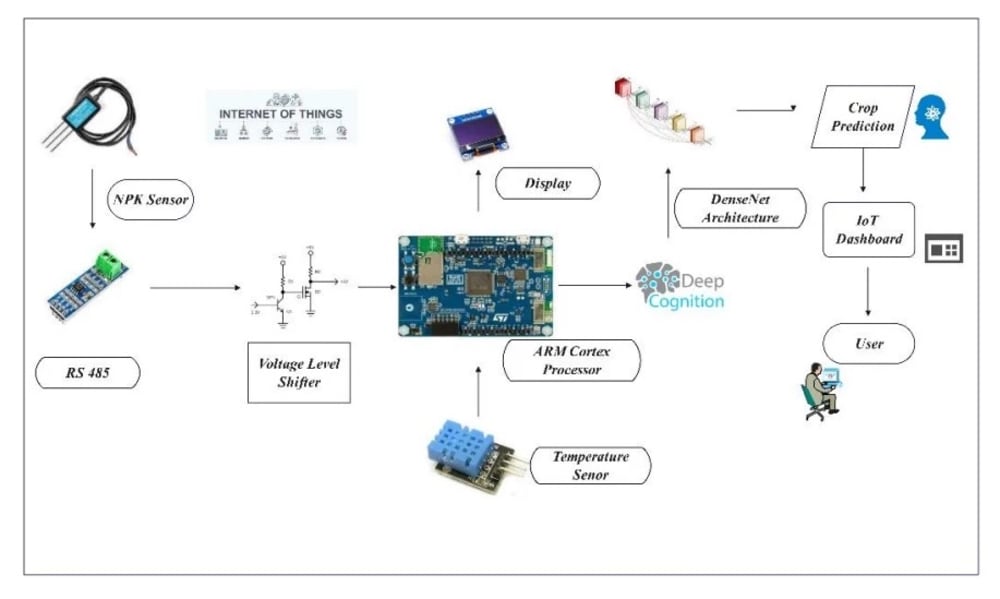

The device integrates an NPK sensor (nitrogen, phosphorus, potassium), along with pH, moisture, temperature, and electrical conductivity sensors, to build a complete picture of soil fertility. An ARM Cortex-M4 based microcontroller (STM32L475VG, on a B-L475E-IOT01A Discovery kit) acquires this sensor data via RS-485 and a 5V-to-3.3V voltage level shifter, then transmits it wirelessly (Wi-Fi/BLE) to a cloud platform for processing and long-term storage.

On the cloud side, machine learning models — including a DenseNet-based deep learning architecture, Random Forest, and Gradient Boosting — analyze the sensor data alongside historical crop yield and environmental datasets to recommend the most suitable crop for the tested soil. In our validation testing across 5,200 data points (3,640 training / 780 validation / 780 test), the system achieved over 90% training accuracy and 83% validation accuracy compared against traditional laboratory soil analysis.

Farmers access all of this through an intuitive mobile/web dashboard that displays live soil parameters, crop predictions, and real-time alerts — for example, flagging nutrient deficiencies or recommending irrigation schedule changes based on moisture trends. The system also incorporates a feedback loop: farmers can report actual crop performance and yield outcomes, which continuously retrains and improves the prediction model over time.

The device was field-tested across multiple agricultural landscapes with varying soil profiles, crops, and environmental conditions, with sensor readings cross-validated against manual laboratory soil tests to confirm calibration accuracy.

By replacing a slow, centralized, lab-dependent workflow with a low-cost, portable, real-time device, this technology helps farmers make faster, more informed planting decisions — improving yields, reducing wasted fertilizer/water inputs, and supporting more sustainable farming practices. A complete patent specification for this invention has also been filed (title: "IoT Soil Analysis Device for Optimal Crop Selection").
