1. Introduction & Background

Traditional energy harvesting relies on rotary generators, forcing kinetic energy into rotational forms requiring heavy gearboxes. Our Linear Shaft Generator bypasses these bottlenecks, converting kinetic motion directly into linear magnetic flux to significantly reduce weight, maintenance, and mechanical wear.

1.1 The Genesis: Disrupting EV Powertrains

Originally conceived to disrupt Electric Vehicle (EV) powertrains by conceptually "unwinding" the heavy rotary stator into a modular linear track, our goal was maximizing torque density and overcoming spatial constraints. Because induction is bidirectional, this exact architecture is perfectly reversed here to harvest energy from massive, low-speed sources like wind turbines and ocean waves.

2. Core Innovation: The Linear Shaft Mechanism

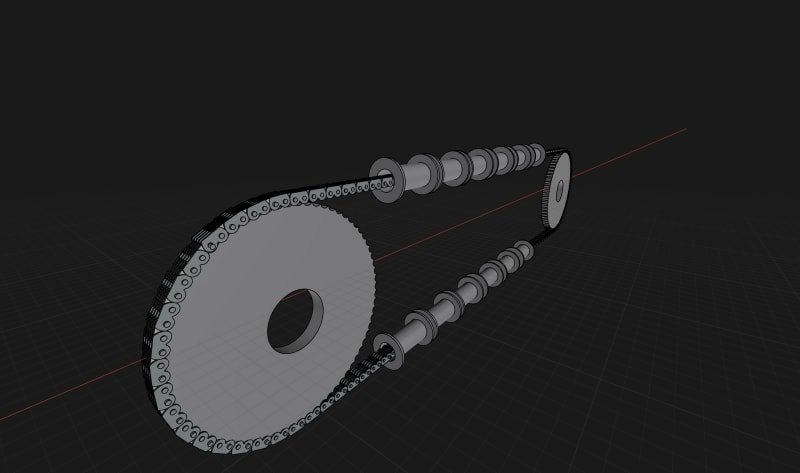

Unlike tubular motors with rigid shafts, our design utilizes a continuous, flexible transmission medium. This continuous loop is highly adaptable for both continuous (wind towers) and reciprocating (wave pendulums) energy harvesting.

3. Why "Silent Chain" (Inverted Tooth Chain)?

Standard chains or belts are inadequate for our transmission loop due to vibration and stretching. We utilize a Silent Chain for three reasons:

• Elimination of Chordal Effect: The inverted tooth design engages sprockets tangentially like a gear, preventing microscopic vibrations that would shatter delicate magnets against stators.

• Zero Stretch: High-tensile steel plates provide absolute rigidity against dynamic loads, maintaining perfect magnetic phase spacing.

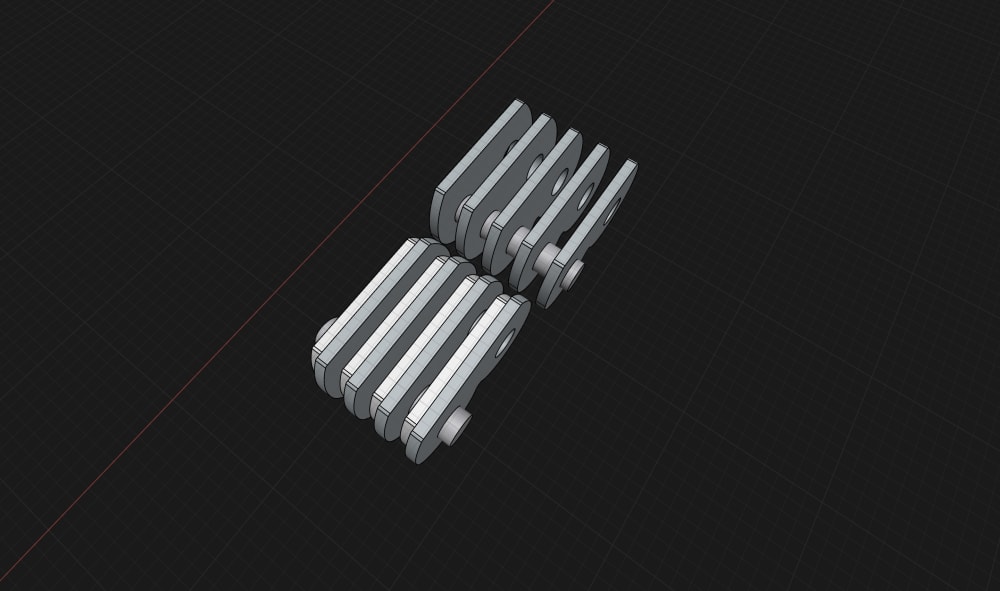

• Modular Integration: The stacked flat-plate architecture physically houses our "Isolated Magnetic Links" without altering the mechanical footprint.

4. The "Stress-Isolated" Magnetic Breakthrough

Protecting brittle Neodymium magnets from mechanical stress is achieved via a dual-link isolation strategy:

• Structural Path: High-tensile steel carrier links absorb all primary tension and radial loads.

• Magnetic Path: Neodymium magnets are nested adjacent to the carriers with micro-tolerances. They never bear mechanical tension or touch the sprocket teeth, ensuring strict air-gaps and zero frictional wear.

5. Conclusion & Applications

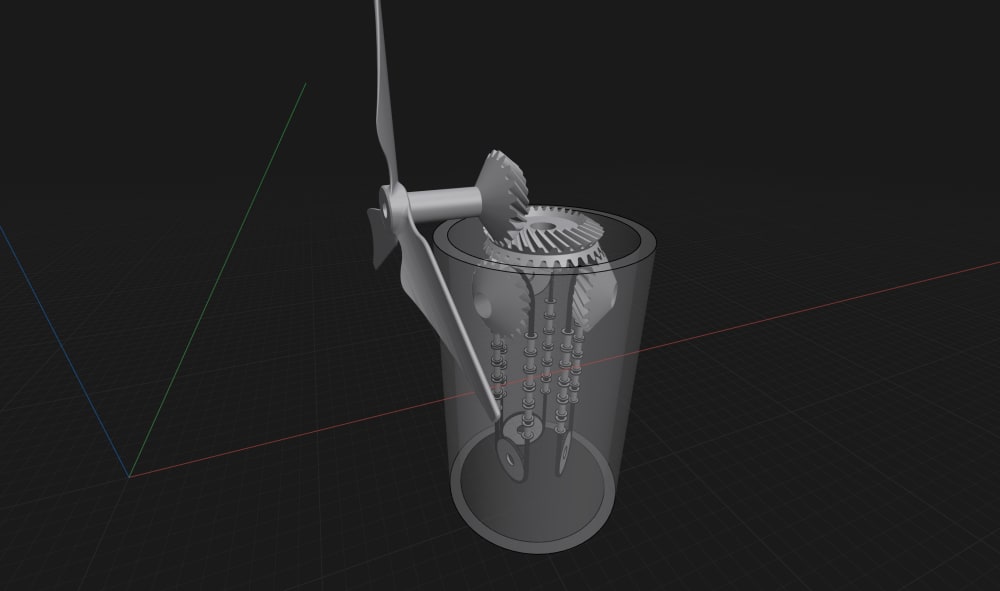

This modular architecture forms the core Power-Take-Off for projects like the Multi-Link Linear Induction Wind Turbine and ocean IoT harvesters. Originating from advanced EV propulsion, it represents a paradigm shift in converting low-speed, high-torque kinetic energy directly into clean, scalable electricity.
