Electromagnetic microwave cracking is a non‑thermal successor to steam cracking, designed to replace the world’s most energy‑intensive chemical process with a governed, field‑driven architecture. Steam cracking consumes 850–900°C furnace heat to cleave C–C bonds, accounting for 1–2% of global CO₂ emissions and suffering from intrinsic limitations: refractory degradation, coke deposition, fixed selectivity, and unavoidable thermal inefficiency. As the attached document states, steam cracking “remains thermodynamically inefficient by design: the majority of heat input drives bulk gas temperature rather than the targeted bond chemistry.”

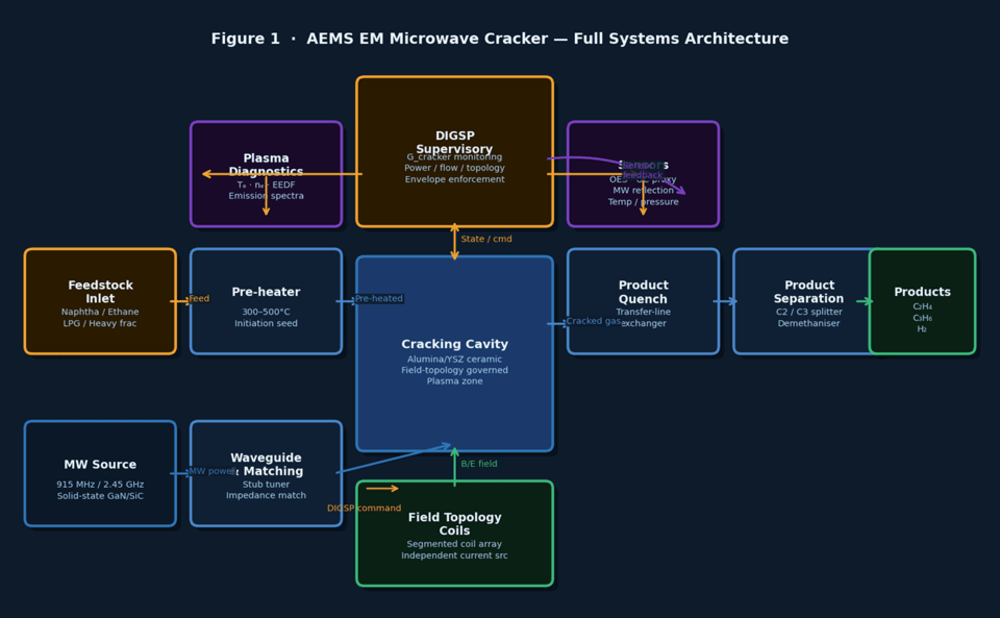

The AEMS electromagnetic cracking architecture replaces combustion‑driven thermal activation with structured microwave excitation at 915 MHz, delivering energy directly into molecular vibrational and rotational modes. This enables selective bond destabilisation at bulk temperatures of 500–700°C — far below the thermal threshold — and introduces plasma‑assisted fragmentation as the primary cracking mechanism. The system integrates five subsystems: a solid‑state microwave source, a waveguide and matching network, an alumina/YSZ cracking cavity, a segmented field‑topology coil array, and the DIGSP supervisory architecture governing the cracking Governance Ratio (G_cracker).

Mechanistic Innovation

The architecture’s core innovation is field‑governed chemistry. Instead of heating the entire gas mixture to 900°C, the microwave field couples directly to target molecular modes, reducing effective activation energy through differential polarisability. Plasma electrons at 5–20 eV drive electron‑impact dissociation while the bulk gas remains hundreds of degrees cooler. This non‑equilibrium condition (T_e >> T_gas) is maintained by DIGSP, which modulates power, field topology, and cavity impedance in real time.

The cavity operates in controlled TE/TM modes, with field intensity peaks engineered at the reaction zone. The coil array shapes the field distribution, enabling selectivity tuning: for ethane, favouring C–H dehydrogenation over methane formation; for naphtha, favouring light olefin pathways over aromatic precursors. As the document notes, this architecture “selectively destabilises C–C and C–H bonds at bulk temperatures of 500–700°C — substantially below conventional cracking thresholds.”

Projected Advantages

Theoretical projections indicate:

• 40–60% reduction in energy per tonne of olefin
• Elimination of direct CO₂ emissions from the cracking step
• Ethylene selectivity improvements across ethane, LPG, and naphtha
• 90–99% reduction in coke formation
• Feedstock‑agnostic operation
• Slot‑in compatibility with existing downstream separation trains

Lower bulk temperatures suppress polyaromatisation and eliminate heterogeneous coking, enabling continuous operation without decoking cycles. Solid‑state microwave sources provide rapid modulation, long lifetime, and precise control unavailable in combustion systems.

Integration and Deployment

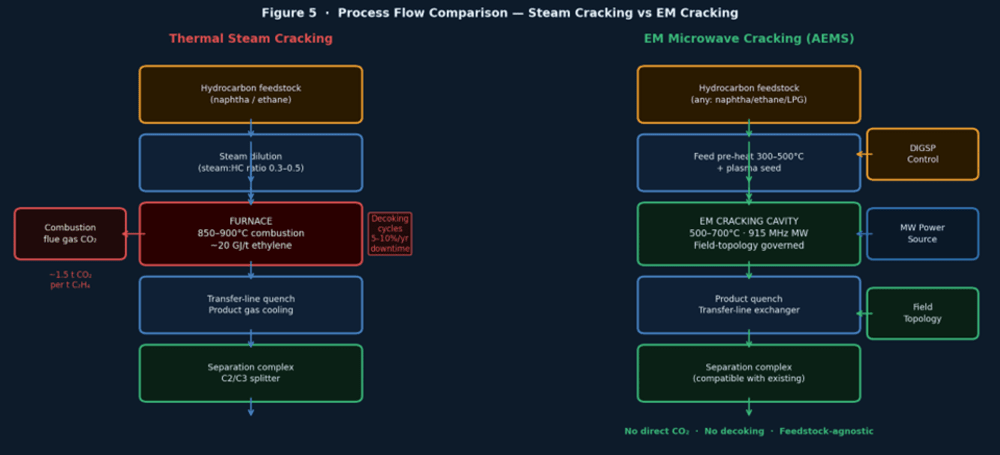

The architecture is designed as a drop‑in replacement for furnace trains in existing cracking complexes. Product quench, compression, and separation remain unchanged aside from modified inlet conditions. This ensures minimal disruption to established petrochemical infrastructure while enabling a step‑change reduction in energy intensity and emissions.

Impact

Electromagnetic microwave cracking offers a credible pathway to decarbonizing one of the world’s largest industrial emitters. By replacing thermal activation with governed field‑topology chemistry, the architecture introduces a new class of non‑thermal cracking systems capable of reshaping global olefin production. All performance claims are theoretical and require experimental validation, but the mechanistic basis and projected advantages position this architecture as a transformative successor to steam cracking.
