FG‑RIC is a field‑governed ion‑transport architecture designed to extract uranium, lithium, strontium, and rare‑earth elements directly from seawater using shaped electromagnetic fields. Unlike passive amidoxime adsorption — which is diffusion‑limited, slow, and difficult to scale — FG‑RIC actively drives target ions toward capture surfaces, collapsing the diffusion barrier and enabling continuous, programmable extraction within existing desalination infrastructure. As the document states, FG‑RIC “applies shaped electromagnetic fields to actively govern ion transport in bulk liquid media, collapsing diffusion barriers and enabling selective, programmable extraction without chemical additives.”

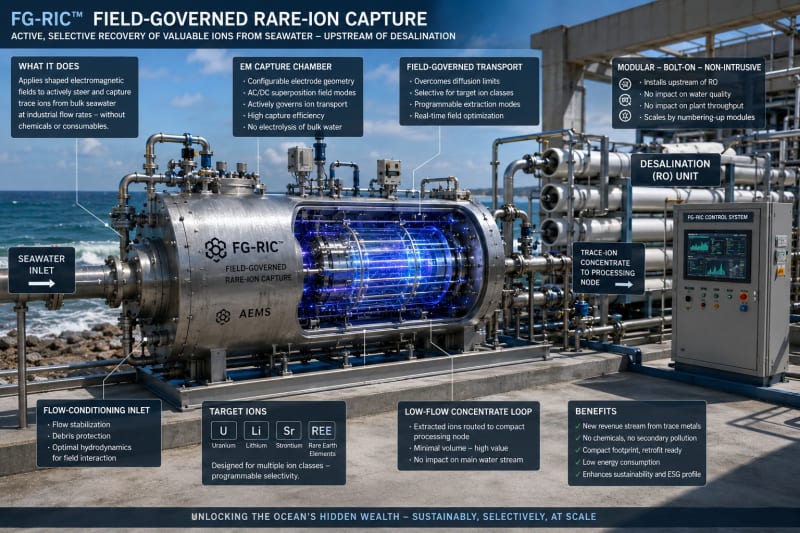

The system is a compact inline module comprising three functional zones: a flow‑conditioning inlet, an electromagnetic capture chamber, and a low‑flow concentrate take‑off loop feeding a processing node. Installed upstream of reverse osmosis, FG‑RIC imposes zero interference on water quality or throughput while generating revenue‑additive trace‑metal streams.

Mechanistic Innovation

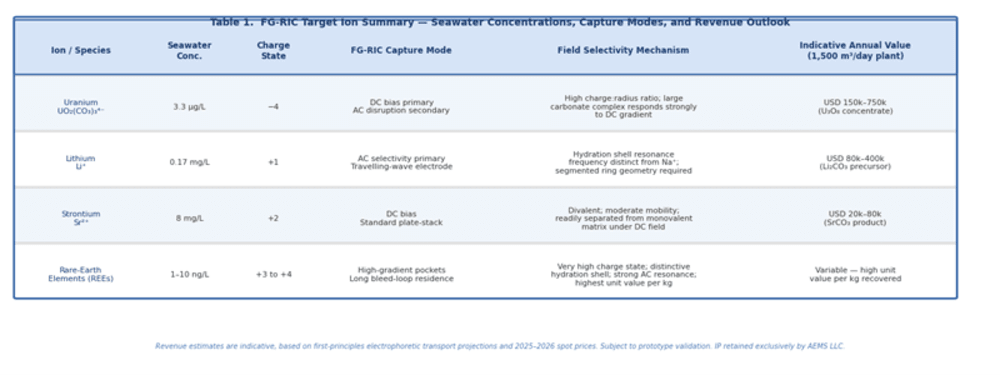

FG‑RIC replaces passive diffusion with electrophoretic drift, using shaped DC and AC‑superposed fields to impose drift velocities orders of magnitude higher than Brownian motion. Target ions such as UO₂(CO₃)₃⁴⁻ respond strongly due to high charge and large hydration shells. The architecture exploits four principles:

• Shaped gradient fields concentrate drift vectors toward capture surfaces.
• AC/DC superposition disrupts boundary‑layer shielding and biofilm formation.
• High‑gradient micro‑topography creates ion‑trap pockets for retention.
• Voltage constraints below electrolysis threshold prevent chlorine or hydrogen generation.

The document notes that “a sufficiently shaped and stabilised field gradient can impose a drift velocity on a target ion class that exceeds its thermal diffusion velocity by orders of magnitude,” enabling extraction at seawater dilution without chemical addition.

System Architecture

The flow‑conditioning zone stabilises velocity profiles and prevents stray electrode interactions.
The EM capture chamber houses one of three electrode geometries:

• Coaxial — high gradient, low‑to‑medium flow
• Plate‑stack — high throughput, large capture area
• Segmented ring — travelling‑wave sequences for lithium and REE selectivity

Field modes combine 0.3–1.1 V DC bias with 10 Hz–1 MHz AC excitation. Ion‑class presets allow switching between uranium, lithium, and REE recovery without hardware changes.

The concentrate take‑off loop withdraws only a tiny fraction of the total flow, ensuring that the host desalination plant’s throughput and water quality remain unchanged.

FG‑RIC is designed as a bolt‑on module for coastal desalination plants, industrial seawater intakes, and offshore platforms. It requires no modification to existing infrastructure and introduces no chemicals into the water stream. Because it operates upstream of reverse osmosis, it leverages the enormous volumes of seawater already being processed globally, converting an otherwise untapped resource into a source of strategic materials.

The architecture is energy‑efficient, using field‑governance rather than electrolysis. Power consumption scales with field strength, not with extracted mass, enabling economically viable recovery of ions present at parts‑per‑billion concentrations. FG‑RIC is also modular: multiple chambers can be stacked or arrayed to increase throughput or target different ions simultaneously.
