The EM UPGP architecture is a new model for harvesting tidal and ocean current energy using simple, robust subsea power pods instead of the mechanically complex turbines used in offshore wind and legacy tidal systems. It applies proven permanent magnet generation inside a sealed underwater plant, eliminating the pitch systems, yaw drives, gearboxes, hydraulic actuators, and tower structures that dominate the cost and failure modes of existing marine energy technologies. By moving the entire system below the wave base and replacing mechanical control with electromagnetic torque governance, EM UPGPs deliver predictable, low maintenance, grid responsive renewable power at a cost level that finally makes marine energy commercially viable.

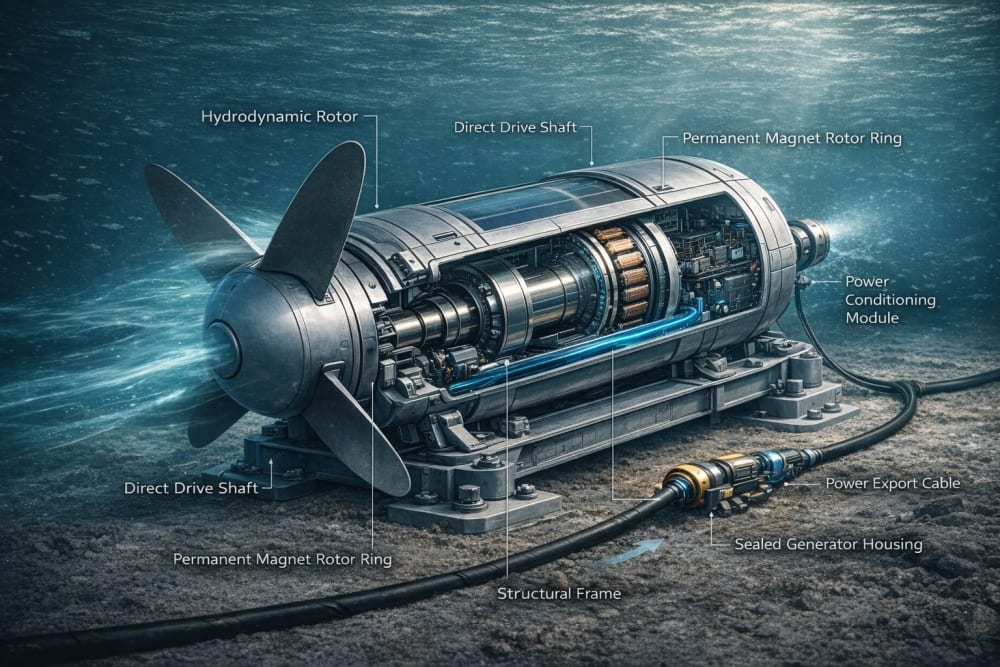

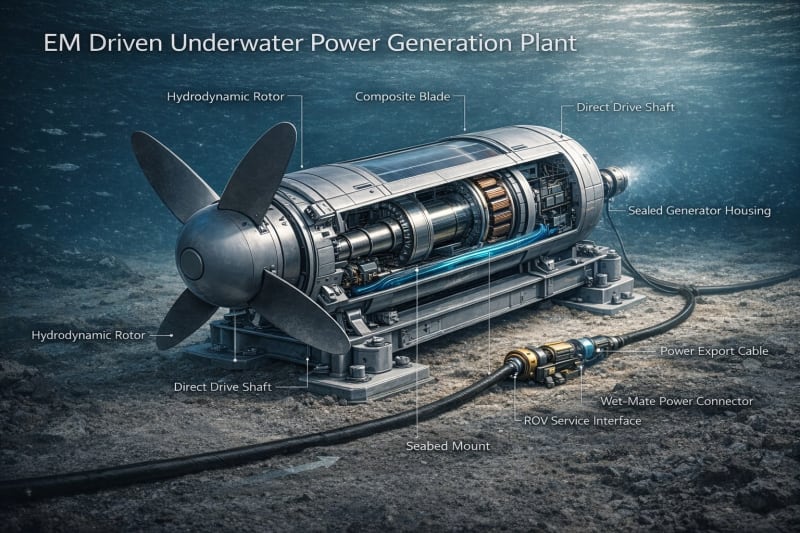

Each EM UPGP is a fully self contained subsea pod. Inside the pod is a slow turning hydrodynamic rotor, a direct drive permanent magnet generator, power electronics, and an autonomous control system. The pod mounts on a simple seabed interface and connects to the array through wet mate connectors. Installation, recovery, and replacement are performed entirely by standard remotely operated vehicles. No jack up vessels, crane ships, or weather dependent surface operations are required. A pod swap takes four to six hours instead of the multi day operations required for conventional tidal turbines.

Electromagnetic governance replaces mechanical control. Instead of adjusting blade pitch or yaw, the generator’s electromagnetic torque is modulated electronically. This allows millisecond scale response to grid frequency changes, enabling primary frequency support that mechanical systems cannot provide. Overspeed protection is achieved through electromagnetic braking rather than mechanical brakes. Bidirectional blade profiles eliminate the need for yaw drives, allowing the rotor to operate through the full tidal cycle without reorientation.

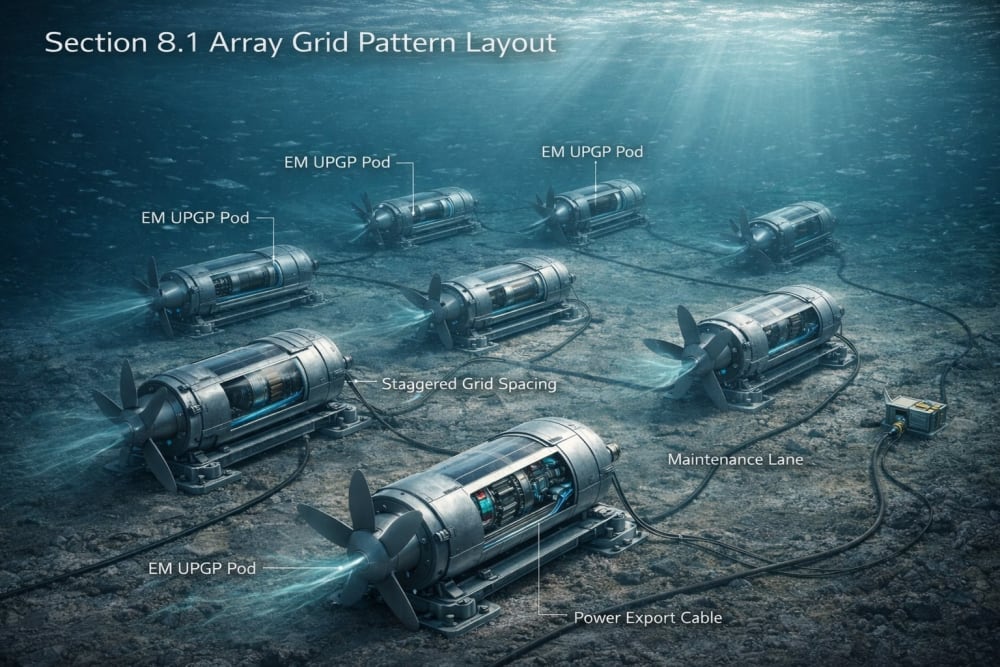

Each pod is an autonomous, grid aware node. Through a subsea mesh network, pods coordinate to balance load, share stress, isolate faults, and maintain stable array output even when individual units are offline. This distributed intelligence model eliminates the need for centralised control and allows the array to behave as a single coherent power plant.

A reference two megawatt unit defines realistic mass, cost, and performance parameters. The rotor is sixteen to eighteen metres in diameter and turns at six to twelve revolutions per minute. The generator operates at ninety two to ninety six percent efficiency. The sealed pod weighs roughly one hundred fifty to one hundred eighty tonnes and is designed for a twenty five year service life with scheduled ROV inspections and pod swaps. At array scale, a fifty unit, one hundred megawatt installation achieves a modelled levelised cost of energy of roughly forty four dollars per megawatt hour, representing a forty to fifty percent cost advantage over offshore wind and a seventy five to eighty percent advantage over existing tidal systems.

The EM UPGP architecture is also the primary power source for the EM Driven Seawater Refinery, enabling a fully self powered coastal resource system with no external grid dependency. It is a practical, scalable, low maintenance marine energy platform built for commercial deployment rather than demonstration scale experimentation.
