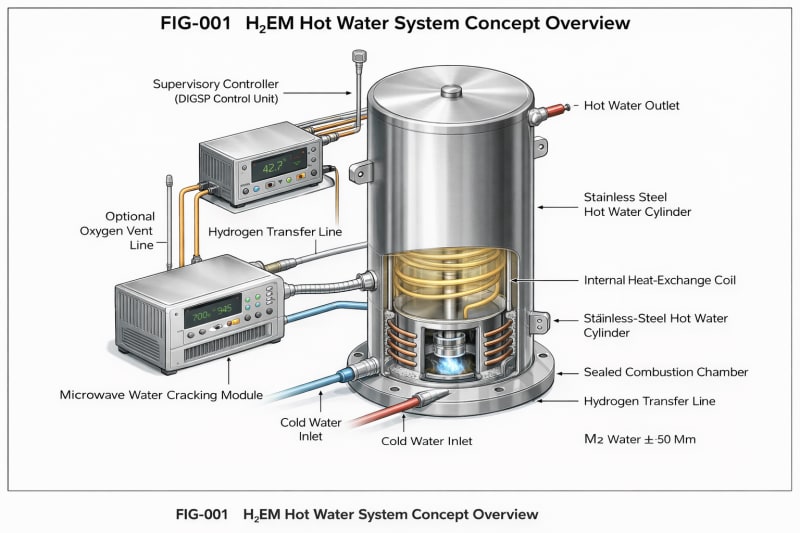

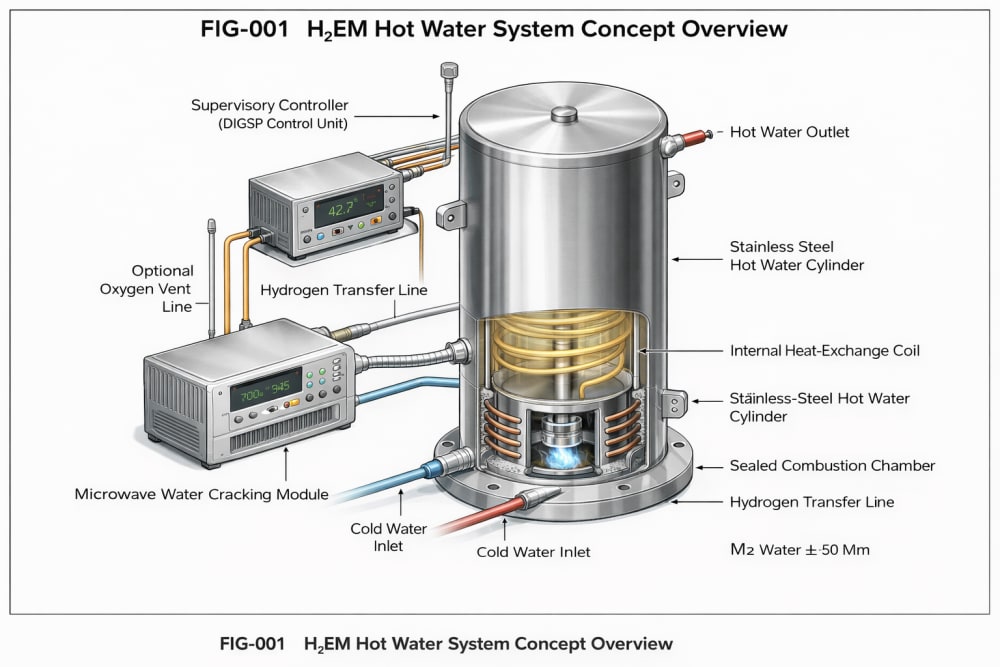

The H₂EM Hot Water System is a hydrogen‑powered thermal appliance that replaces both stored‑gas systems and resistive electric cylinders with an actively governed, electromagnetically confined hydrogen burner fed by on‑demand microwave water cracking. The architecture removes the two structural risks that have historically prevented domestic hydrogen systems from scaling: stored hydrogen mass and mixed hydrogen‑oxygen generation. Instead, hydrogen is produced only at the moment of use, in pure form, and combusted inside a field‑gated burner that prevents ignition anywhere outside the authorised zone.

The system is motivated by the inefficiency of conventional electric cylinders, which lose 1–2.5 kWh per day through standing losses and account for 25–35% of household electricity consumption in New Zealand and Australia. Gas instantaneous systems avoid storage losses but introduce CO₂ and NOₓ emissions, require pressurised infrastructure, and carry regulatory overhead. Heat pumps improve efficiency but degrade in cold climates and add mechanical complexity. Legacy hydrogen burners are unsafe because they generate mixed gas streams that are detonation‑prone. The H₂EM system avoids all of these constraints.

Hydrogen is generated through a microwave cracking module using a 2.45 GHz magnetron feeding a resonant cavity. At 800 W and 75% coupling efficiency, the module produces roughly 0.8 SLPM of pure hydrogen, enough for 1.5–2.5 kW of thermal output. No hydrogen exists unless both the magnetron and the solenoid valve are energised, eliminating stored‑fuel hazards. The burner uses electromagnetic confinement to define a narrow ignition zone at the throat and a suppression zone upstream. Bulk coils generate 0.02–0.08 T fields, while NdFeB inserts provide 1–3 T localised gradients that sharpen the boundary and prevent flamefront drift or flashback. Plasma‑locked ignition ensures that combustion only occurs when a controlled plasma kernel is present.

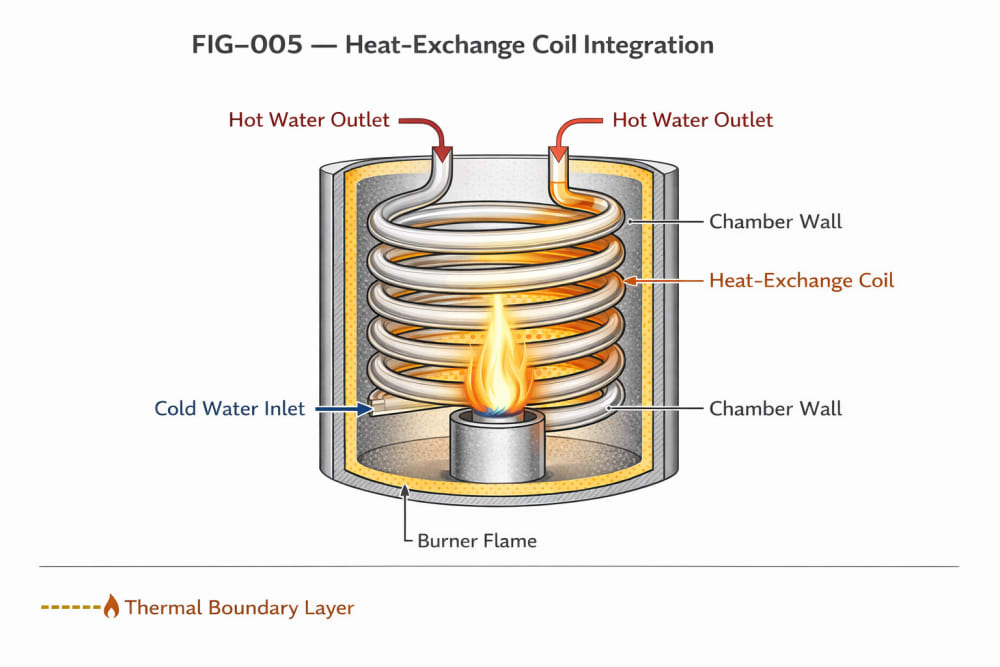

Heat is transferred through a stainless or copper helical coil inside a sealed combustion chamber. With heat‑exchange efficiency of 85–92%, the system delivers instantaneous hot water without the standby losses of electric cylinders. A supervisory controller running closed‑loop PID governs flame ionisation, hydrogen flow, coil temperature, cylinder temperature, and EM field strength at 100 Hz. Any boundary violation triggers ordered shutdown: hydrogen valve closes first, microwave power drops, and coil current ramps down.

Safety is implemented in three independent layers. Layer 1 is passive: NdFeB inserts maintain a suppression field even with no power, and the hydrogen valve is normally closed. Layer 2 is the supervisory controller enforcing operational limits. Layer 3 is a hardwired interlock chain that cuts 24 V power within 10 ms. No single failure mode can produce uncontrolled ignition.

The system is buildable with off‑the‑shelf components and follows a five‑stage TRL pathway from subsystem validation to field trials. Prototype cost in New Zealand is estimated at $1.4k–$3.0k. The architecture scales from domestic cylinders to commercial plant and provides a zero‑emissions, no‑storage, actively governed alternative to both electric and gas water heating.
