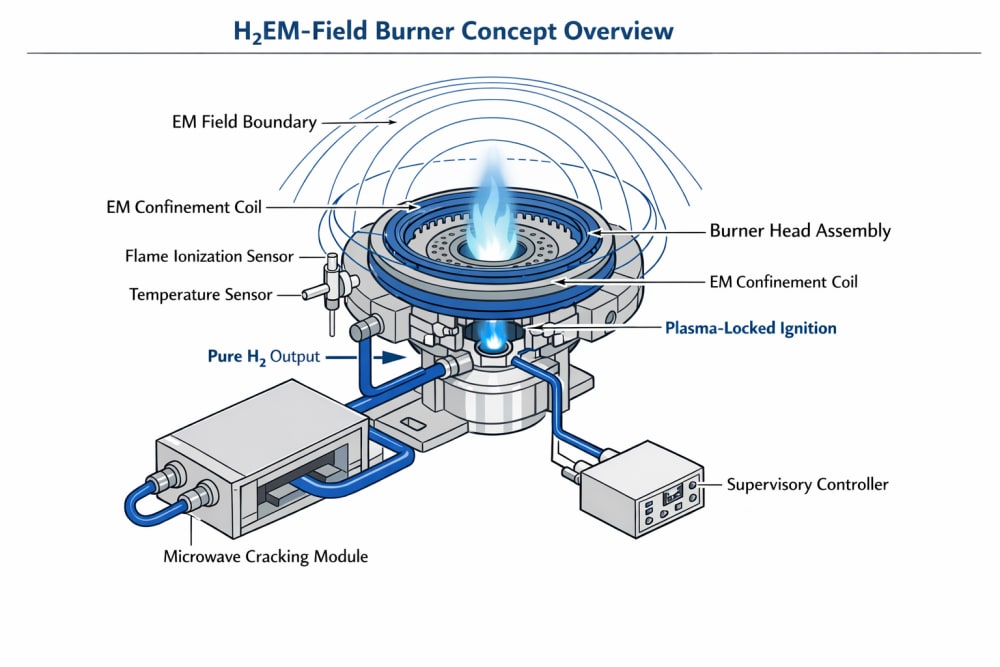

The H₂EM‑Field Water Fuel Burner is a governed‑hydrogen thermal system that replaces the instability of conventional hydrogen combustion with a field‑bounded, plasma‑initiated, actively stabilised flame. Traditional hydrogen burners suffer from mixed‑gas generation, flashback, high diffusivity, and the absence of any mechanism to confine or shape the flame. The H₂EM architecture resolves these limitations by integrating on‑demand hydrogen generation, electromagnetic confinement, plasma‑locked ignition, and predictive supervisory control into a single burner module.

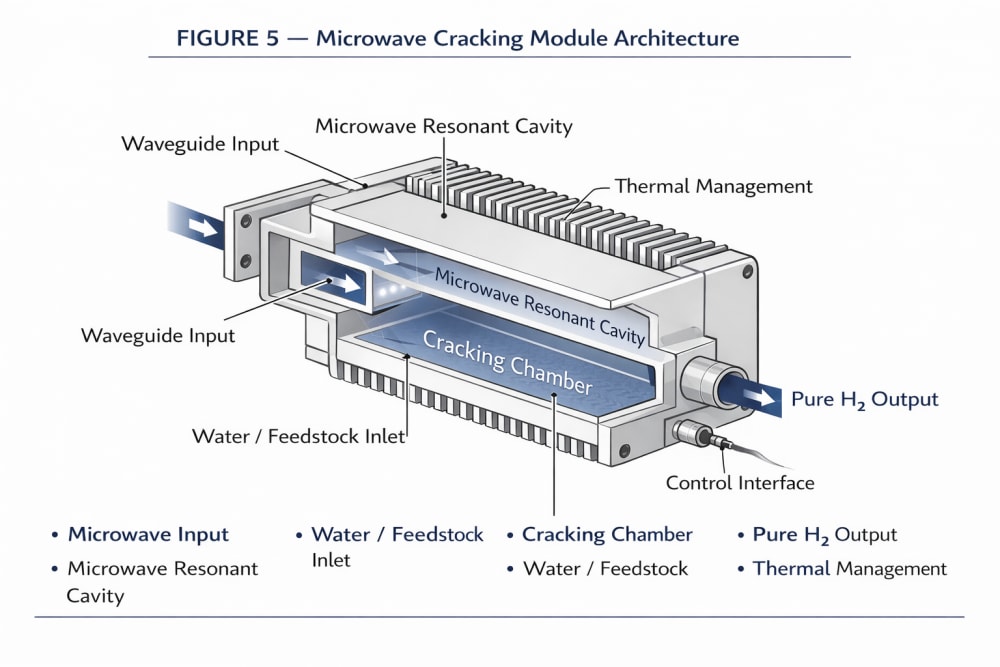

Hydrogen is produced only at the moment of use through microwave plasma cracking of water. This eliminates stored hydrogen mass, removes oxygen from the generation pathway, and avoids the detonation‑prone mixtures produced by legacy electrolysis systems. The cracking module operates at modest microwave power and produces a pure hydrogen stream with stable flow characteristics independent of water purity or mineral content.

Ignition is achieved through a plasma‑locked kernel formed at the burner throat. The plasma kernel provides a repeatable, humidity‑independent initiation event and transitions smoothly into a stable flamefront. Electromagnetic shaping coils define two spatial zones: an ignition zone where kernel growth is energetically favourable, and a suppression zone where radical formation is inhibited. This prevents upstream ignition, flashback, and uncontrolled flame migration.

A multi‑scale magnetic architecture combines low‑power bulk confinement fields with compact high‑field inserts positioned at the burner throat. Bulk fields in the 0.02–0.08 T range define the overall geometry, while 1–3 T high‑field inserts sharpen the ignition boundary, increase electron cyclotron frequency, and strengthen suppression. These inserts do not increase thermal output; instead, they expand the stable operating envelope by improving kernel confinement, reducing flamefront drift, and increasing resistance to lift‑off and collapse during rapid flow transients.

Flame stability is governed by the balance between field‑modified laminar flame speed and local flow velocity. Electromagnetic shaping increases the effective flame speed, enabling stable ultralean combustion and improving thermal efficiency. The flame becomes a governed structure rather than a free‑running chemical reaction.

A supervisory controller enforces the operational envelope using closed‑loop PID control. It monitors flame ionisation, hydrogen flow, electromagnetic field strength, burner temperature, and cracking module output. The controller adjusts coil current, microwave power, and flow rate to maintain stability. Fault conditions such as plasma dropout, coil degradation, over‑temperature, or hydrogen flow anomalies trigger controlled shutdown.

Safety is embedded in the architecture rather than dependent on operator behaviour. On‑demand hydrogen generation eliminates stored fuel. Electromagnetic leak detection identifies dielectric‑shift signatures before ignition occurs. Suppression volumes prevent ignition in manifolds and service bays. Automatic shutdown thresholds ensure safe behaviour under all credible fault modes.

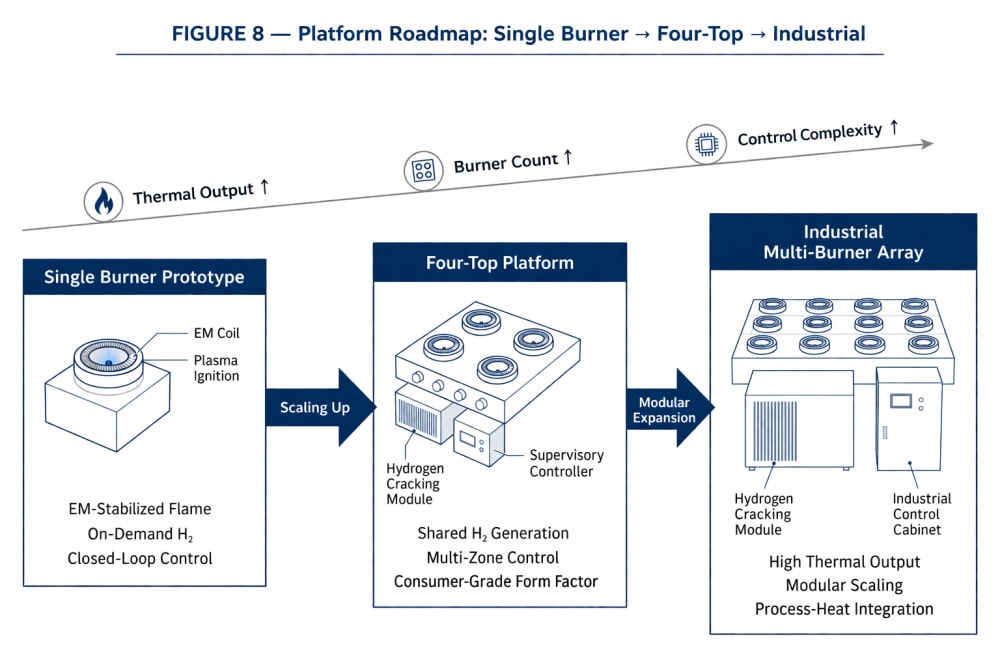

The architecture scales from a single‑burner pot cooker to multi‑burner domestic appliances and further into industrial ovens, boilers, and process‑heat systems. The same field‑bounded combustion principles remain valid across larger burner diameters and higher hydrogen flow rates. The H₂EM‑Field Burner provides a pathway to clean, high‑performance hydrogen thermal systems without the instability and hazards of legacy designs.
