The battery industry has identified improvements needed to accelerate electric vehicle adoption, including faster charging, lower cost, better range, longer life, improved safety, and reduced cold-weather power loss. Achieving those gains depends on transformative battery thermal management.

Battery heat removal can only be increased in two fundamental ways: by making the battery surface colder or by reducing battery thermal resistance.

Current approaches focus mainly on the first path. They improve cooling by making the surface colder, but that also increases the temperature difference between surface and core. That accelerates battery degradation, reduces safety, and drives battery oversizing and cost.

In many cases, core-to-surface temperature-difference limits are being approached or exceeded, so further increases increasingly trade cooling for more degradation, oversizing, higher cost, and reduced safety. That is counterproductive to transformative battery thermal management. Reducing battery thermal resistance becomes the remaining fundamental lever.

This invention is novel because it targets that lever directly. Rather than relying on more aggressive external cooling, it structurally reengineers the battery cell to move heat more effectively from the interior to the cooling interface.

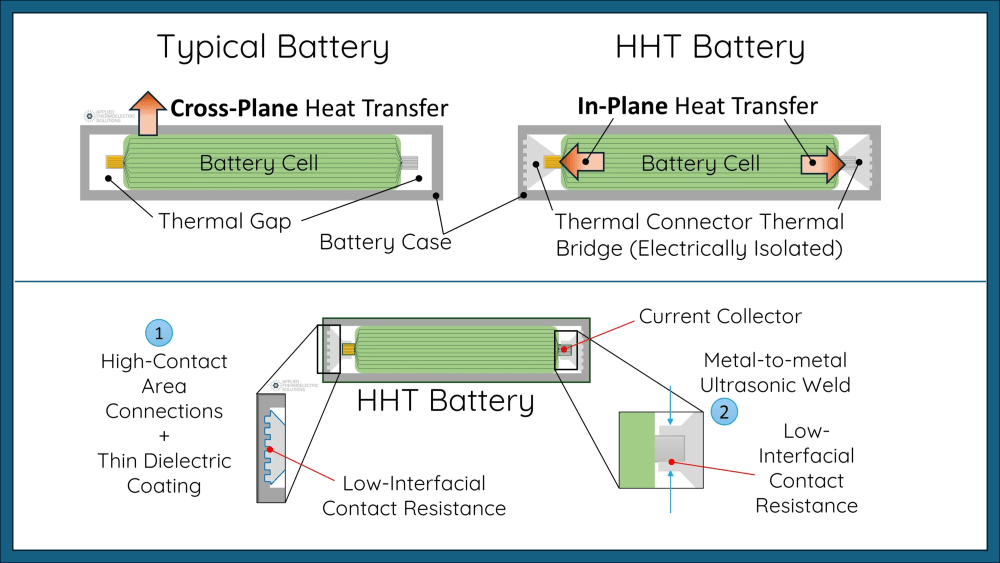

Applied Thermoelectric Solutions refers to this architecture as ParaThermic® High-Heat-Transfer (HHT) battery technology. The approach uses the battery’s higher-conductivity internal heat-transfer path, geometry optimized for that path, thermal bridges, and reduced interface losses to make the battery fundamentally easier to cool.

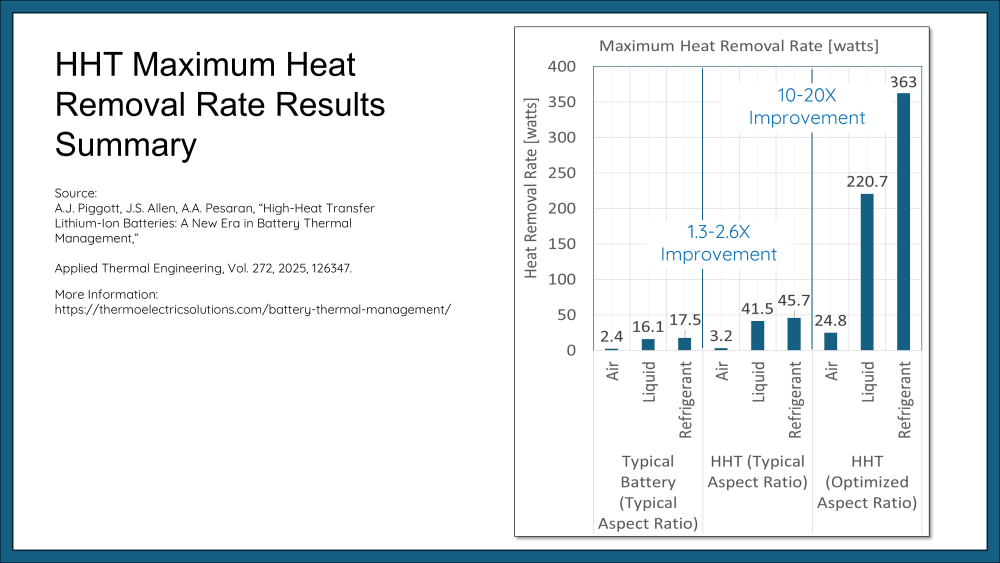

HHT battery designs showed heat removal capability of up to 20x compared to a typical battery.

Those results translate into battery capabilities that conventional architectures cannot support. Modeling indicates that HHT batteries are thermally capable of a 3.5-minute fast-charge equivalent, compared with greater than 15 minutes for a typical battery.

The same thermal-response advantage enables dramatically faster preheating, with modeled battery warm-up in as little as 6 minutes compared with 80 minutes for a comparable typical battery. That improvement could go a long way toward reducing cold-weather power loss.

The architecture has implications for safety, battery life, and cost. Modeling indicates the potential for thermal mitigation of early-onset-stage thermal runaway beyond typical battery capability. Lower temperature gradients and reduced time at elevated temperature are expected to improve battery life by at least 3× compared with a comparable typical battery.

Because battery packs are oversized to preserve required end-of-life performance, slower degradation can reduce that oversizing and lower pack cost. For a 100 kWh battery pack, the estimated savings are around $1,000.

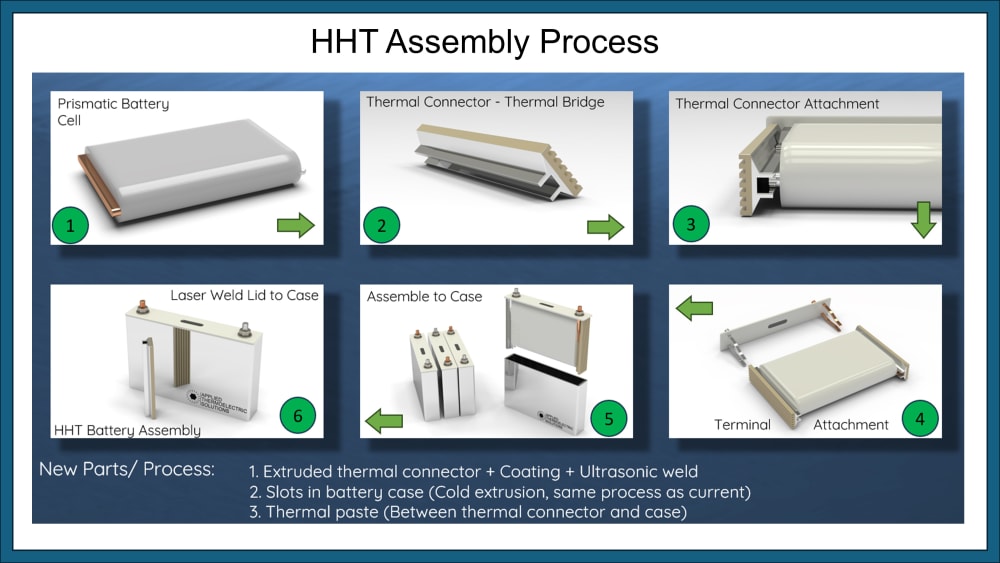

The design is also practical for manufacturing. The thermal connector elements are based on extruded and coated aluminum joined by ultrasonic welding, using commercially relevant materials and high-volume production processes. Thermal bridge prototype hardware has already been built, showing that a key portion of the architecture has progressed beyond concept and into physical implementation without requiring costly, long-lead-time chemistry changes.

The technology is supported by peer-reviewed published research, patent protection, and conference dissemination, and it has attracted interest from OEM and national-laboratory stakeholders.

By addressing the internal heat-transfer bottleneck inside the cell, ParaThermic® / HHT battery architecture opens a new path toward transforming what batteries can do.
