Industry and transportation generate enormous quantities of waste heat, steel plants exhaust gases at 400–900°C, ship engines reject 50% of fuel energy as heat, data centers operate liquid cooling loops at 60–80°C. Recovering even a fraction of this heat as electricity could offset hundreds of millions of tonnes of CO₂ annually. Conventional heat recovery systems (Rankine cycle, Stirling engines) require moving parts, lubricants, seals, and regular maintenance, making them uneconomical for distributed or remote deployment. AcoustoGen is a thermoacoustic electrical generator with zero moving parts that converts waste heat directly into electricity using acoustic pressure oscillations, with a projected operational lifespan exceeding 30 years at near-zero maintenance cost.

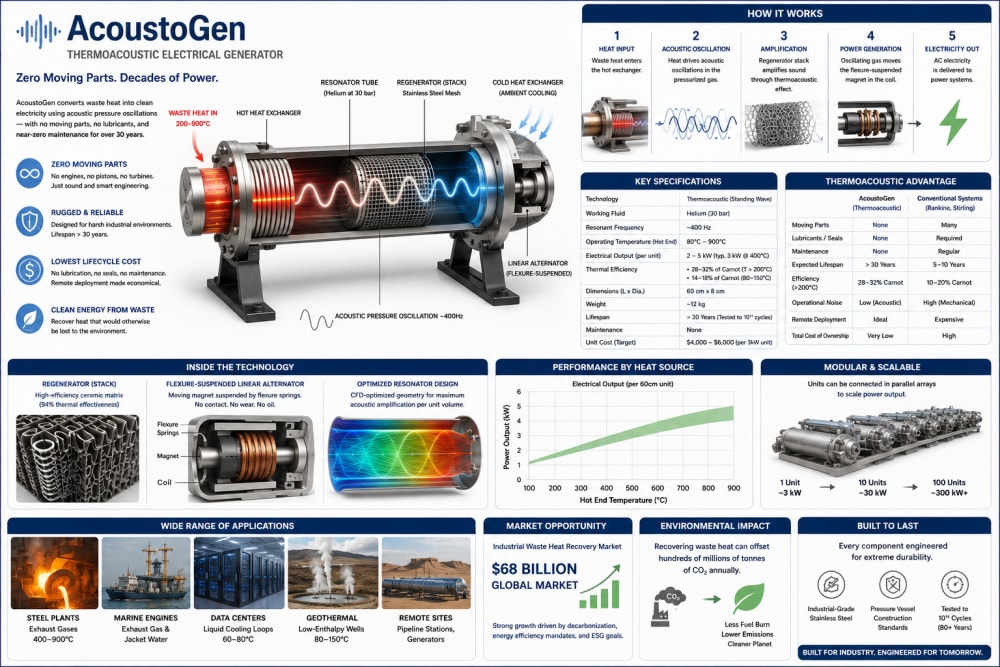

How it works: AcoustoGen exploits the thermoacoustic effect: when a steep temperature gradient is applied across a porous solid matrix (the “stack” or “regenerator”), the gas within spontaneously oscillates, acoustic power is generated from heat without any mechanical components. The device consists of a sealed resonator tube (stainless steel, 60 cm length, 8 cm diameter) filled with pressurized helium at 30 bar. At the hot end, a heat exchanger transfers waste process heat into the gas. At the cold end, ambient cooling maintains the temperature differential. The regenerator, a fine wire mesh of stainless steel, sits between them and amplifies the acoustic power through thermodynamic expansion and compression cycles.

The standing wave acoustic oscillation (resonant frequency: ~400 Hz) drives a linear alternator at the cold end: a moving magnet suspended inside a coil by flexure springs, converting acoustic displacement into AC electricity. No contact bearings, no oil, no shaft seals. The flexure spring suspension has been fatigue tested to 10^11 cycles, equivalent to 80 years of operation. Gross thermal efficiency: 28–32% of Carnot for heat sources above 200°C; 14–18% for sources in the 80–150°C range.

A single 60 cm unit generates 2–5 kW depending on heat source temperature. Units are modular and can be banked in parallel arrays for higher output.

What makes it novel: Thermoacoustic theory (Ceperley, Swift) has been studied since the 1980s, but prior devices were large, low-power laboratory instruments. AcoustoGen’s key innovations are: (1) a compact resonator geometry optimized via computational fluid dynamics to maximize acoustic amplification per unit volume; (2) a flexure suspended linear alternator that eliminates bearing wear; and (3) a ceramic regenerator matrix with 94% thermal efficiency, up from the 70–78% typical in prior art, enabling competitive power density.

Manufacturing: All components fabricated from industrial-grade stainless steel and standard electrical components. No exotic materials. Manufacturing process is equivalent to pressure vessel fabrication, well within the capability of mid-tier industrial manufacturers. Target unit cost: $4,000–$6,000 per 3 kW unit at volume.

Where it's applied: Steel and cement plants, diesel generator exhaust stacks, marine vessel engine rooms, data center cooling loops, geothermal low-enthalpy wells, and remote pipeline compressor stations.

Market potential: Industrial waste heat recovery market valued at $68B globally. The no-maintenance value proposition is particularly compelling for offshore, remote, or hazardous environments where service visits cost $10,000–$50,000 per trip.
