Betavoltaic batteries promise decades of continuous, maintenance-free power from a beta-emitting isotope. Yet today's designs are limited by how much beta ionization energy is actually captured within the diode's narrow depletion region. Our entry, the Field-Augmented P-I-N Diode Architecture (FAPDA), directly addresses this limitation.

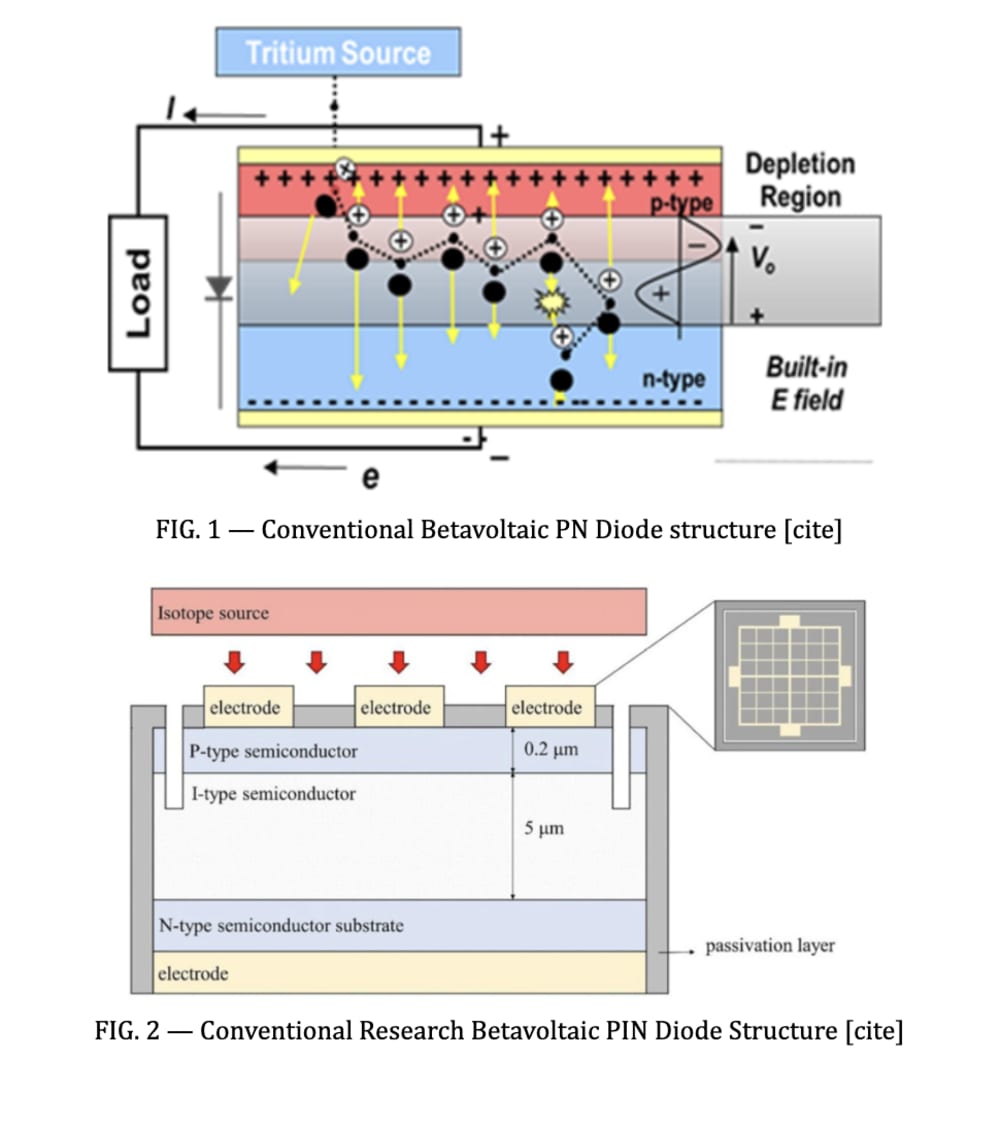

Betavoltaic batteries convert beta radiation directly into electricity, capable of operating for decades without refueling. Despite this promise, state-of-the-art devices deliver power densities far below what their nuclear fuel content theoretically permits, confining them to niche, ultra-low-power applications such as pacemakers and remote sensors. The bottleneck is not isotope availability or semiconductor quality, but device physics: conventional P-N and P-I-N junctions rely on a built-in electric field to form a depletion region (DR) too narrow to efficiently capture the electron-hole pairs (EHPs) generated by beta particles, which deposit ionization energy across a wider range than the DR can absorb. The result is high recombination loss and low collection efficiency, capping short-circuit current and overall power output.

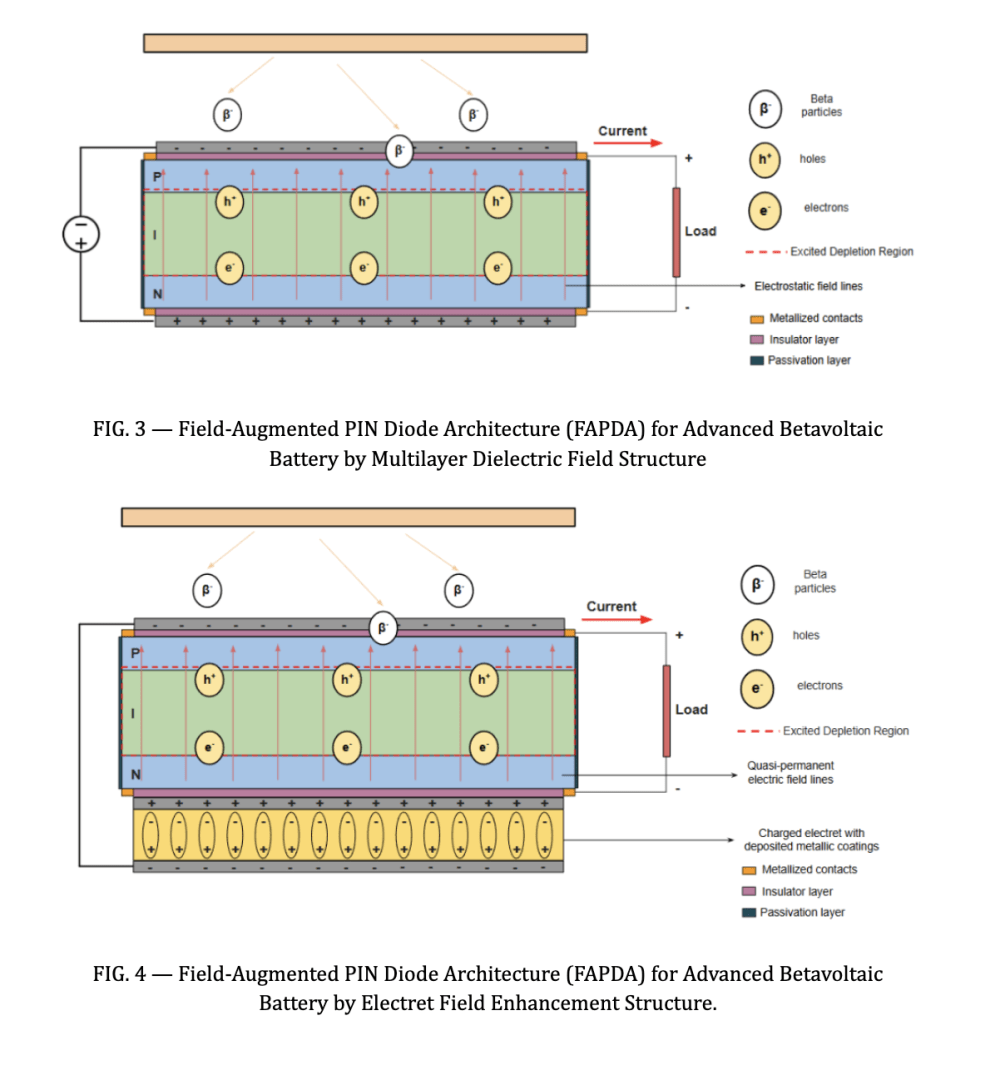

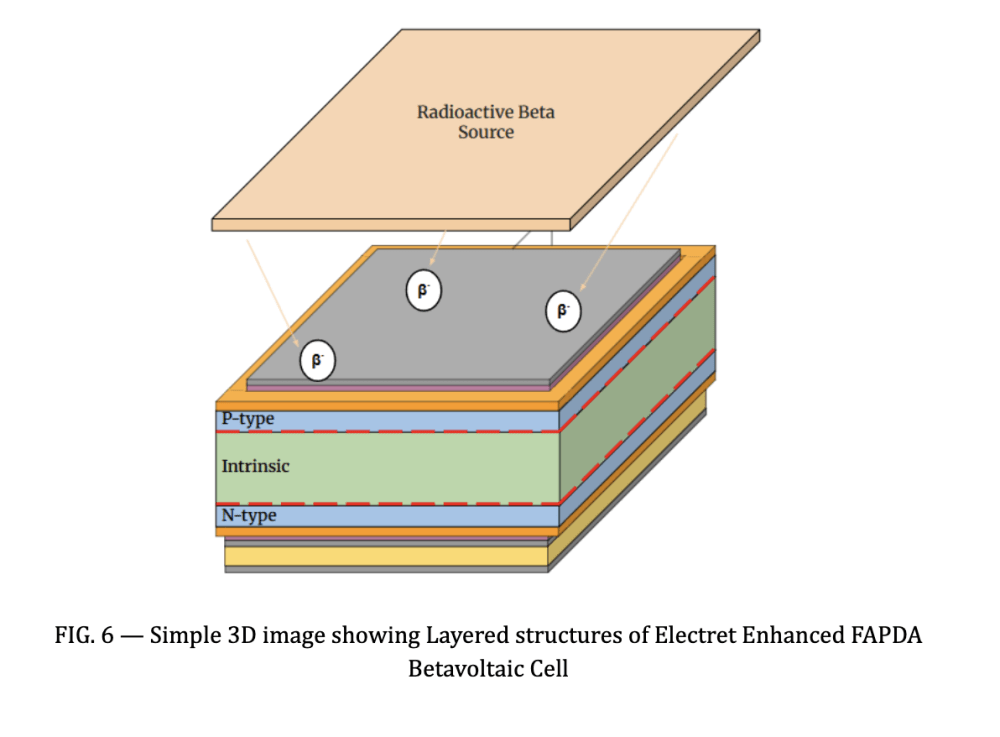

FAPDA embeds a quasi-permanent internal electrostatic field across a P-I-N diode using either a multilayer dielectric field structure or a charged electret with deposited metallic coatings. In both configurations, the added field lines extend the excited depletion region well beyond the diode's native built-in field, pulling generated holes and electrons toward the P- and N-type contacts more efficiently across the intrinsic layer. Unlike reverse-bias techniques used in photodetectors, which can widen DRs over 100x but require continuous external power, FAPDA sustains this expanded DR passively, without drawing current, through self-contained internal charge layers. This allows the DR to scale up to two orders of magnitude beyond baseline, substantially increasing collection efficiency and power density. The approach draws on precedent in organic photovoltaics, where electrostatic field-enhancement and ferroelectric layers have improved charge transport and current by up to 3x, and extends that principle for the first time to betavoltaic energy conversion—a novel cross-domain application.

FAPDA's practicality rests on two pillars. First, its materials science—electrets and multilayer dielectric structures—is well-established and already used at scale in other fields (e.g., microphones, organic PV), so fabrication draws on mature, characterizable techniques such as scanning capacitance microscopy rather than unproven processes. Second, the layered architecture is designed to piggyback on existing photovoltaic and semiconductor manufacturing infrastructure, offering a credible path to scalable production analogous to solar cell manufacturing. A staged, four-phase plan—field verification, source integration, comparative power validation, and durability assessment—provides clear, measurable success criteria that de-risk development without requiring a working prototype.

If validated, FAPDA could unlock a new class of 100 µW–10 mW betavoltaic power sources with transformative implications. Commercially, this includes maintenance-free power for industrial IoT sensors and continuous trickle-charging that extends Li-ion battery life. Strategically, decades-long, tamper-resistant power sources have direct value for defense applications, including munitions electronics and remote or denied-environment systems where battery replacement is impossible or hazardous. By closing the gap between the nuclear energy content of beta sources and the power actually delivered, FAPDA repositions betavoltaics from a niche technology into a credible, strategic energy platform.
