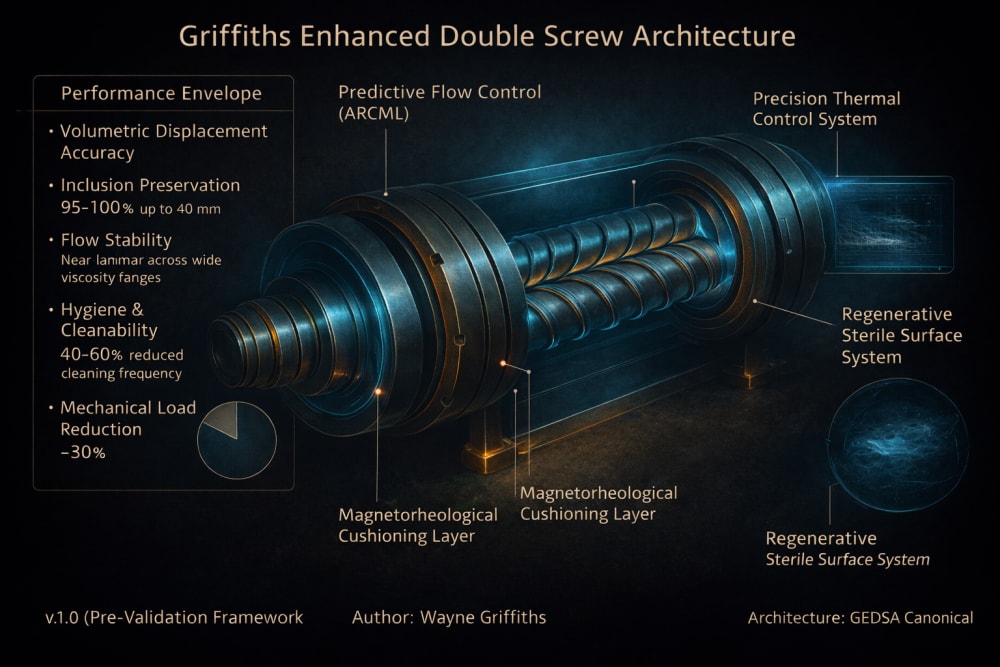

The Griffiths Enhanced Double Screw Architecture, GEDSA, is a next‑generation positive‑displacement transport system designed for industrial bakery, formed‑meat production, and other high‑value food processing lines where portioning accuracy, thermal control, and inclusion integrity directly determine yield and profitability. Conventional double‑screw systems impose fixed geometry, fixed clearances, and uncontrolled shear environments, which force processors to accept overweight giveaway, friction‑driven temperature rise, and product damage. GEDSA replaces these constraints with adaptive geometry, magnetorheological cushioning, and predictive control.

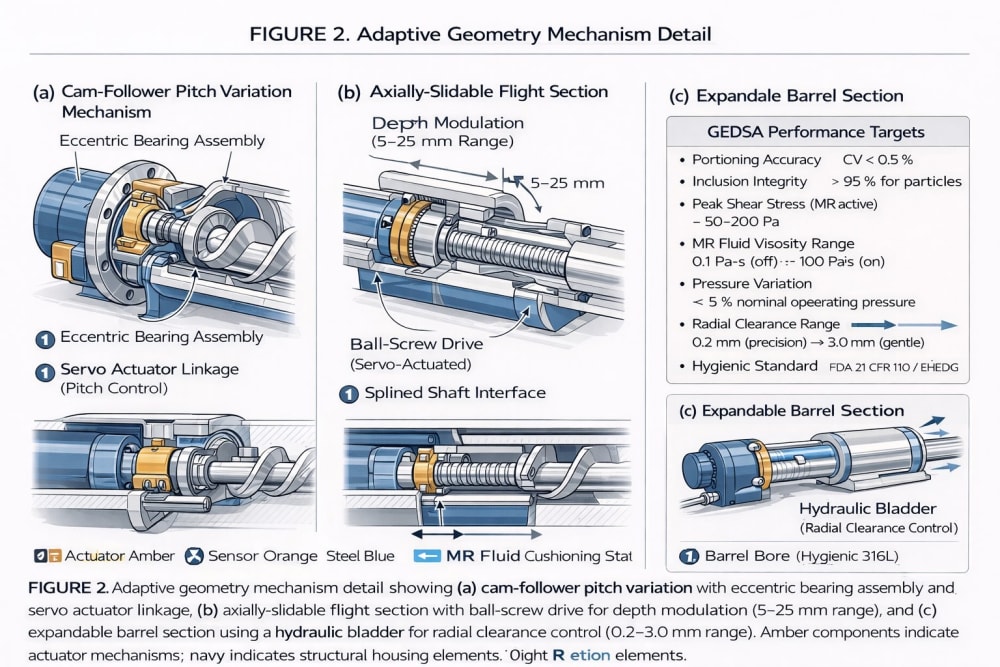

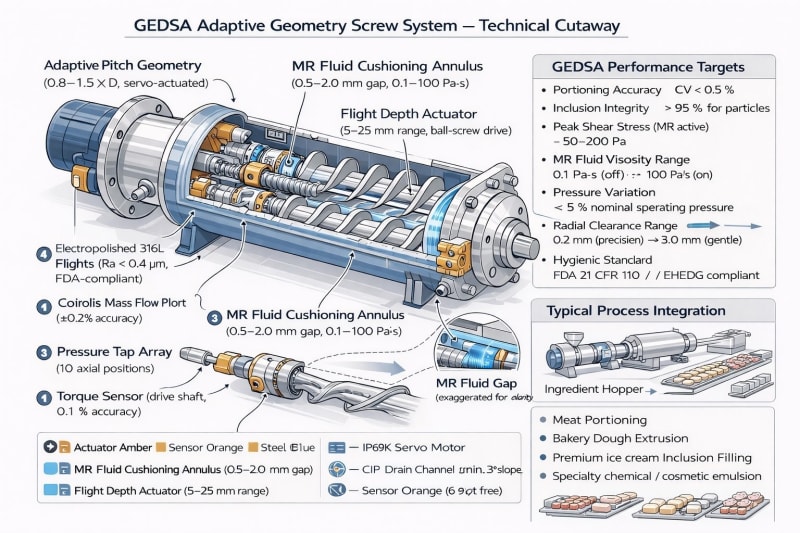

The first innovation is an adaptive geometry screw. Pitch can vary continuously from 0.8 to 1.5 times screw diameter, and flight depth can shift from 5 to 25 millimetres. These adjustments are driven by servo‑actuated cam mechanisms and ball‑screw actuators with sub‑millimetre precision. Radial clearance between screw flights and barrel bore can be tightened to 0.2–0.5 millimetres for high‑accuracy portioning or opened to 2–3 millimetres for gentle handling. This real‑time adaptability allows the system to maintain volumetric efficiency above 95 percent and achieve portioning coefficients of variation below 0.5 percent, far better than the 1.5–3 percent typical of fixed‑geometry systems.

The second innovation is a magnetorheological fluid cushioning annulus occupying the 0.5–2 millimetre gap between screw flights and barrel. Under applied magnetic fields of 0.1–0.3 tesla, the MR fluid’s viscosity increases from 0.1 to 100 pascal‑seconds and its yield stress rises from hundreds to tens of thousands of pascals. This creates a tunable damping layer that absorbs shear, reduces friction, and protects inclusions. Peak shear stress falls from 500–2000 pascals in conventional systems to 50–200 pascals in MR‑active mode. This preserves fat chunks in coarse sausage, maintains lamination in pastry dough, and prevents fracture of nuts or cookie pieces in premium ice cream. The MR layer also reduces frictional temperature rise by one to two degrees Celsius, a critical improvement for HACCP compliance in meat processing and for dough temperature control in bakery lines.

The third innovation is a predictive supervisory control architecture. A three‑layer control system combines model predictive control, high‑frequency regulatory loops, and a safety layer operating at one kilohertz. Sensor fusion through an extended Kalman filter integrates mass flow, pressure, torque, temperature, and screw‑position data to estimate real‑time product behaviour. The system adjusts geometry, clearance, and MR field strength to maintain flow stability, protect inclusions, and prevent temperature excursions. For meat lines operating near the four‑degree HACCP threshold, the system can autonomously increase clearance to reduce shear and avoid triggering recooling steps.

Economic analysis shows that GEDSA delivers rapid payback. A 200,000‑unit bakery line recovers roughly 1.1 million dollars annually in reduced overweight giveaway. A 10,000 kilogram per day beef patty line recovers 274,000 to 547,000 dollars in yield plus 15,000 to 40,000 dollars in avoided recooling. Secondary markets such as premium ice cream and cosmetic emulsions gain from inclusion preservation and gentle handling.

GEDSA occupies a performance envelope not addressed by existing technologies. It combines high throughput, low shear, precise portioning, and real‑time adaptability in a hygienic, CIP‑compatible architecture, offering a step‑change improvement for high‑value food processing.
