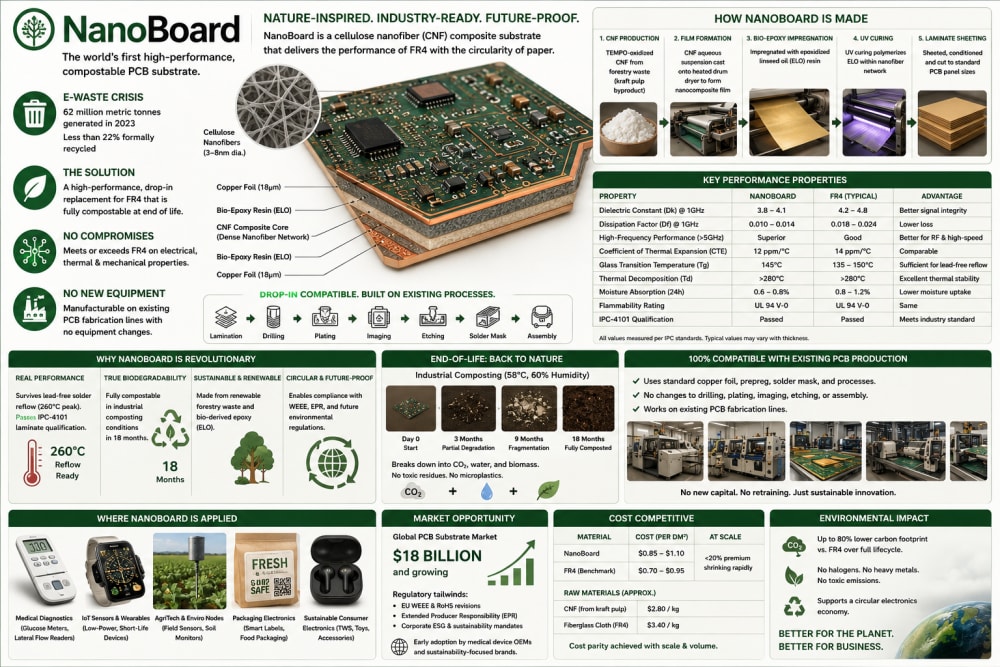

Electronic waste is the world’s fastest-growing waste stream: 62 million metric tonnes generated in 2023, with less than 22% formally recycled. The primary obstacle to e-waste recycling is the printed circuit board substrate FR4 fiberglass-epoxy laminate, which is thermosetting, non-biodegradable, and chemically bonded to copper traces and embedded components in a way that makes material separation technically and economically prohibitive. NanoBoard replaces FR4 with a cellulose nanofiber (CNF) composite substrate that is mechanically comparable to FR4, fully compostable at end of life, and manufacturable on existing PCB fabrication lines with no equipment changes.

How it works: NanoBoard is produced by casting an aqueous suspension of TEMPO-oxidized cellulose nanofibers (diameter: 3–8nm, length: 200–500nm) derived from forestry waste (kraft pulp byproduct) onto a heated drum dryer, forming a dense, optically transparent nanocomposite paper. The raw CNF film is then impregnation-treated with a bio-derived epoxy resin (epoxidized linseed oil, ELO) which polymerizes within the nanofiber network under UV curing, producing a rigid, dimensionally stable laminate sheet.

Key electrical properties: dielectric constant (Dk) of 3.8–4.1 at 1GHz (FR4: 4.2–4.8), dissipation factor (Df) of 0.010–0.014 (FR4: 0.018–0.024). NanoBoard actually outperforms FR4 on signal integrity at frequencies above 5GHz, making it suitable for RF and high-speed digital designs. Coefficient of thermal expansion: 12 ppm/°C (comparable to FR4 at 14 ppm/°C). Glass transition temperature: 145°C, sufficient for standard lead-free solder reflow at 260°C peak.

Copper foil lamination and photolithographic trace patterning use identical processes to FR4. At end of product life, NanoBoard substrates without components compost in 18 months in industrial compost conditions. The bio-epoxy binder breaks down to CO₂ and water, and the CNF returns to soil as a nutrient.

What makes it novel: Prior biodegradable PCB attempts used pure cellulose or PLA, both thermally unstable at solder reflow temperatures (>200°C), making them incompatible with real manufacturing. NanoBoard’s CNF+ELO composite is the first bio-derived substrate to survive lead-free solder reflow, pass IPC-4101 laminate qualification tests, and decompose in industrial composting. The combination of drop-in manufacturability and genuine end-of-life biodegradability has no prior commercial equivalent.

Manufacturing: CNF sourced from kraft pulp mills at approximately $2.80/kg (compared to fiberglass cloth at $3.40/kg). ELO bio-epoxy is commercially available at scale from Arkema and others. NanoBoard laminate cost at volume: $0.85–$1.10/dm² versus FR4 at $0.70–$0.95/dm², a premium of under 20%, shrinking rapidly with scale.

Where it's applied: Single-use medical diagnostic PCBs (COVID lateral flow readers, glucometers), low-cost consumer IoT sensors, agricultural monitoring nodes, packaging electronics, and any application where device lifetime is under 5 years and circular economy compliance is a regulatory or marketing requirement.

Market potential: Global PCB substrate market: $18B. EU WEEE directive revisions and extended producer responsibility legislation are creating strong regulatory pressure for biodegradable electronics. Early adoption by medical device OEMs and sustainability-focused consumer electronics brands is the beachhead.
