UV‑C Sterilizing Trash‑Can Lid with Internal Light‑Baffle Chamber

Votes: 0
Views: 99
Medical

Household and commercial trash cans are persistent sources of odor, bacterial growth, mold, and insect attraction. The underside of the lid is the most contaminated surface, yet it is rarely cleaned and is difficult to sanitize without chemicals or manual scrubbing. Existing solutions—scented bags, charcoal filters, insect traps, or chemical sprays—treat symptoms rather than the root cause: microbial activity and insect landing zones concentrated around the lid area. There is currently no consumer‑friendly product that continuously disinfects this surface while remaining safe for everyday use.

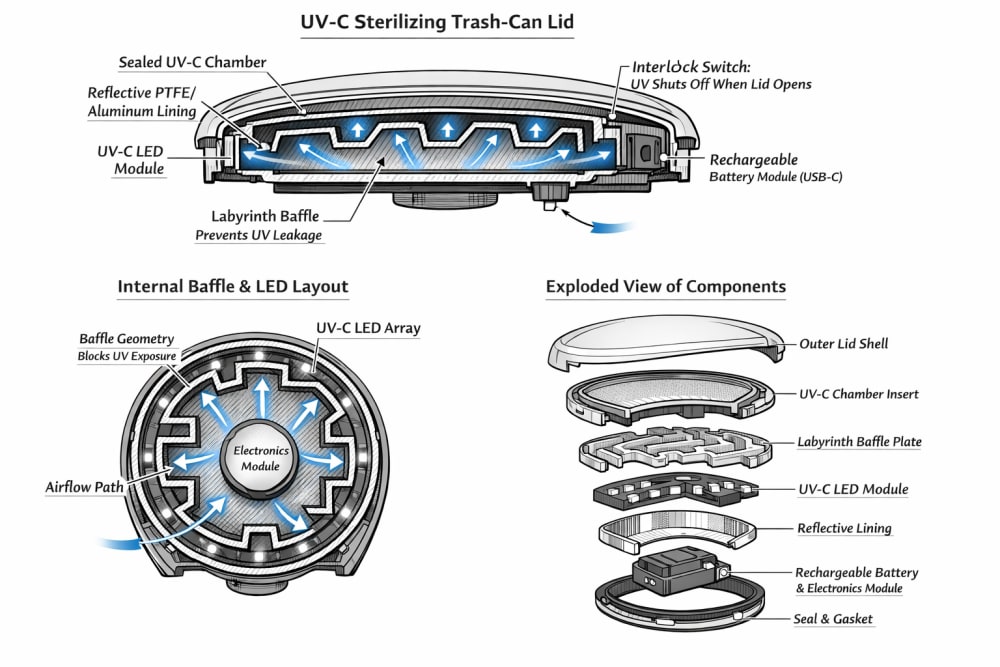

This invention introduces a self‑sterilizing trash‑can lid that integrates a sealed UV‑C disinfection chamber directly into the lid structure. The design uses a labyrinth‑style internal baffle that allows air exchange but blocks any direct line‑of‑sight exposure to UV‑C radiation. This enables the system to safely irradiate the underside of the lid and rim area—where bacteria, mold spores, and insects typically accumulate—without exposing users to harmful UV light.

Inside the lid, a compact UV‑C LED module illuminates a reflective chamber lined with aluminum or PTFE to maximize germicidal efficiency. The baffle geometry ensures that UV‑C photons reach the interior surfaces while preventing leakage. When the lid is closed, the system automatically activates, disinfecting the underside of the lid, suppressing microbial odor formation, and sterilizing the landing surfaces that attract flies and gnats. A simple mechanical or magnetic interlock disables the LEDs whenever the lid is lifted, ensuring user safety.

The electronics are housed in a sealed, removable module containing a rechargeable battery, USB‑C charging port, and optional solar‑assist panel for outdoor cans. The design is compatible with both standalone lids and retrofit rings that snap onto existing trash cans. All components are sized for low‑cost injection molding and straightforward assembly, making the product manufacturable at scale.

Unlike chemical disinfectants, the UV‑C lid provides continuous, residue‑free sanitation. Unlike insect traps, it prevents insects from breeding at the source. And unlike deodorizing filters, it eliminates the microbial activity that produces odors rather than masking them. The result is a cleaner, safer, and more hygienic waste‑handling environment for homes, restaurants, medical facilities, and public spaces.

This concept is novel in its combination of:

  • A sealed UV‑C chamber integrated into a trash‑can lid
  • A safety‑first baffle system that blocks UV exposure
  • Continuous passive sterilization of the lid’s underside
  • Retrofit‑friendly, low‑cost manufacturability
  • Dual benefits of microbial reduction and insect suppression

By addressing sanitation at the point where contamination begins, this invention offers a practical and impactful improvement to everyday waste management.
