The "Click-and-Drag" Bottleneck

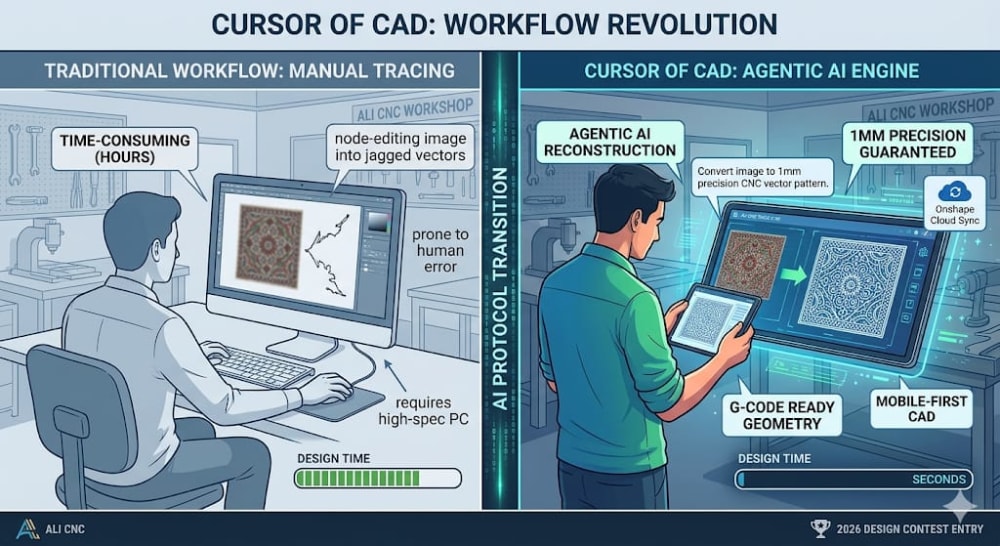

In the modern CNC and manufacturing industry, the design phase remains the most significant bottleneck. Operators still rely on manual vector tracing and legacy CAD software that requires intensive human labor to convert raw concepts into production-ready files. For small-scale workshops and independent designers, this manual "click-and-drag" workflow is inefficient, prone to human error, and limits the ability to scale.

An Agentic CAD Environment

Cursor of CAD (powered by the Ali CNC Trace It protocol) is an AI-native geometric engine that replaces manual drawing with an agentic, natural-language-driven workflow. Inspired by the efficiency of modern AI coding environments, this project introduces a "Geometric Protocol" that interprets design intent directly into high-precision vectors.

Key features include:

• Prompt-to-Geometry Engine: Bypassing traditional toolbars, the system uses a Python-based logic to generate complex 2D and 2.5D vectors from natural language descriptions or low-resolution image inputs.

• 1mm Precision Guarantee: Built specifically for the manufacturing floor, the engine operates on a strict millimeter-standard, ensuring that AI-generated paths are not just "visuals" but are mathematically accurate for G-code toolpathing.

• Infinite Resolution Tracing: The engine uses a proprietary "tracing" logic that understands the structural intent of a design, allowing it to reconstruct clean, sharp geometry from imperfect source files—a task that typically takes hours of manual "node editing."

• Cross-Platform Integration: Designed to bridge the gap between mobile and industrial hardware, the system integrates with cloud APIs like Onshape to allow for 3D mesh refinement on mobile devices, enabling design-on-the-go for shop operators.

Market Impact & Sustainability

By reducing the design-to-production time by up to 90%, Cursor of CAD democratizes high-end manufacturing. It allows solo operators and small CNC shops to compete with large-scale factories by drastically lowering the technical barrier to entry. This engine isn't just a tool; it is a fundamental shift from "drawing" geometry to "architecting" it through AI collaboration.
