This device is designed to streamline the preparation of instant noodles through automated hardware integrated with smart mobile connectivity. The system aims to provide a convenient, hands-free cooking experience directly initiated via a smartphone application.

System Mechanics /Operation

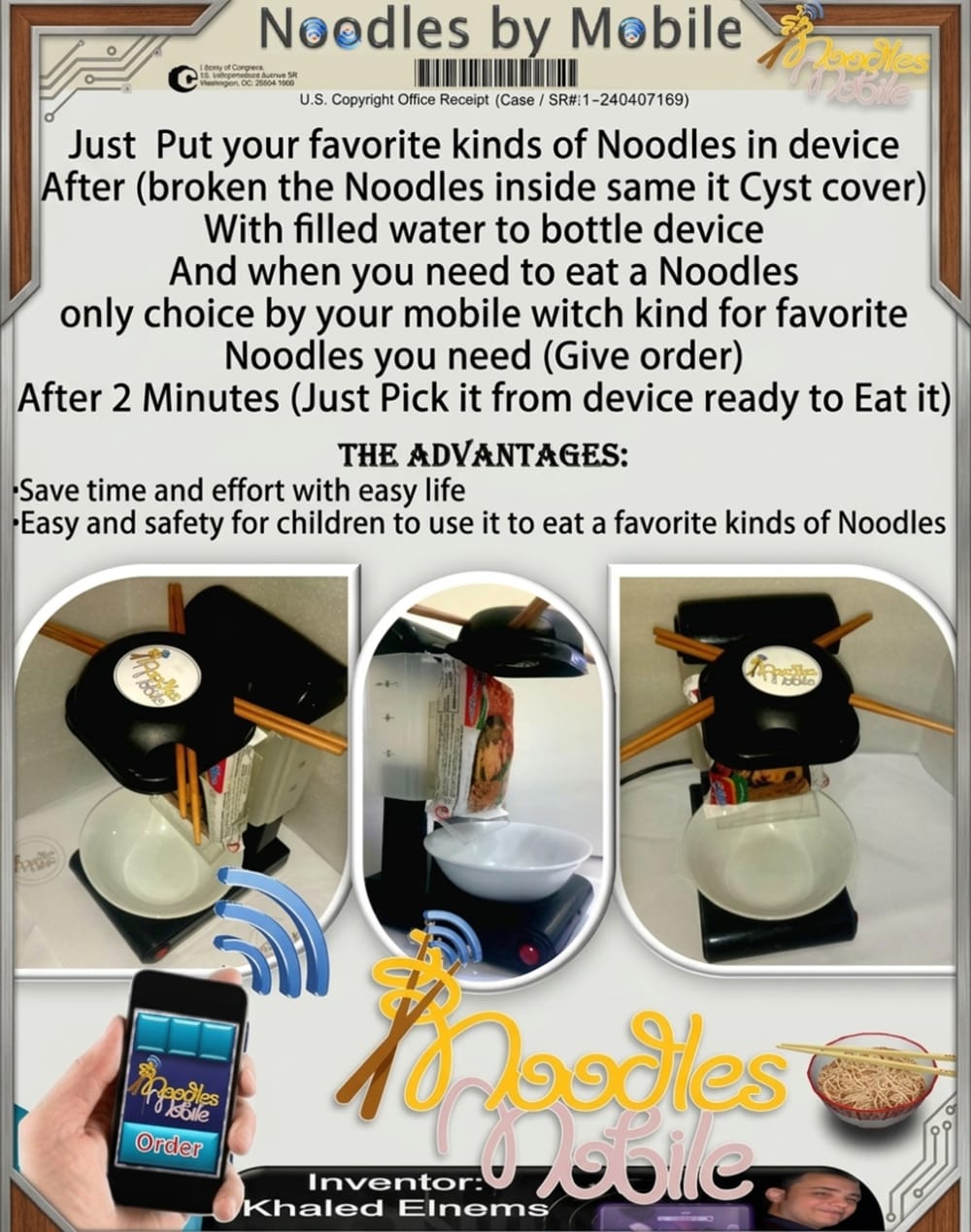

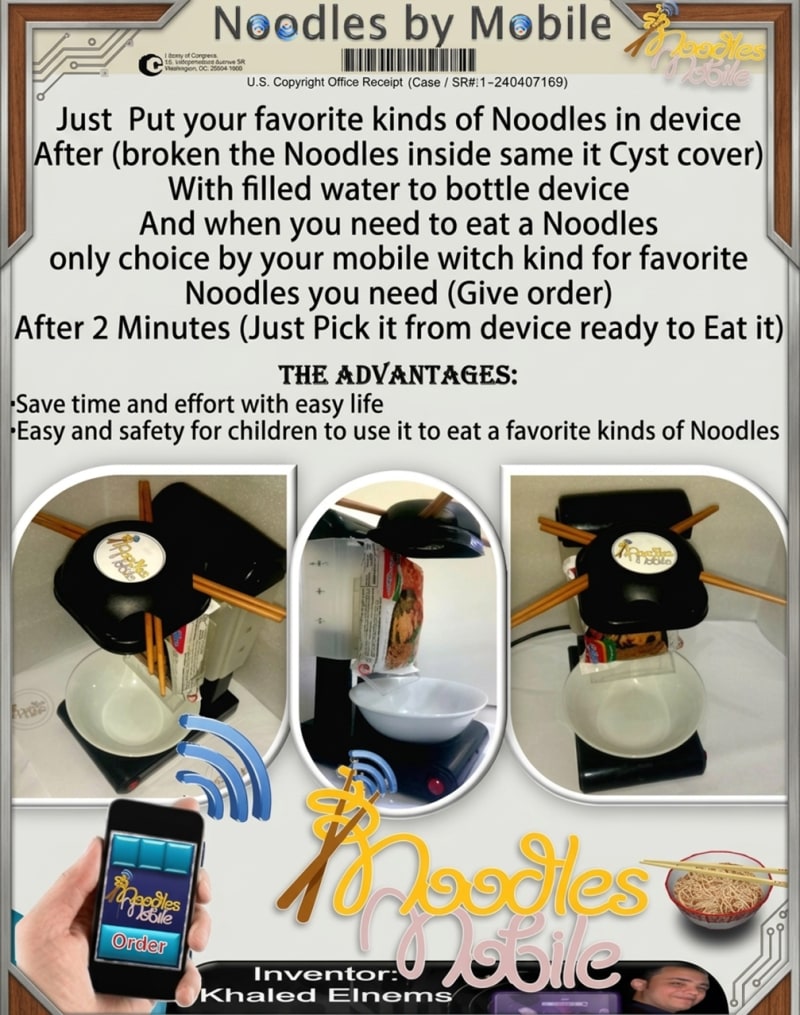

As the appliance simplifies the traditional cooking process into a few user-friendly steps:

• Loading the Ingredients: The user places their preferred brand or flavor of instant noodles into the specialized housing unit of the device. The instructions specify doing this after breaking the noodles inside their original packaging cover.

• Water Management: An integrated water bottle container on the device must be filled with water to supply the cooking mechanism.

• Mobile Command: When the user wishes to eat, they utilize the dedicated "Noodles Mobile" smartphone app interface to select their desired noodle type and issue an "Order" command.

• Rapid Automated Preparation: Upon receiving the mobile signal, the device processes the request, and within 2 minutes, a fully prepared bowl of noodles is ready to be picked up from the dispensing station.

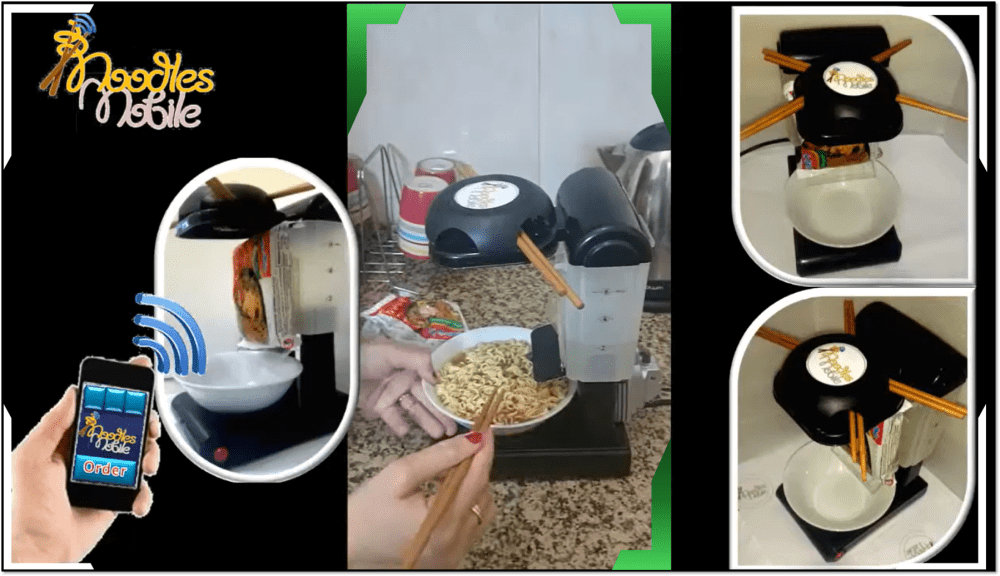

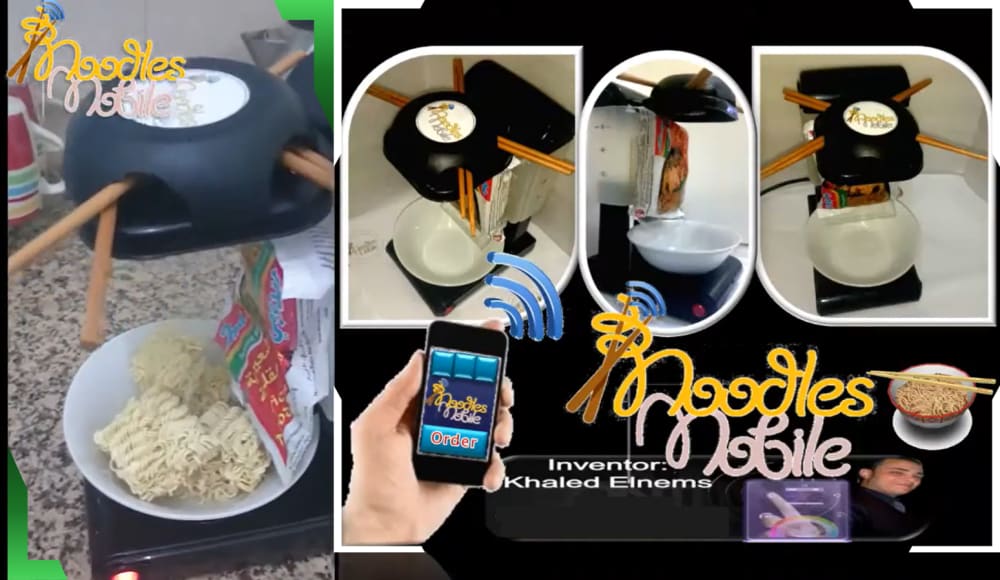

Visual Analysis /System Prototype Component Breakdown

The device design is based on a compact structure that integrates mechanical and smart elements to facilitate automated cooking. The system consists of primary components including an upper control unit, a component suspension and stabilization mechanism, and a lower heating base.

• Control and Operation Structure: The upper section of the device features a compact circular design equipped with extended mechanical ports resembling chopsticks, which serve structural or functional purposes in guiding the components.

• Preparation and Suspension Unit: A dedicated vertical holder is positioned in the middle of the device to securely stabilize dry food packaging in a vertical position directly above the preparation bowl.

• Collection and Heating Bowl: A white bowl rests at the base, designated to receive the dry ingredients and liquids, with the bowl positioned over an electronic operating base equipped with light indicators to complete the automated cooking and heating process.

• Liquid Reservoir: A transparent, graduated water tank is attached to the rear structure of the device to supply the system with the water necessary for precise and smooth preparation.

IoT Integration /Digital Control

• Mobile Application: The device integrates with a dedicated smart application that allows the user to browse available options and send immediate operation commands with a single click.

• Smart Wireless Connectivity: The application sends direct digital signals to receiver unit inside the device to execute mechanical and thermal tasks without need for direct human intervention.

• Full Automation: Upon receiving the digital command, the mechanical and electrical parts interact to dispense ingredients, mix liquids, and complete the cooking process within just two minutes to deliver a meal fully ready for safe consumption.

Key Advantages

• Efficiency: It saves significant time and physical effort, catering directly to a modern, fast-paced lifestyle.

• Child Safety: The streamlined, automated execution offers a safe and simple way for children to prepare their favorite food without managing open boiling water on a stove.
