Perimeter security systems and cargo protection platforms are conventionally engineered as entirely separate products — yet both wake on a passive trigger, read an inertial sensor, drive an actuator through a feedback loop, and report over a wireless link. This project argues that a wildlife/security sentinel turret and an active-dampening shipping container are simply two parameter settings of one generalized autonomous IoT node — and builds that node.

The Unified Architecture

A single ESP32-based hardware/firmware template with a MODE flag (Sentinel / Cargo) configures all subsystems at boot. Three sensing modalities cooperate in both modes: a PIR sensor provides the always-armed, near-zero-power wake trigger; a 6/9-axis IMU (MPU6050/9250) measures the disturbance the control loop must reject; and a single-point LiDAR time-of-flight sensor acts as a confirmatory second modality — range-gating PIR triggers against a stored background distance to eliminate false alarms from foliage in Sentinel mode, and monitoring internal payload clearance in Cargo mode. All three feed a Kalman-filtered fusion model that produces the clean angular-error signal for the PID loop.

Active Stabilization

An anti-windup PID controller running as a dedicated FreeRTOS task on one ESP32 core drives a servo platform toward a setpoint that is defined by the mode: in Sentinel mode, the setpoint tracks a detected intruder, keeping a camera, spotlight, or deterrent aimed despite wind-induced pole sway; in Cargo mode, the setpoint is zero tilt, actively counter-leveling a payload tray against road shocks and ocean swells. The same control law — same firmware, same gains structure — handles both.

Four-Tier Communication

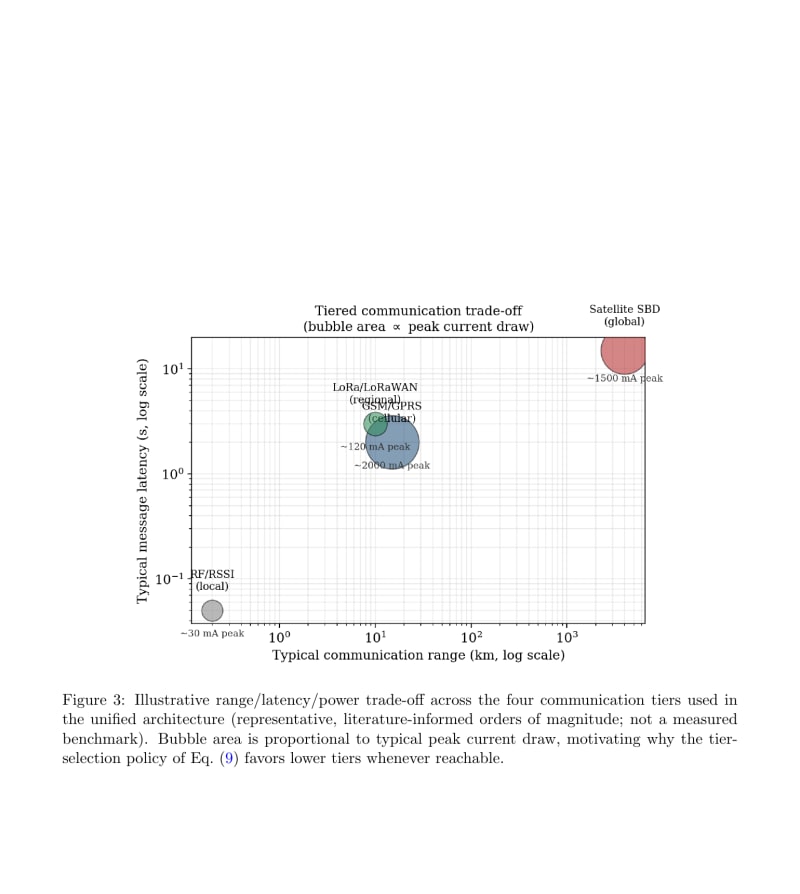

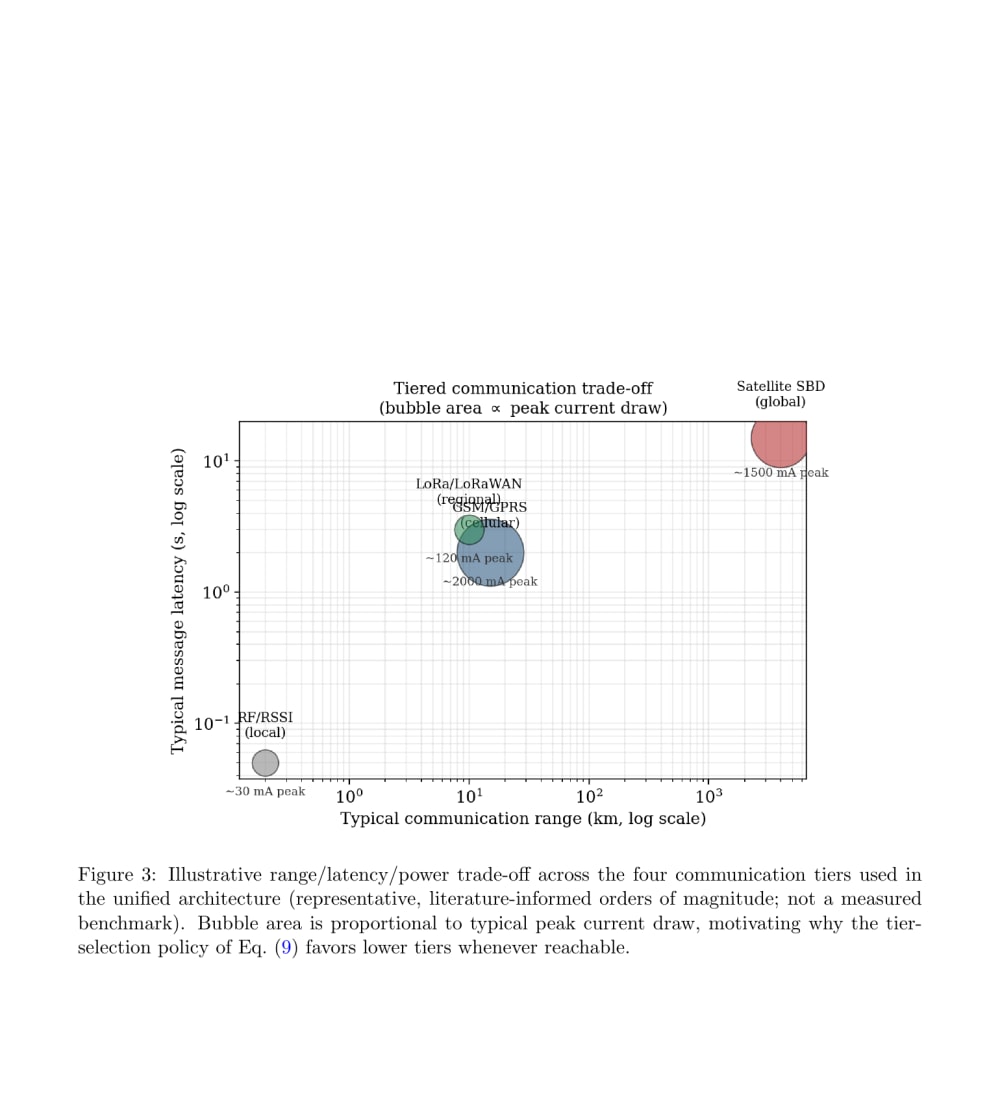

Both modes share an adaptive communication stack that escalates outward from lowest to highest energy cost: local RF/RSSI mesh → GSM/GPRS cellular → LoRa/LoRaWAN regional → Satellite short-burst-data (Iridium SBD) global fallback. This directly addresses the single largest reliability gap of single-tier GSM-only designs: a cargo container crossing open ocean or a sentinel at a forest boundary with marginal cellular signal no longer silently drops critical alerts.

Composite Risk Index

A proposed Composite Risk Index (CRI) fuses breach-event frequency, IMU-measured impact severity, communication-link margin, and static GIS terrain context into a single normalized score per location. Both Sentinel nodes and Cargo route waypoints report into the same shared risk map — not two disconnected dashboards — enabling coordinated route re-planning and threat escalation across deployment modes.

Impact

This framework reduces hardware duplication, cuts per-unit development cost, and unifies monitoring dashboards for operators managing mixed fleets of fixed sentinels and mobile cargo. Target applications include wildlife conservation perimeters, remote farm security, pharmaceutical cold-chain logistics, and maritime high-value cargo. The architecture is an open engineering blueprint intended for field validation; the PID stabilization, sensor fusion, link-budget, and CRI formulations are all provided in full for replication.
