NASA’s planned Moon Base initiative will lead to permanent and semi-permanent human habitats on the lunar surface. The opportunity will enable unrivalled scientific and resource exploration of the lunar surface that could one day lead to a thriving multi-trillion dollar space economy according to Bank of America. To enable human habitat, we will require teams of autonomous surface robots that will undertake the dull, the dirty and dangerous tasks on the lunar surface. The proposed technology is an autonomous inflatable and mechanically deployable robotic shelter that protects lunar rovers while simultaneously serving as a long-duration environmental monitoring station. Designed to address two of NASA's recently identified technology priorities, the shelter directly tackles the top 2024 technology shortfall of enabling robotic survival through the lunar night while advancing the top 2026 priority of developing sustainable lunar surface infrastructure. By protecting robotic assets from extreme thermal cycling, radiation, and abrasive lunar dust while continuously characterizing local environmental conditions, the system enables longer-duration robotic operations with reduced maintenance, lower logistics demands, and significantly improved mission resilience.

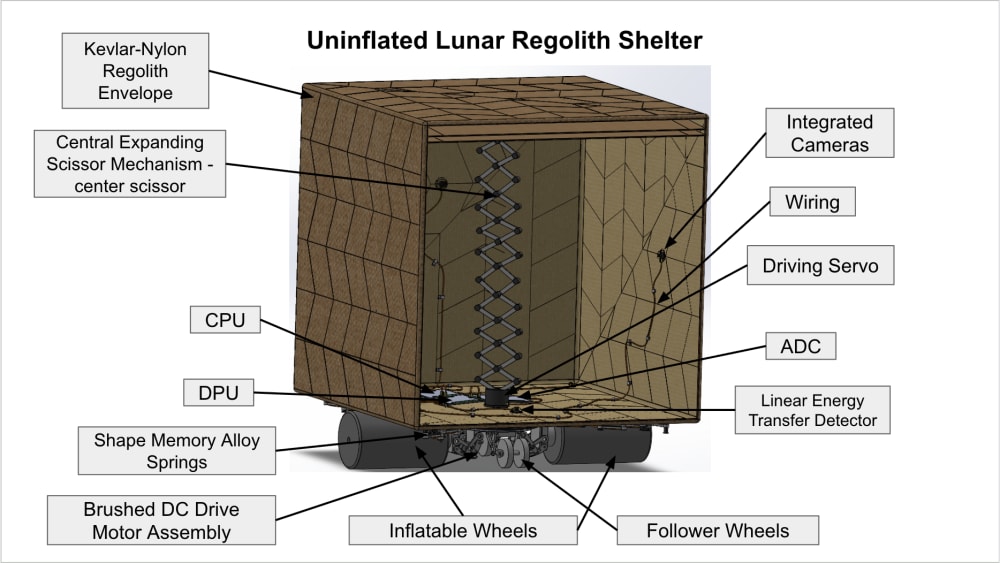

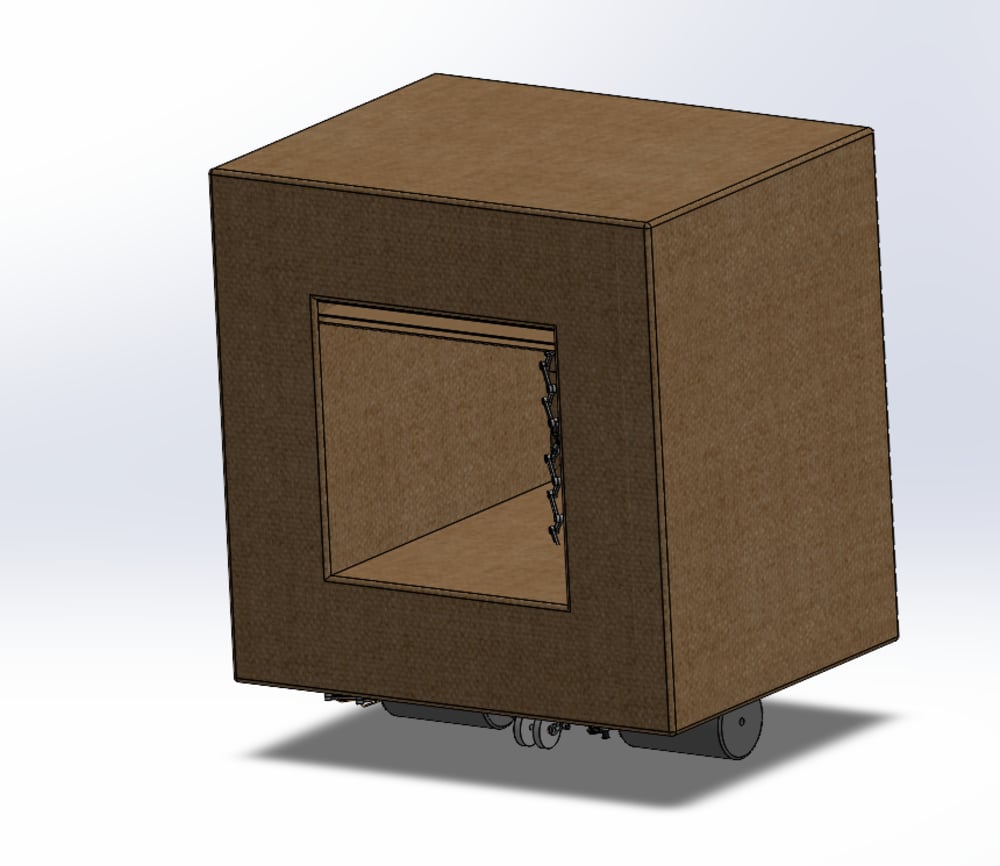

The shelter launches in a compact 24U configuration (23 cm x 36 cm x 48 cm ), with a mass ceiling of 48 kg before autonomously expanding on the lunar surface. Deployment is accomplished through a cylindrical ring connected to four pistons supporting an inflatable fabric enclosure. Shape Memory Alloy (SMA) springs integrated within scissor mechanisms augment a compact servo-driven deployment system, reducing reliance on conventional electric actuators while improving reliability and minimizing long-term maintenance requirements.

A key innovation is the multilayer protective envelope that utilizes in-situ lunar regolith as a primary insulating material. The outer shell consists of woven Kevlar and Nylon sheet surrounding an aerogel layer, beneath which inflatable regolith-filled chambers expand approximately 12 cm to create an effective thermal and radiation barrier. This layered architecture is repeated on the interior surface, providing robust insulation against the Moon's extreme temperature cycles while protecting sensitive robotic systems from radiation exposure. By utilizing abundant lunar regolith after landing instead of transporting large quantities of shielding material from Earth, the system substantially reduces launch mass, lowers mission cost, and demonstrates a practical application of in-situ resource utilization (ISRU).

Beyond protecting robotic assets, the shelter functions as an intelligent autonomous environmental observatory. Integrated cameras, linear energy transfer detectors, and onboard AI continuously monitor radiation, illumination, temperature, and lunar dust activity, generating long-term environmental datasets while identifying correlations among changing surface conditions. These observations enable automated prediction of favorable operating periods for solar power generation, robotic activities, and protection of sensitive electronics during hazardous radiation events.

As human and robotic exploration expands across the Moon, autonomous shelters such as this can become foundational infrastructure supporting fleets of surface robots, scientific instruments, and future lunar outposts. By transforming locally available lunar materials into intelligent protective infrastructure, this technology establishes a scalable foundation for autonomous robotic ecosystems that will enable sustained scientific discovery, resource utilization, and permanent human settlement beyond Earth.
