Modern Vision-Language-Action (VLA) robots rely on large AI models running on GPUs to interpret sensor data, understand natural language, and generate motor commands. While GPUs provide exceptional computational power for perception and reasoning, they cannot consistently deliver the deterministic, high-frequency control required for safe real-time robotic motion. Memory bandwidth limitations, operating system scheduling, and variable execution latency introduce jitter that becomes increasingly problematic in humanoid robots, autonomous drones, industrial automation, and collaborative robots.

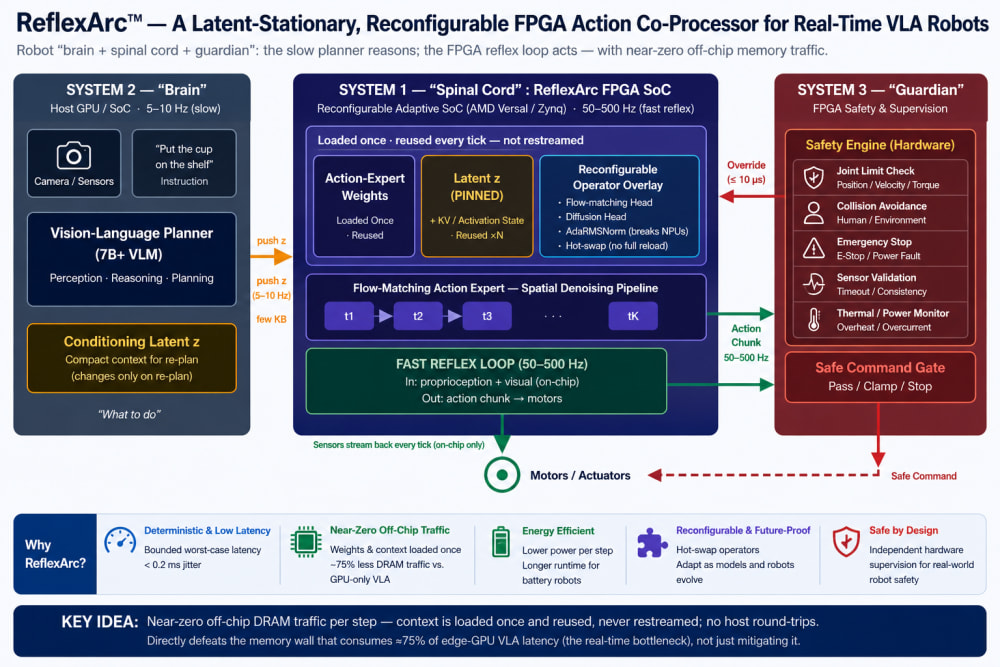

ReflexArc™ is a dedicated FPGA-based Action Co-Processor that complements existing AI processors by executing the time-critical motion layer with deterministic latency. Instead of replacing the GPU, ReflexArc divides robotic intelligence into three cooperative systems: a high-level AI planner running on the GPU, a real-time Action Engine implemented on the FPGA, and an integrated Safety Engine that continuously supervises robot operation.

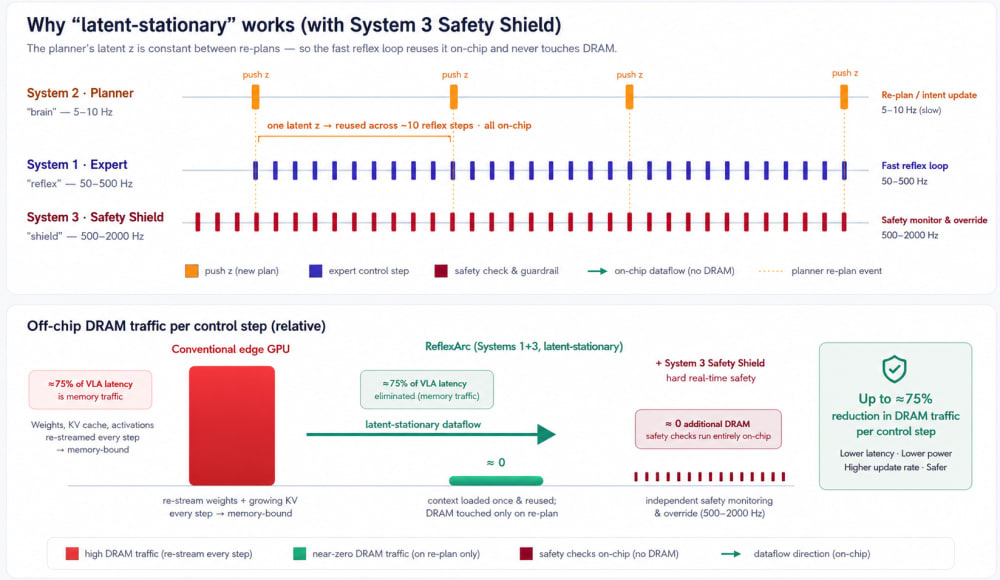

The GPU periodically generates high-level motion intentions, while ReflexArc transforms these commands into high-frequency actuator trajectories using deeply pipelined hardware optimized for predictable execution. The Safety Engine independently validates every motion command against configurable safety constraints such as joint position limits, velocity limits, collision boundaries, emergency stop conditions, and sensor consistency. If unsafe behavior is detected, ReflexArc immediately overrides or blocks hazardous commands without waiting for GPU intervention.

Unlike conventional AI accelerators that primarily improve inference throughput, ReflexArc focuses on deterministic control execution. Its hardware architecture combines configurable motion pipelines, real-time scheduling logic, hardware state machines, and safety monitoring within a reconfigurable FPGA fabric. This allows manufacturers to customize motion algorithms and robot-specific safety policies without redesigning silicon, significantly reducing development cost and product iteration time.

ReflexArc can be manufactured using commercially available System-on-Module FPGA platforms or integrated directly into custom robotic controller boards using existing FPGA devices from leading semiconductor vendors. Because the architecture is implemented entirely in programmable logic, it requires no specialized manufacturing process beyond standard PCB assembly and FPGA programming, enabling rapid commercialization and deployment across multiple robotic platforms.

The technology is applicable to a wide range of autonomous systems, including humanoid robots, warehouse automation, industrial manipulators, autonomous mobile robots, medical robots, agricultural robots, inspection systems, and unmanned aerial vehicles. As robotics increasingly incorporates large AI models, deterministic motion execution becomes a critical requirement for safety, certification, and energy efficiency.

ReflexArc introduces a new class of robotic hardware: a dedicated Action Co-Processor that bridges the gap between high-level AI reasoning and reliable physical execution. By combining deterministic FPGA control, integrated functional safety, and reconfigurable hardware architecture, ReflexArc enables next-generation intelligent robots to operate faster, safer, and more efficiently while preserving compatibility with existing AI software ecosystems.
