Related Electric Power Technology

Votes: 0
Views: 3545

All technologies listed are based on high-frequency PWM power electronics, magnetics, and rotational dynamics; and are synergistic with each other. They include brushless regenerative DC motors, DC generators, DC kinetic battery, PV power maximizer electronics, motor-wheels for onboard solar-powered EV. Except for the EV, prototypes have been tested. Performance agrees with design analysis results.

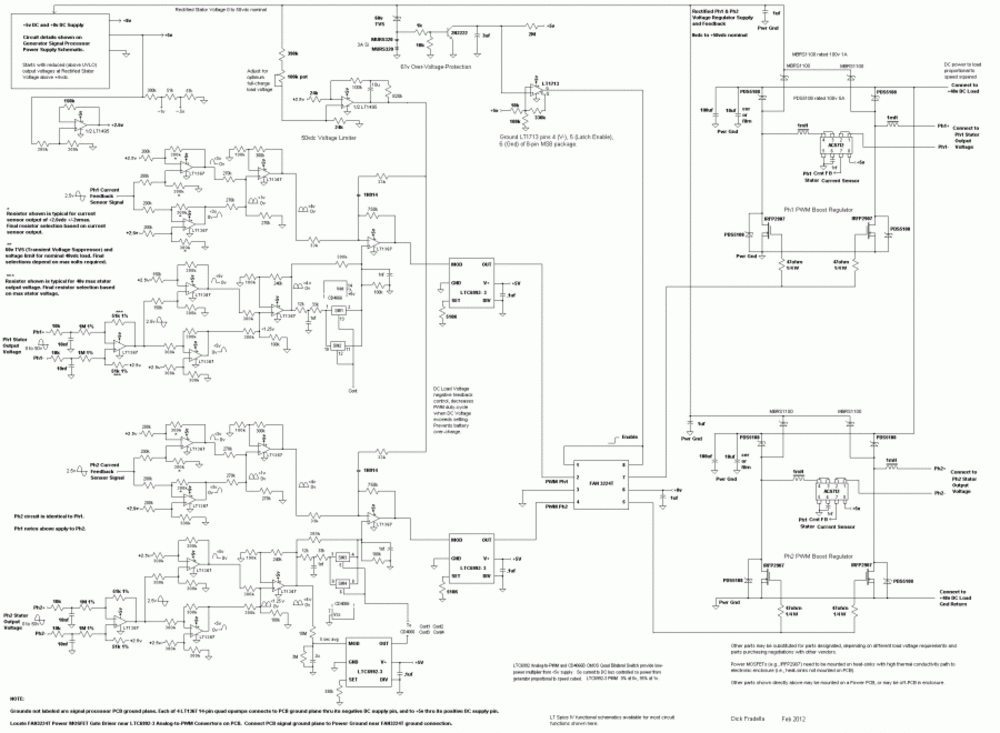

Broad-speed-range DC generator shaft supports a wind turbine within a building-integral housing that increases and limits wind speed.

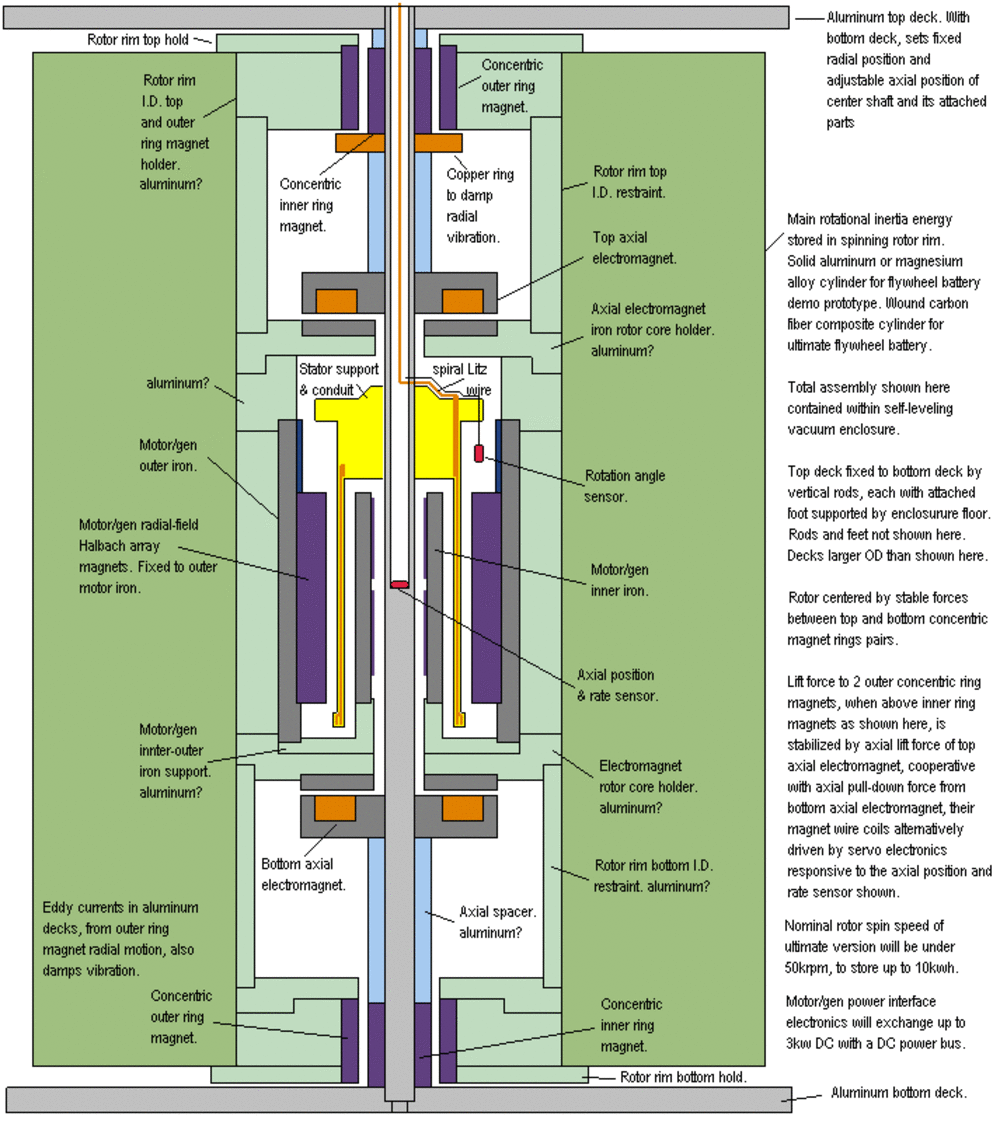

DC kinetic battery has integral regenerative motor; its rotor centered and levitated by concentric ring magnets, axially stabilized by electronics responsive to axial position and rate sensors. The electronics control 2 axial electromagnets, and need only a few watts at steady-state. Flywheel assembly is inside self-leveling vacuum enclosure.

EV includes 2 motor-wheels. Each is like first DC motor prototype, except motor-wheel has tubular shaft that does not rotate, and its outside rotor body is attached to rear wheel rim by springs, for very low unsprung mass EV that includes optional pedal-powered DC generator, onboard batteries, PV on all top and side exterior, and drive/brake controls on its steering wheel.

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    Dick Fradella
  • Type of entry:
    individual
  • Profession:
    Engineer/Designer
  • Number of times previously entering contest:
    never
  • Dick's favorite design and analysis tools:
    Multi-physics Finite-element-analysis
    SPICE
    Computer Aided Design
  • Dick's hobbies and activities:
    Electric power system design, analysis, prototype
  • Dick is inspired by:
    Need for sustainable electric power PV/wind, generator, motor, flywheel UPS, and road vehicles, to solve global energy and environment problems.
  • Software used for this entry:
    Magnetic/stress/thermal FEA, Solidworks, SPICE
  • Patent status:
    patented
