Draughtsman Vernier Compass

Votes: 1
Views: 192

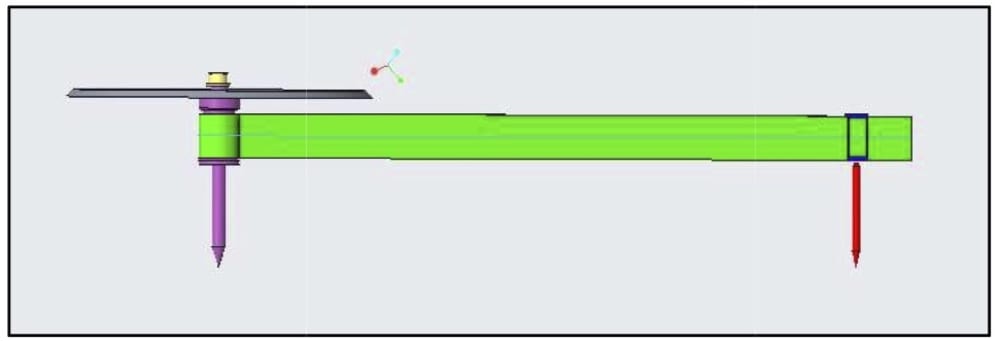

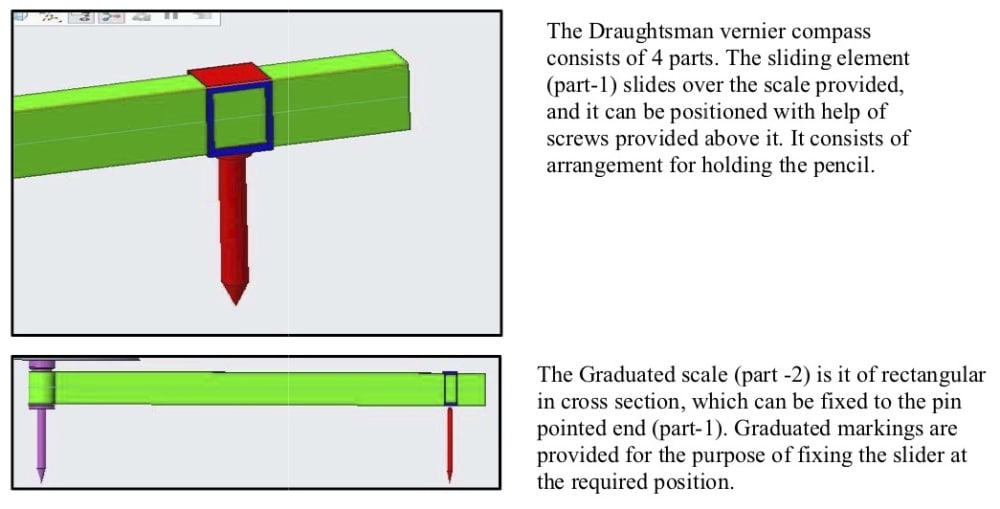

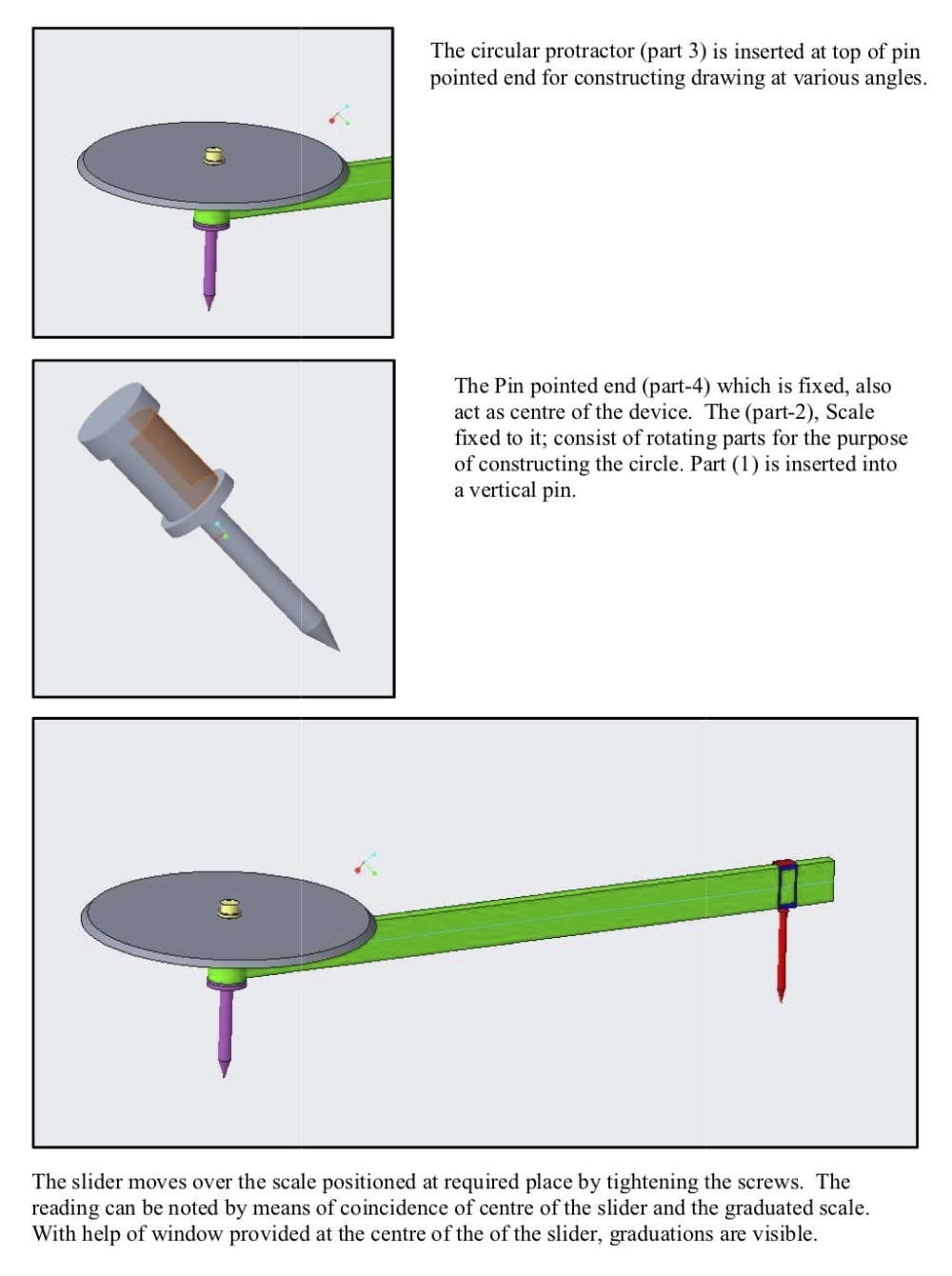

This design is focused on providing a very different approach in the usage of a compass with conventional tools. The concept of draughtsman vernier compass with scale. It consists of pin pointed end, graduated scale, slider. The scale is designed in such a way that the slider can slide over it. Slider can be located at various locations. The screws are used to fix the ends at its positions over the graduated scale. Elongated part of scale is inserted in fixed end to avoid deflection (due to stresses given by user), to withstand the weight of the slider provided through it. Required dimension can be fixed with help of graduated readings. The circular protractor provided at top of the pin pointed end is useful in constructing diagram at a specific angle. This design of the Draughtsman vernier compass helps in reducing the human strain in constructing diagrams.

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    Ganesh Laxman Ramanathan
  • Type of entry:
    team
    Team members:
    ABHIRAM KRISHNA B
    GANESH LAXMAN
    INTI LIKHITA
  • Profession:
    Student
  • Software used for this entry:
    CREO ,AUTOCAD
  • Patent status:
    pending
