Fire Containment System

Votes: 2
Views: 988

A fire containment system to provide a fire wall barrier to a fire proceeding across a ground, said system comprising: two or more towers anchored in series in the ground, each of said two or more towers having a slot formed therein running from a first tower end to a second tower end and an interior therein; a lift system positioned within said interior each of said two or more towers, said lift system having a motor coupled to a pulley positioned proximate said second tower end and a pulley strap extending therearound said pulley and extending thereto a lift platform configured to traverse between said first tower end to said second tower end within said interior, a lift cable affixed to said lift platform, said lift cable having a plurality of cable attachment devices affixedly spaced thereto, each said cable attachment device having an outer slider and an inner slider with a spacer positioned therebetween, said outer slider, said inner slider, and said spacer configured to traverse therein said slot; one or more support cables strung between said two or more towers, said one or more support cables having a first cable end and a second cable end, said first cable end affixed to one of said plurality of said cable attachment devices in a first tower of said two or more towers and said second cable end affixed to one of said plurality of said cable attachment devices in a second tower of said two or more towers; and a fire proof curtain affixed to said one or more support cables.

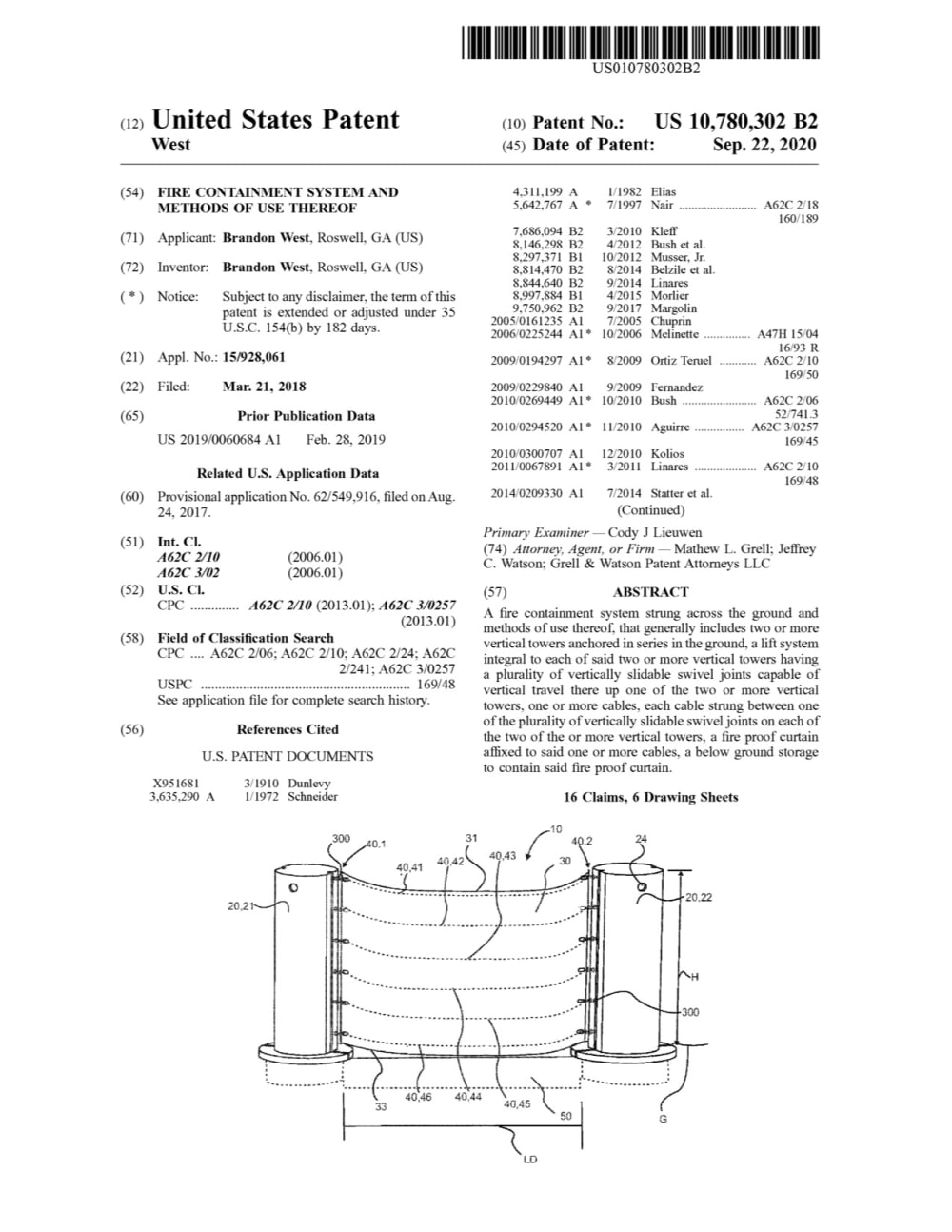

Patent# 10,780,302 B2

https://pdfpiw.uspto.gov/.piw?Docid=10780302

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    Brandon West
  • Type of entry:
    individual
  • Profession:
    Engineer/Designer
  • Number of times previously entering contest:
    2
  • Brandon is inspired by:
    Wild Fire Containment
  • Patent status:
    patented
