Telemetry System for Firefighters With AR Support

Votes: 0
Views: 80
Electronics

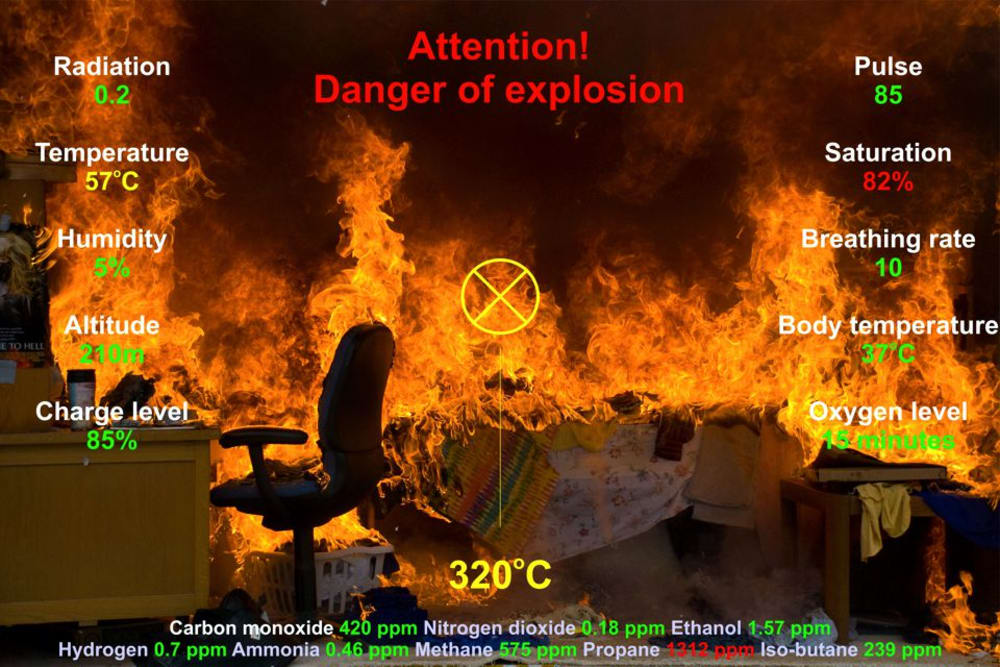

We have developed a modular personal telemetry device. It allows you to determine a person's physiological data and environmental parameters. The system consists of two modules. One of them is attached to the patient's chest with a special strap. Its design includes built-in electrodes for measuring ECG, skin resistance, and chest expansion. The second module is attached to a belt. It contains: a GPS module for determining location; a radiation and ultraviolet radiation level meter and a hazardous gas concentration sensor. The modules are connected via a Bluetooth LE radio channel. The received and pre-processed data is transmitted via a built-in web server (module 2) over a Wi-Fi interface for remote monitoring and analysis. The information is also stored in a local secure SD card-based storage device. It acts as a personal “black box” in case of emergency loss of radio communication. The received data, together with hazard warnings, is displayed in the firefighter's field of vision through augmented reality glasses.

Like this entry?

Learn how to vote for your favorites.

  • About the Entrant

  • Name:
    Alexander Molnar
  • Type of entry:
    team
    Team members:
    • Vitaly Gerasimov
    • Roman Kuklyshyn
    • Henrietta Ban
    • David Gal
  • Software used for this entry:
    Quartus Prime
