SIMA: Advanced Modular System Engineering.
As its name suggests, SIMA is a modular system so that it can be assembled quickly one to one without requiring a strict order and giving the opportunity to grow longitudinally. Product designed and calculated to solve many problems that will have the time to build and build quickly and cheaply, completely modular expandable to any size, with low transport costs and very comfortable, built in reinforced plastics engineering

PRESENTATION OF THE SYSTEM.

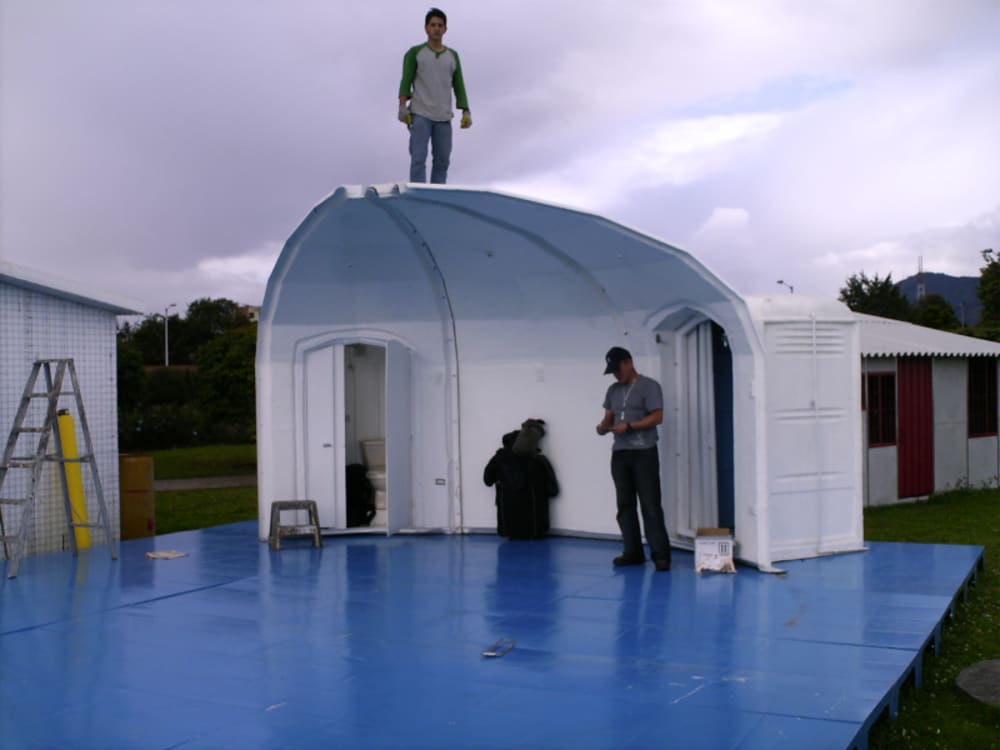

Construction system of the division of one circle 6 meters in diameter is perfectly equal segments called generating curved helmets, designed in modular sections sequentially assembled to get a solid self-supporting structure that is expandable through real plans called hulls.

DESCRIPTION:

The gel coat in our case is the face of the parts in contact with the outside or environment, the resin used is the same as that used for laminates infrastructure to this type of film, it uses standard dicyclopentadiene polyester resin not saturated modified semi-rigid means of reactivity and High Viscosity, High-Strength, Additives Outdoor and degradation by the Action of Ultraviolet Rays, flame retardants and additives para Give the property a the flame retardant, based on the colors obtained with itself in Organic Pigments or Mineral.
Sean Make it the structural reinforcements Fiberglass two different reference types, the first is the multi-filament fabric matte 450 gr / sq mt interlayers, and the second bidirectional fiber woven roving fabric 800 gr / sq mt in the resistance mechanics.

Below is a list of the many applications among many others that can be assigned to SIMA System

Filed under Advanced.
Different sizes Camps
Disaster Shelters Social Care.
Medical or Dental Health Centers
Information Points
Different accommodation capacities.
Dining
Classrooms
Library
Wineries
Housing
Offices
Health Units,
Portable Showers
Portable Toilets
Sink
Vestieres.
Laboratories.
Rooms for Conferences
Toy Library.
Ranger.
Workshops.
Parking.
Command Units.
Cold Rooms.
Ecotourism
Kiosks
Filed under Help.
Stables.
Theatres.
Chapels.
Deposits.
Hostels.
Communication Central.

PROPERTIES.

We discuss the properties of our system as a whole in SIMA general, and the properties of a reinforced plastic in particular, in our case of a sandwich- structure in polyester reinforced with fiberglass, which has significant properties that are reflected particularly of the composites in which constitute its reinforcement.

Physical Properties:
Earthquake resistant
high tensile strength Light
assimilation capacity cyclic
High mechanical strength
dielectric
High impact
thermal acoustic
Resistance to changes in humidity and temperature.
Chemical properties:
Isothermal
u.v inhibitor
Does not corrode
not contaminated
Hidroestable
Supports acids
supports salinity

Washable and repairable
translucent areas
Dimensional stability

Geometric properties:
Modular
freestanding
Aero hurricanes
structurally stable
Optimum heat distribution
requires no foundation
easy assembly sequence

Operating properties:
Is easy to use
no special tools required
Unskilled labor
Is installed in one day. (Sima basic).
Grows lengthwise
applies to various configurations
Stackable
easy storage
Coded in assembly
Interconnect

For Your Cost:
Best Cost / Benefit
Fixed Assets is a long life
