"Double Decker"

Votes: 0
Views: 3547
Transportation
Previous Next

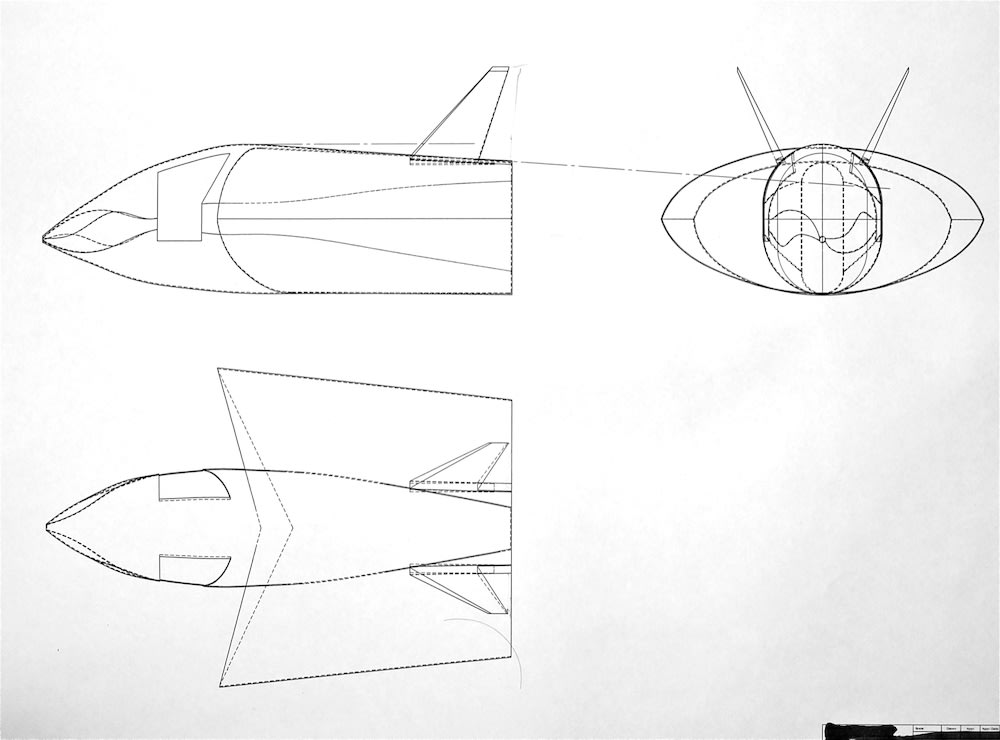

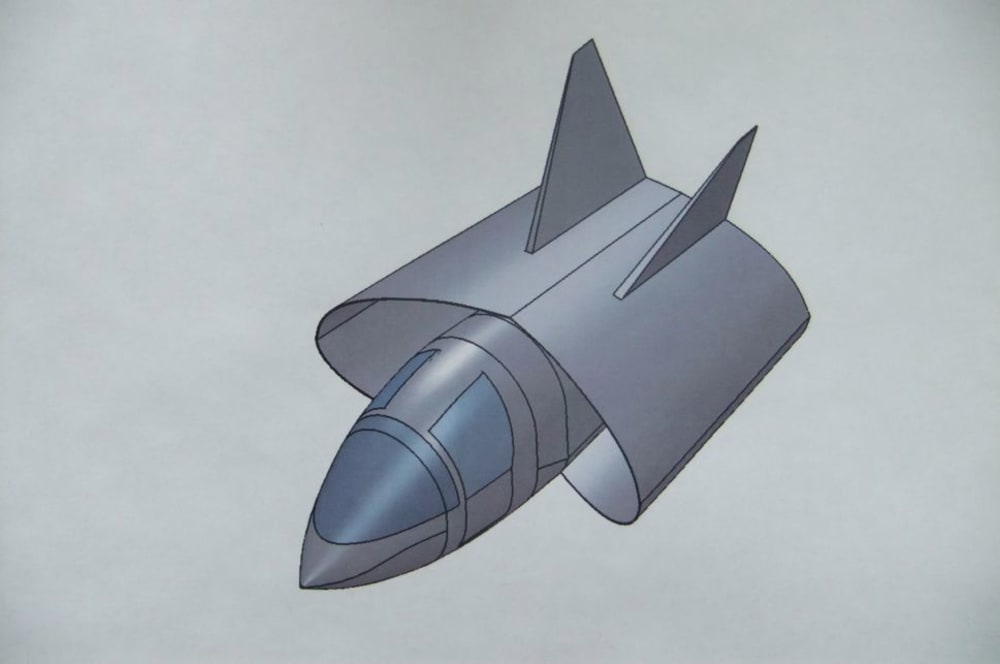

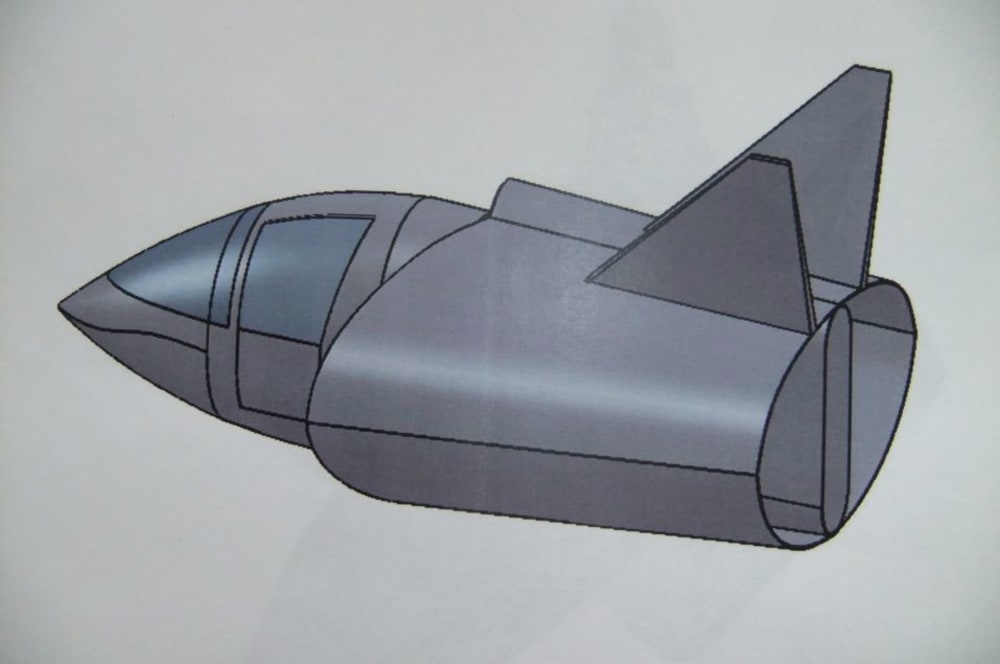

The idea of this design goes back many years. To design a very compact plane, with enough space to carry 4 people in comfort. In the initial model I built CG problems occurred, which led me to a different "double wing" design featured here. The initial model, a glider, flew extremely well once I used a counterweight to balance the plane. In a full size plane this would not have been feasible. The model had an excellent glide ratio. By redesigning the wing the CG problem is solved. Supposedly, this type of wing should cause inefficiencies due to air turbulence within the wing. Then the model should not have flown. The next step is a large scale motorized model to finally prove this concept.

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    Karl Smarsch
  • Type of entry:
    individual
  • Profession:
    Sr. Proj. Manager/Consultant
  • Number of times previously entering contest:
    5
  • Karl's favorite design and analysis tools:
    IMSI design software
  • Karl's hobbies and activities:
    Aircraft/ Flying / Technology in general
  • Karl belongs to these online communities:
    Facebook
  • Karl is inspired by:
    Always seeing opprtunities to design aircraft. Reducing wing span, but a large area for solar cells, Instead of huge wing spans and narrow wing with solar cells, as currently featured. Had the idea 30 years ago. Passenger carrying, and useful for missions on Mars, instead of mini-helicopters?
  • Software used for this entry:
    Solid Works
  • Patent status:
    none
