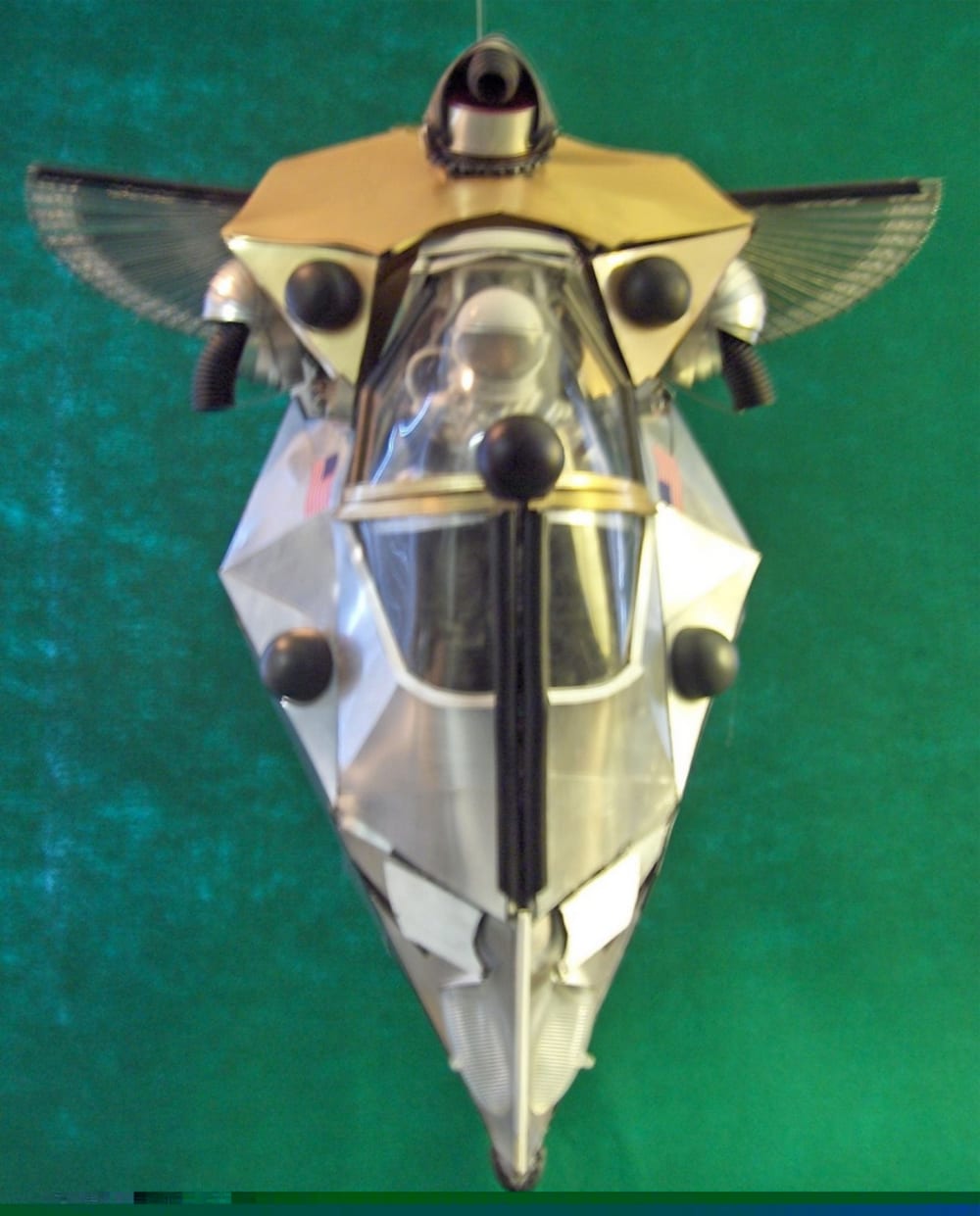

I have created the ultimate flying machine ever build by human hands. I call it the AutoSkyBot. It’s a VTOHLJATT- Vertical Takeoff Hover Landing Jet Arial Terrestrial Transport. Consumer uses are Air Taxi Cab, Air Ambulance, Multi-role Fire Department fire suppression vehicle, SKY crane, Skyscraper construction platform, skyscraper rescue vehicle, skyscraper external fire suppression system, Selective Logging, Shipping Container Automated Delivery Vehicle. Power line maintenance. Handicapped, elderly, special needs vehicle.

Now we've all seen the World Trade Center; imagine a fire on the 60th floor of a building, trapping all occupants of the building above the 61st floor with no means of escape; an aircraft has just cut off the only means of escape. The escape stair wells are burning out of control, and death come for those trappeds. Hauntingly real yes but what about next time? Now imagine a vehicle being able to fly vertically and hug the wall or window of any building. This vehicle will be able to rescue victims safely to the ground and return within minutes to save even more. Now imagine the vehicle transporting a fire hose to the 60th floor and being able to extinguish the fire from outside the building. I have been working on this for 40 years now, and I'm ready to let it go out into the world and change human lives.

The craft uses jets, the exhaust is used for lift vertically and propels it horizontally on three axes. Four engine produce the trust, and if, at anytime an engine fails or (begins to fail) on any one of the lifting three axes engines, the center forth engines exhaust is diverted to that failing engine, thus, a built in redundant fail save system. All three lifting axes have gimballed nozzles, that have a 180 degree of rotation and 90 degree horizontal to vertical axis.

The AutoSkyBot is a automated flying robotic system, point to point transportation. The engines just need enough to create Mach 1 air speed inside the exhaust duct. So to conclude: the craft has no moving parts outside the vehicle and can be placed flat against the walls or windows of any build structure. A verity of utility attachments can be placed on to the forward cabin, and being that it can be flown autonomously without a pilot cabin, the motor box housing can be attached to a cargo container. However two motor box housing would be needed, one at the front and one at the rear. The wings are a unique feature that give the craft greater stability in hover, landing, and high cross wind configurations. I believe that the most unique feature is the five strategically place Super High Density Super Conductive Electromagnetic Harmonic Pulse Wave Guide Motors, essentially super speakers creating a sound wave directed to a singularity in front of the craft while in flight, disrupting the air flow in front of the vehicle flight path, thus reducing drag.
