L3 (Electric Bike)

Votes: 2
Views: 3645
Transportation

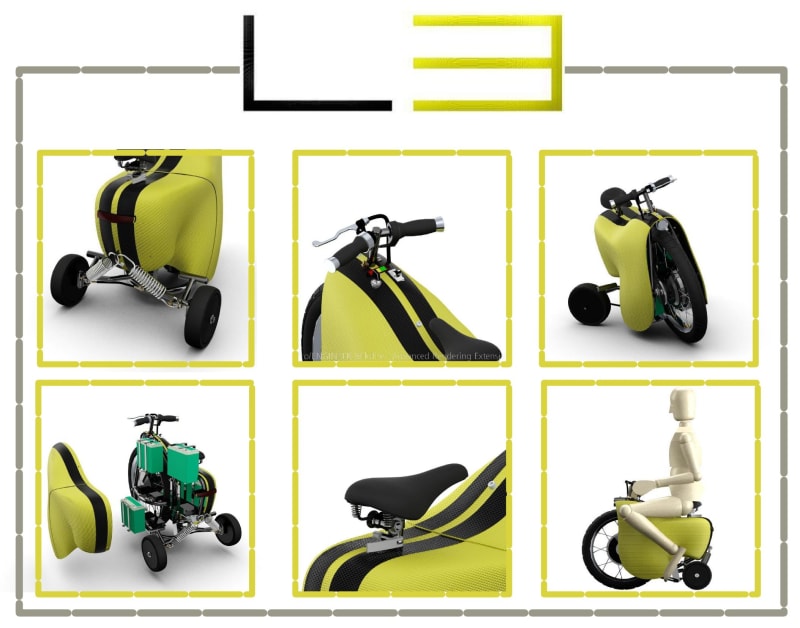

L3 is a one-man urban electric vehicle, designed and built for the tourist sector, you won´t need walk long distances. It can also be used in the industrial and business sector to move indoors.

L3 is more fun with the plan to travel to different cities' tourist attractions as well as being convenient and useful to the user that travels the whole experience without polluting the environment.

Designed for travel 7 hours with a range of 20km on only one charge (at top speed), that can be recharged in 4 hours at least. Thanks to a motor of 1000W and six 12V20Ah Pb acid batteries, L3 can get speeds up to 50Km/h, 300 rpm and 30Nm of torque.

"Visiting and caring for the world"

Driver interface; key on/off, safety breaker, brake lever, throttle and battery level indicator, (the entire handle bar is adjustable)

Front, back and directional lights

The charger is completely integrated; you only need to plug in to your electric socket of 110V.

The combined direction system; the inclination of the driver causes the back wheels to turn and indeed the entire vehicle giving a new fell and drive experience, designed for small curves (turning radius 0.8m).

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    Camilo Parra Palacio
  • Type of entry:
    individual
  • Profession:
    Student
  • Number of times previously entering contest:
    1
  • Camilo's favorite design and analysis tools:
    Pro/ENGINEER
    Solid Edge
    Autodesk 3ds Max
    Catia
    COMSOL
  • For managing CAD data Camilo's company uses:
    PTC Pro/INTRALINK
  • Camilo's hobbies and activities:
    Ride a bycicle, listening music, enjoy the life
  • Camilo belongs to these online communities:
    http://communities.ptc.com/
  • Camilo is inspired by:
    The nature, designs in other context, new technology and the problems of the people.
  • Software used for this entry:
    Pro/ENGINEER Wildfire 5.0
  • Patent status:
    none
