A Novel Counting Device for Domestic Pressure Cooker for Hearing Impaired (CoDePec)

Votes: 335
Views: 11007

The domestic pressure cooker is one of the essential cooking utensils in the Indian kitchens. In the domestic pressure cooker, the whistling indicates the status of the cooking food. The domestic pressure cooker need to be in observation to hear the sound of the whistling. Once the whistling sound is missed to hear, it would lead to undercooking or overcooking with quality degrade. Unfortunately the hearing impaired peoples could not hear the sound of the cooker whistle.

This invention can be used in household cooking for the benefit of hearing impaired community, who are not able to hear the whistling sound of the cooker. This particular invention, involves a counting mechanism for counting the number of times the cooker whistled (weight lifted) and display the status of cooking food.

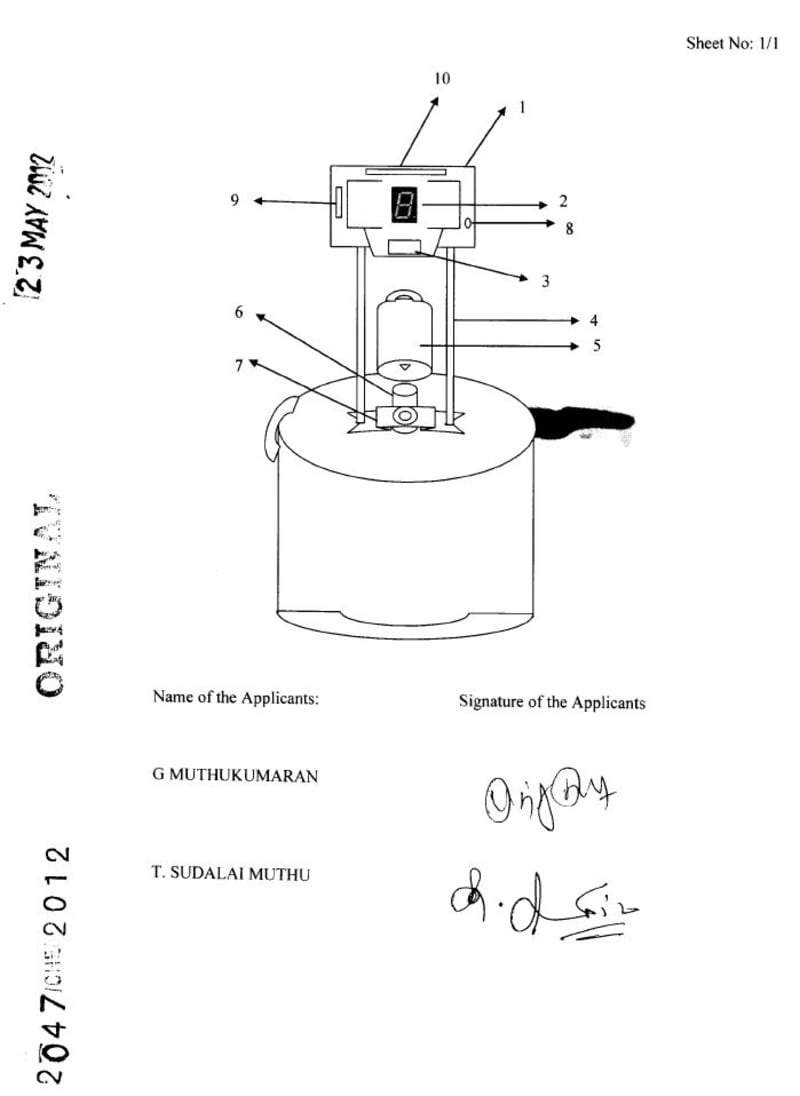

During the cooking process, the whistling unit generates whistle sound and lifts the cooker weight. The lifted cooker weight is sensed by the proximity sensor, and triggers the control unit. When the control unit triggers, the count is increased by one, and display unit displays the count. This automated device consumes low battery power.

  • Awards

  • 2013 Top 10 Most Popular

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    Muthukumaran Gopalan
  • Type of entry:
    team
    Team members:
    G.Muthukumaran
    T.Sudalaimuthu
    P.Prabhakaran
  • Profession:
    Educator
  • Muthukumaran's favorite design and analysis tools:
    COMSOL
  • Muthukumaran's hobbies and activities:
    Real time projects to support the disabled
  • Software used for this entry:
    COMSOL
  • Patent status:
    patented
