A New Generation of Vibratory Diaphragm Pump - Sprayer

Votes: 1
Views: 3892
Medical

Summary
A New Generation of Hydraulic Vibratory Pumps is a reliable, highly efficient, and low-cost hydraulic pump and sprayer, offered in several variants, that disperses fluids and liquids with high and low viscosities.
Purpose & Benefits• Dispenses water solutions, viscous water-oil emulsions and paint.
• Minimizes energy consumption while maximizing application.
• Works with various fluids in which diaphragm and piston pumps cannot work.
• Accommodates various domestic and commercial applications.
• This technology allows to converts an electric drill into an effective liquid and fluid dispenser.
Problems Solved
The new generation of Hydraulic Vibrating Pumps uses unique vibrating cavitation technology effectively to allocate liquid assets and liquids with the minimum effort. This innovative product includes the working cylinder with a liquid entrance aperture and a liquid exit, a rod stretched in the cylinder, the plate - fixed to a rod activator which moves in the cylinder.
Detailed Description & Features
The activator influences on diaphragm which is established in the cylinder on the day off an aperture from the cylinder. Moving of the activator and its influence on diaphragm creates pumping effect. The pumping mechanism of fluctuation acting connected with a rod to move a rod concerning the working cylinder. The sliding activator creates cavitation in a beefy liquid to increase complete ease of transfer of a liquid. The hydraulic pump-spray can be offered in several various versions for broad range of applications.
In industrial, medical-sanitary, agricultural, cosmetic and science fields, it is necessary to disperse liquids and fluids. Currently, a variety of pumping devices are available for accomplishing this task. Unfortunately, certain design features of these piston pumps do not allow effective pumping of liquids with higher viscosities. When liquids and fluids of these types are pumped, the overall productivity or volume of the fluid pumped per minute decreases while the pump drive mechanism’s energy consumption significantly increases, which is highly inefficient.
We possess the accessible information on a wide range of technical application of offered technology Detailed Description & Features
The hydraulic pump - sprayer can be offered in several different variants for a wide range of applications.
Image Info

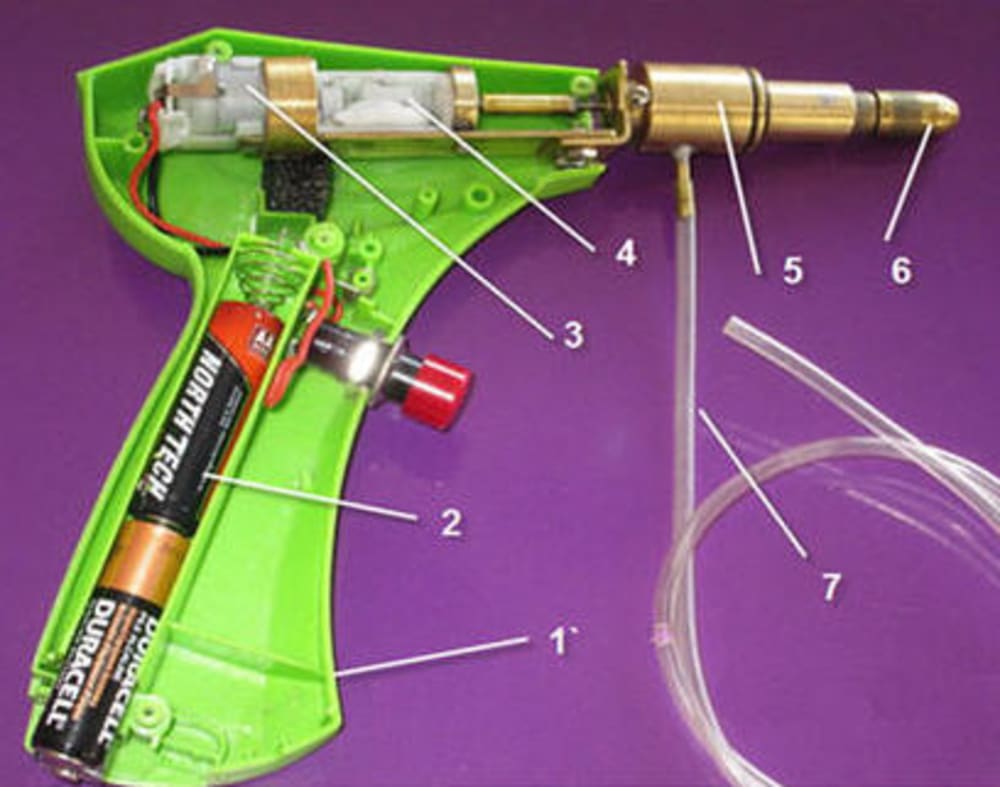

FIGURE 1 Shows Vibratory Diaphragm Pump-Sprayer
1) Plastic Case, 2) Battery, type AA- 4x1.5 v, 3) Electric motor, 4) Face Gear, 5) Vibratory diaphragm pump, 6) Nozzle,7) Plastic hose 4 Fit with productivity up to 350ml/min.

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    Grigori Lishanski
  • Type of entry:
    individual
  • Profession:
    Scientist
  • Grigori's favorite design and analysis tools:
    Computer designing of devices,
    Production and testing of pre-production models
  • Grigori's hobbies and activities:
    Sports, fishing,travel
  • Grigori belongs to these online communities:
    facebook
  • Grigori is inspired by:
    Love to knowledge and scientific search
  • Software used for this entry:
    AutoCad2004
  • Patent status:
    patented
