Reciprocating Electromagnetic Energy Harvester

Votes: 7
Views: 4481
Previous Next

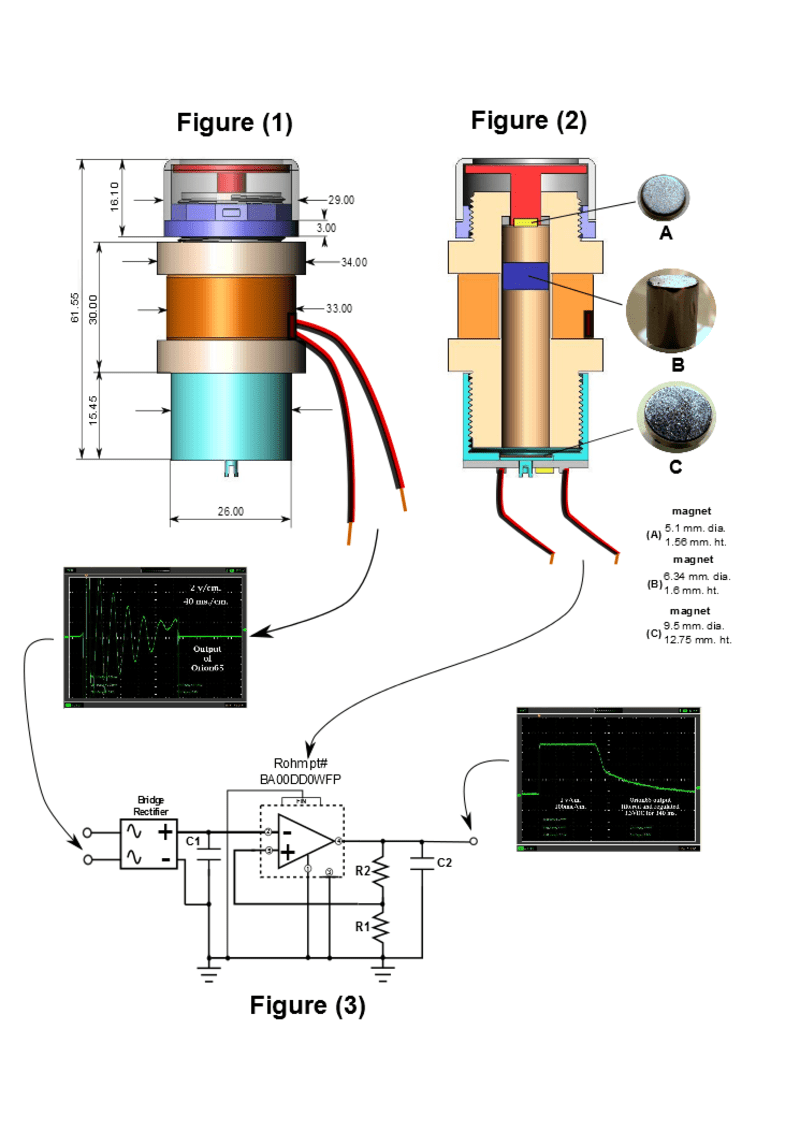

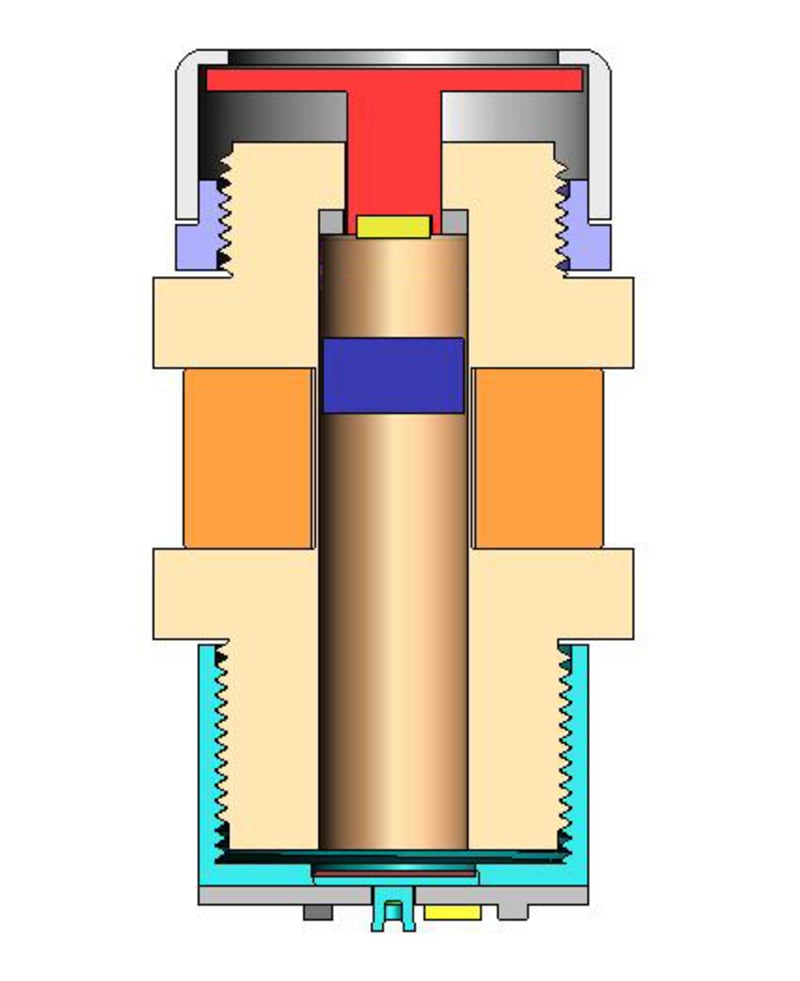

A short burst electrical energy harvesting generator in one embodiment including a reciprocating magnet, under the magnetic influence of dual repelling magnets, whose travel path oscillates within a centered through hole coil bobbin thereby producing an induced voltage at the coil terminals. This induced voltage can be utilized to power battery-less and wireless remote communications control function such as ISM Band wireless transmitters and other battery-less electronic device applications.

Video

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    David Deak
  • Type of entry:
    individual
  • Profession:
    Scientist
  • Number of times previously entering contest:
    1
  • David's favorite design and analysis tools:
    SolidWorks and Inventor
  • David's hobbies and activities:
    art, travel, inventing, photography
  • David is inspired by:
    The desire to try innovative solutions to common problems.
  • Software used for this entry:
    Solid Works
  • Patent status:
    pending
