Reflex: An Unobtrusive Walking Aid

Votes: 0
Views: 22142

From an accessory to a depressing and impersonal clinical tool, the walking cane had unfortunately taken a turn into an emblem for the old and challenged. Essentially Reflex seeks to redefine that for the elderly and more.

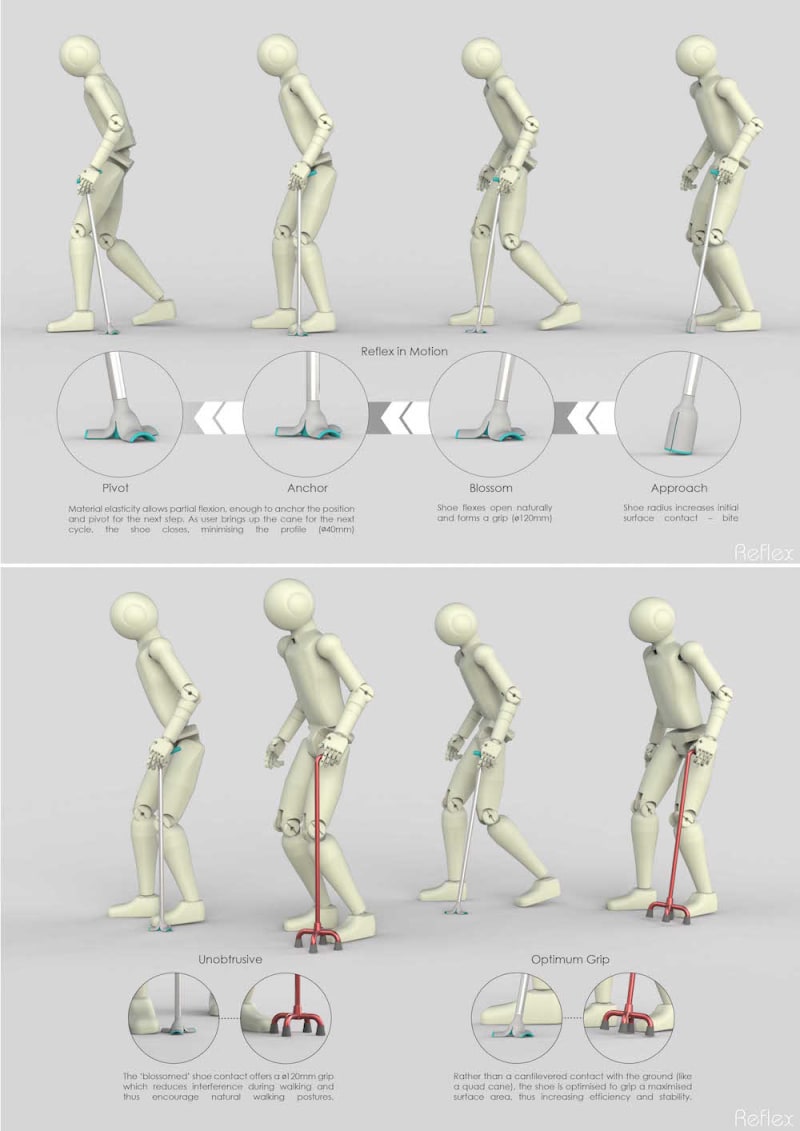

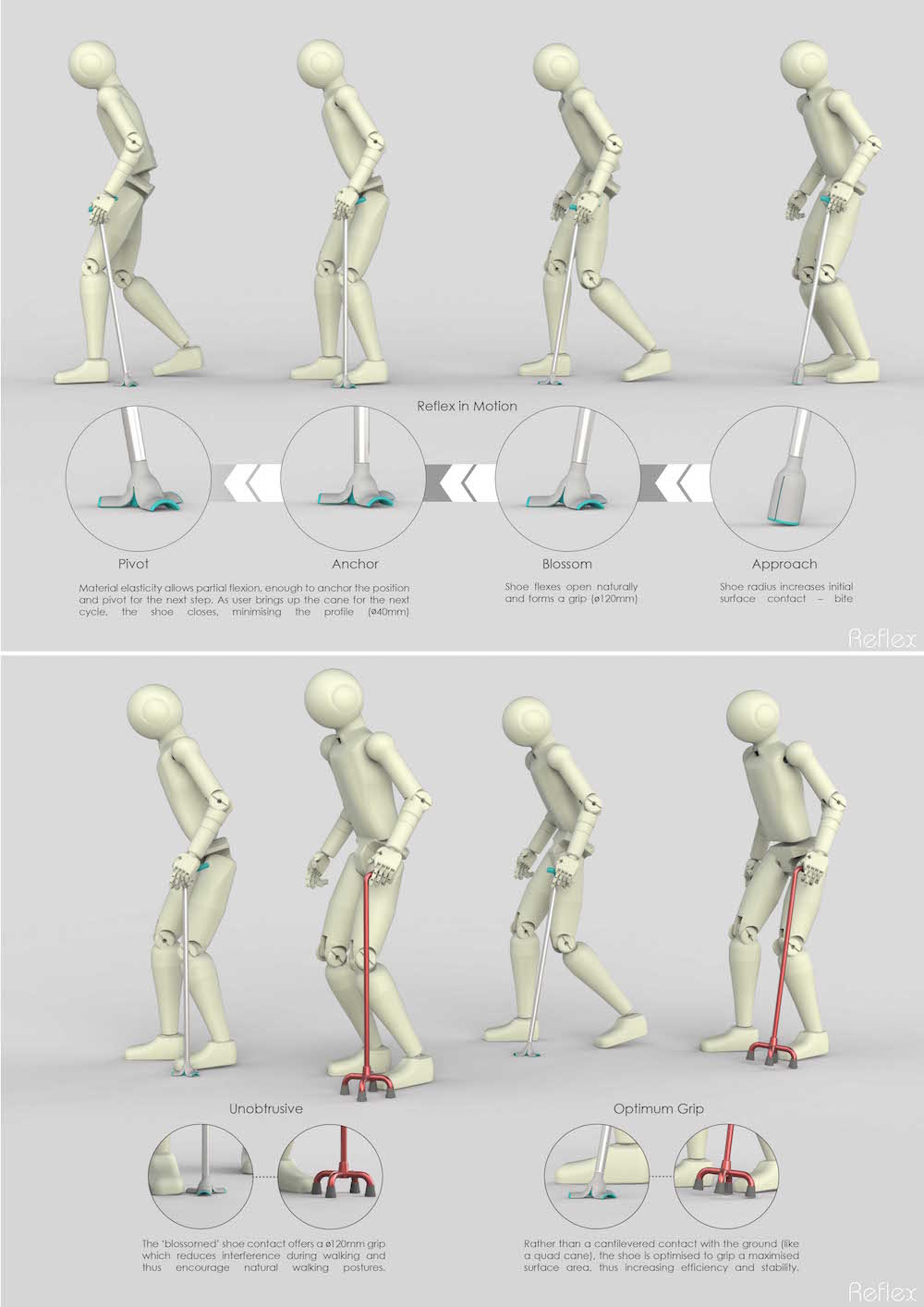

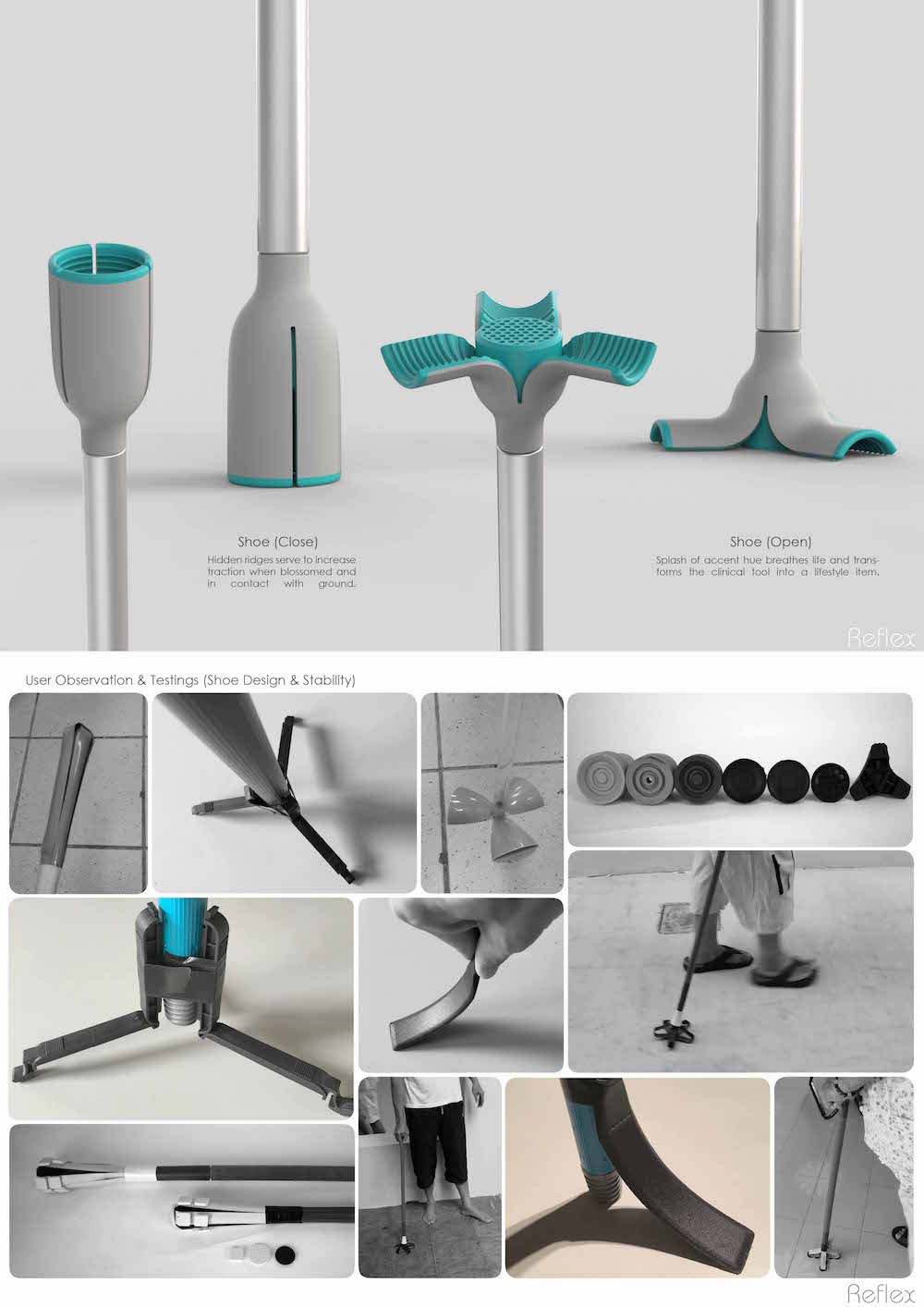

Emphasising on the notion of dynamic walking, Reflex spots an elastic shoe design which ‘blossoms’ on contact with the ground. Such not only increases the surface contact, thus making it more stable, but also serves as a reliable anchor for the next step. This motion too cushions the impact as a result of the cane-ground contact, more so when the user leans on the aid.

During the walking transitions, the blossomed profile springs right back into a streamlined design which is shyly unobtrusive. This ensures that the movement is natural and dynamic.

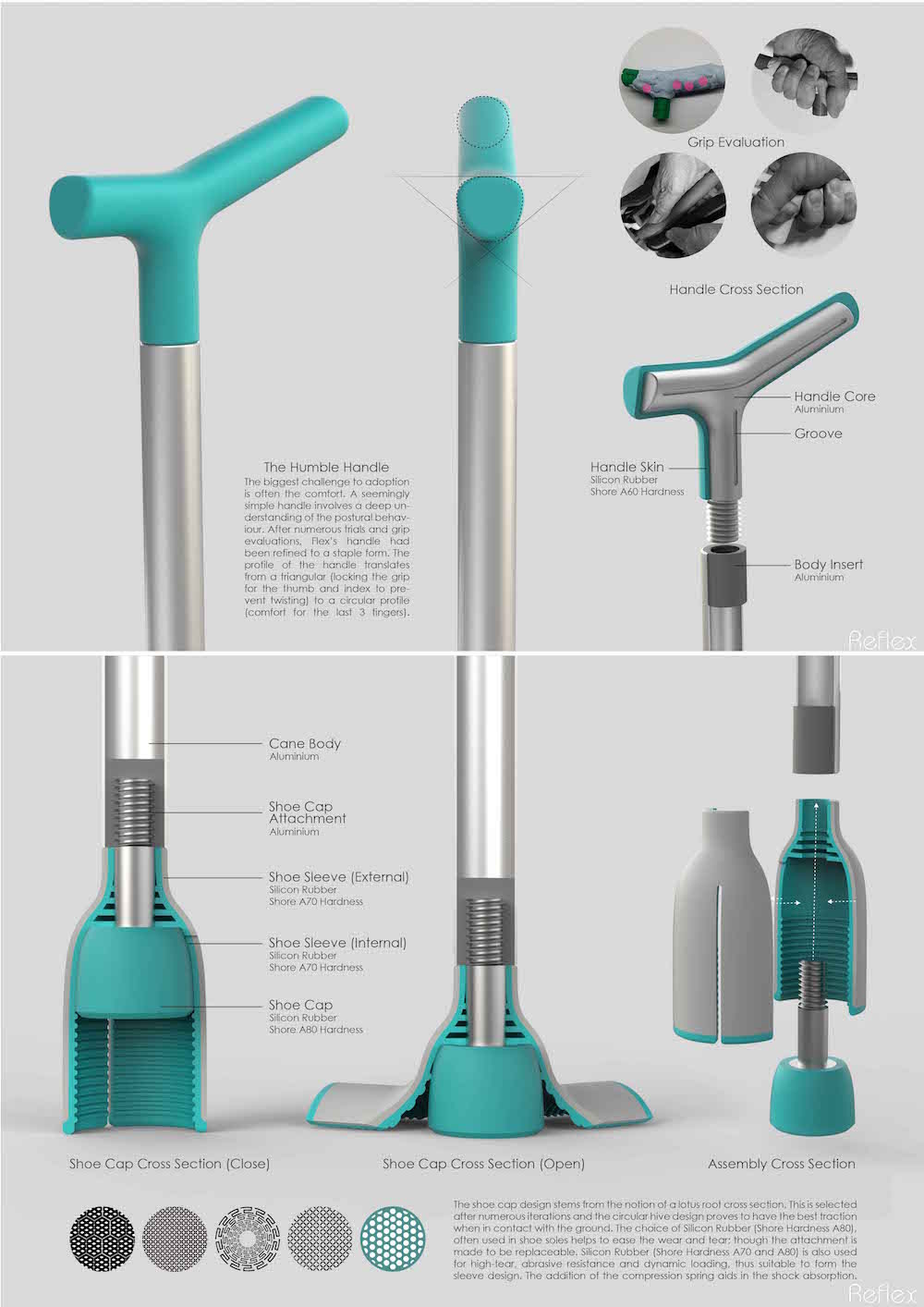

Looking closer, the handle embraces the natural posture of the elderly and spots an inviting grip with generous curvatures at pressure points where they tend to hold. No longer will one be uncertain about the next step he/she takes for Reflex offers comfort, safety and assurance, all within a simple package.

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    Kevin Chiam
  • Type of entry:
    individual
  • Profession:
    Student
  • Kevin is inspired by:
    I am often inspired by the interactions between people and the encompassing environment. While actions or reactions may be subtle, it can often reveal thoughts, intentions and motivations behind the 'actors' in place. I find that when designs leverage on behaviour and motivations, the solutions tend to be more tangible and meaningful.
  • Software used for this entry:
    Rhinoceros and Keyshot
  • Patent status:
    none
