Worm Gear Fishing Reel

Votes: 1
Views: 529
Consumer Products
Previous Next

TEN COMMANDMENTS OF US PATENT #5,431,606:

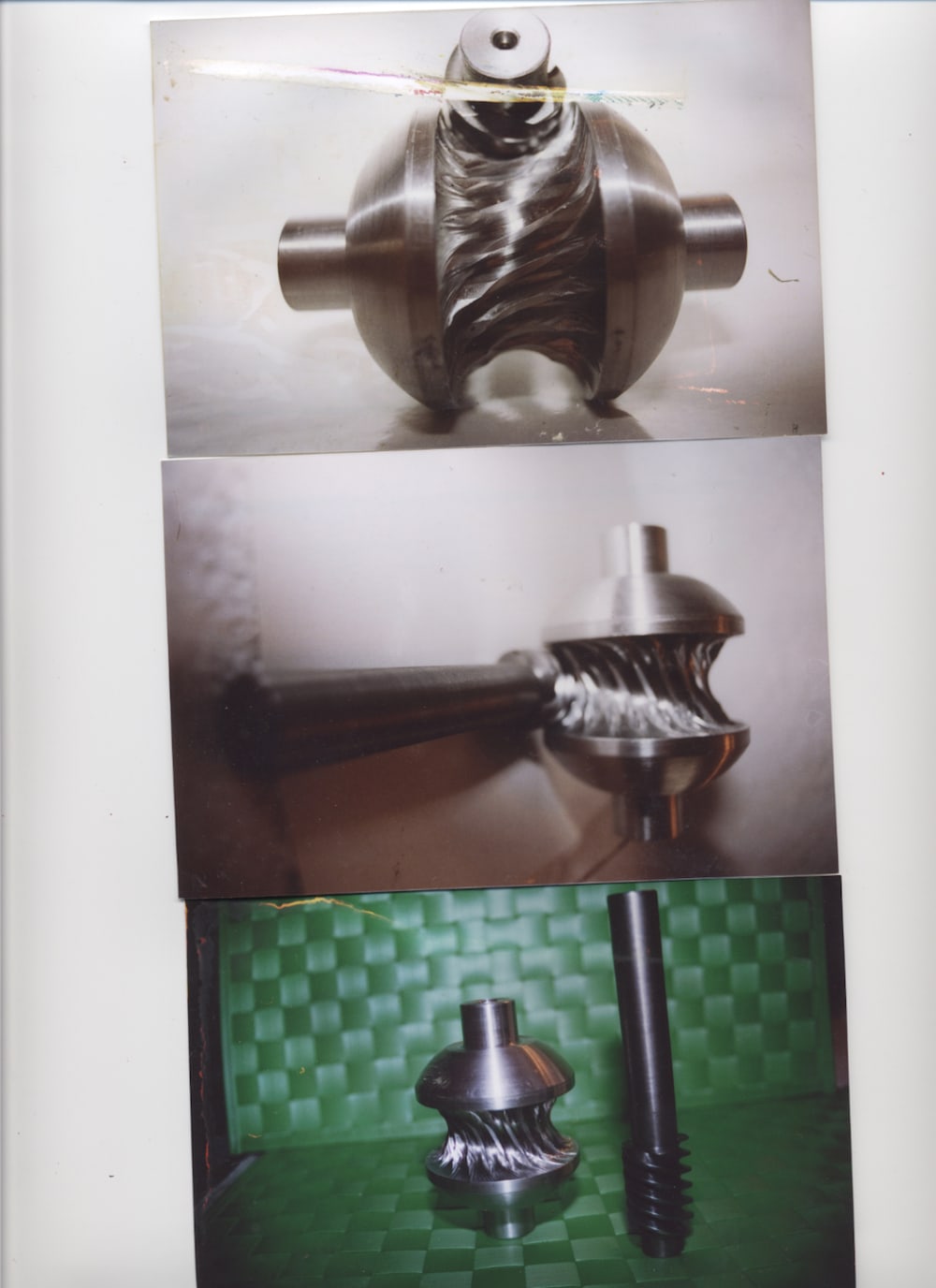

I. Two worm gears are series mounted.

II. The worm wheel is mounted in bearings. not rigidly mounted!

III. The input drive worm gear provides a point of locus & inital inertia.

IV. The two gear set is 94% efficient statically & dynamically it is 98%+
efficient & reduces mass & cost.

V. Never a dry start as the input drive gear resides in a lube bath.

VI. Total circular envelopment of 360 degrees.

VIIi. Triangulating constantly as three gear teeth are always meshing!

VIII. The gear set develops torque from this series gear mount.

IX, The output gear, a worm wheel, is able to adjust for nominal functions from thermal expansion from engineering mechanics.

X. The gear set reduces mass and cost and increases work and torque making it very attractive financially, which gives it a boost up with a cost advantage, much cheaper to produce.

An Inventor US Patent 35,431,606! David C. Bingham. 3150 Honey Bee Lane,, Oxford,, MI. 48370. Phone#248-236-0852. Blog superiorgear.blogspot.com



Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    David Bingham
  • Type of entry:
    individual
  • Profession:
    Engineer/Designer
  • Software used for this entry:
    AutoCAD
  • Patent status:
    patented
