Design Statement and Working:

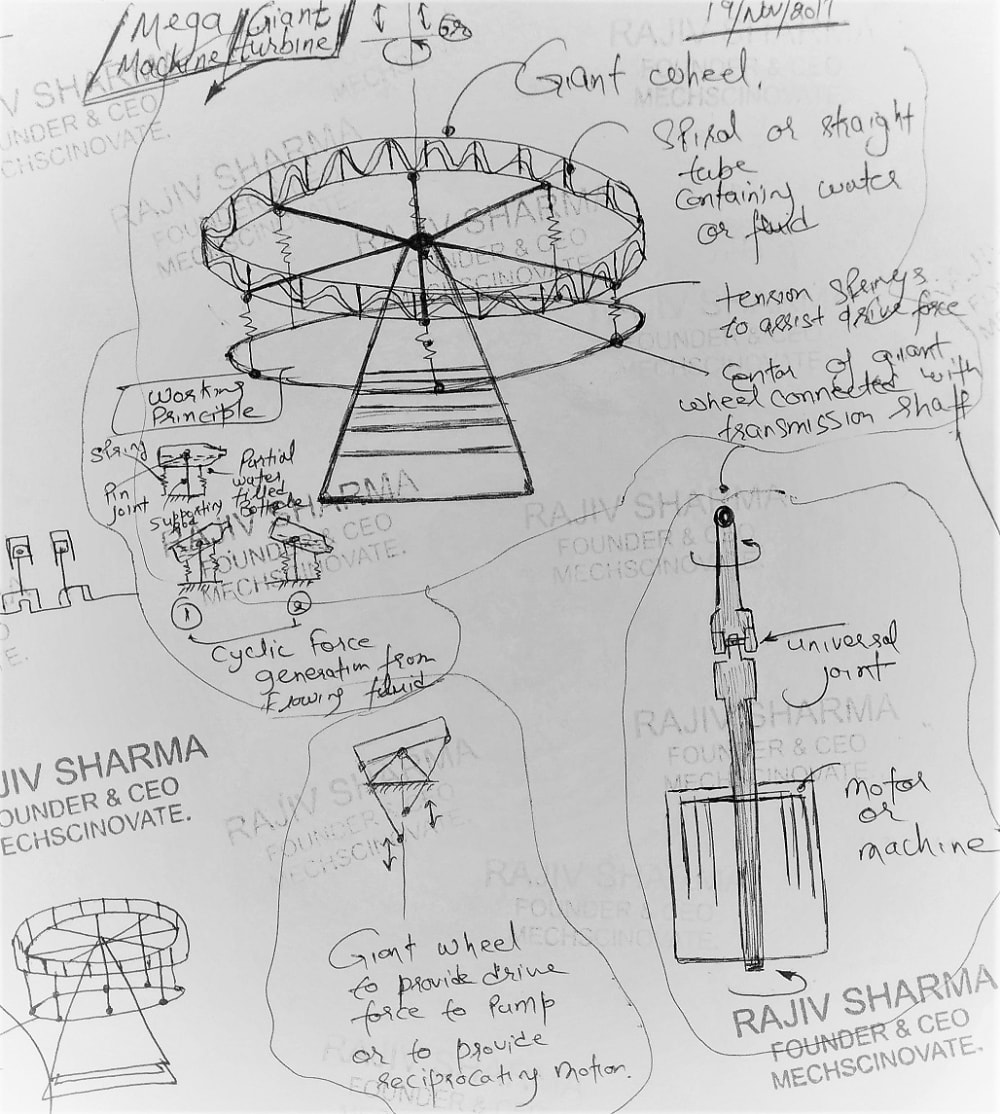

In the drawing hinged partial water filled bottle is not able to balance itself because of store and restore cycle developed by water weight wave energy or and tension spring drive force. In the same way water or fluid flowing inside the spiral or straight tube that is covering the complete periphery of a mega wheel (flywheel, disk) producing the drive force or torque to rotate the wheel about its own axis. To transmit the generated mechanical power from mega wheel to preferred machinery like generator, pump etc. a transmission shaft is connected. In the below part of the drawing another mechanism has been designed to produce the reciprocating power from the same mega turbine.
ABOUT THE ENTRANT
Name: Rajiv Sharma
Type of entry: individual
Number of times previously entering contest:3
Rajiv's favorite design and analysis
Imagination, hand sketching, Auto-CAD, Pro-E, Solid works, CATIA etc.
Rajiv belongs to these online communities:
www.research-andme.com, Facebook /Mechscinovate
Rajiv is inspired by:
Nature, Economic conditions, Less resources, Hard-work.
Software used for this entry:
Sketching, Hand Drafting, Imagination, Creativity
Patent status: none
