Wind Operated Lighting Pole

Votes: 1
Views: 54

As global warming increases, renewables are becoming a solution to provide the world with electricity while limiting the effect of fossil fuels emissions. Streetlights on highways are sources of electricity usage that consume a significant amount of energy. The cost is not only associated with the lights but also due to very long cables to satisfy. This study provides a comprehensive solution utilizing Savonius vertical axis wind turbines (VAWT).

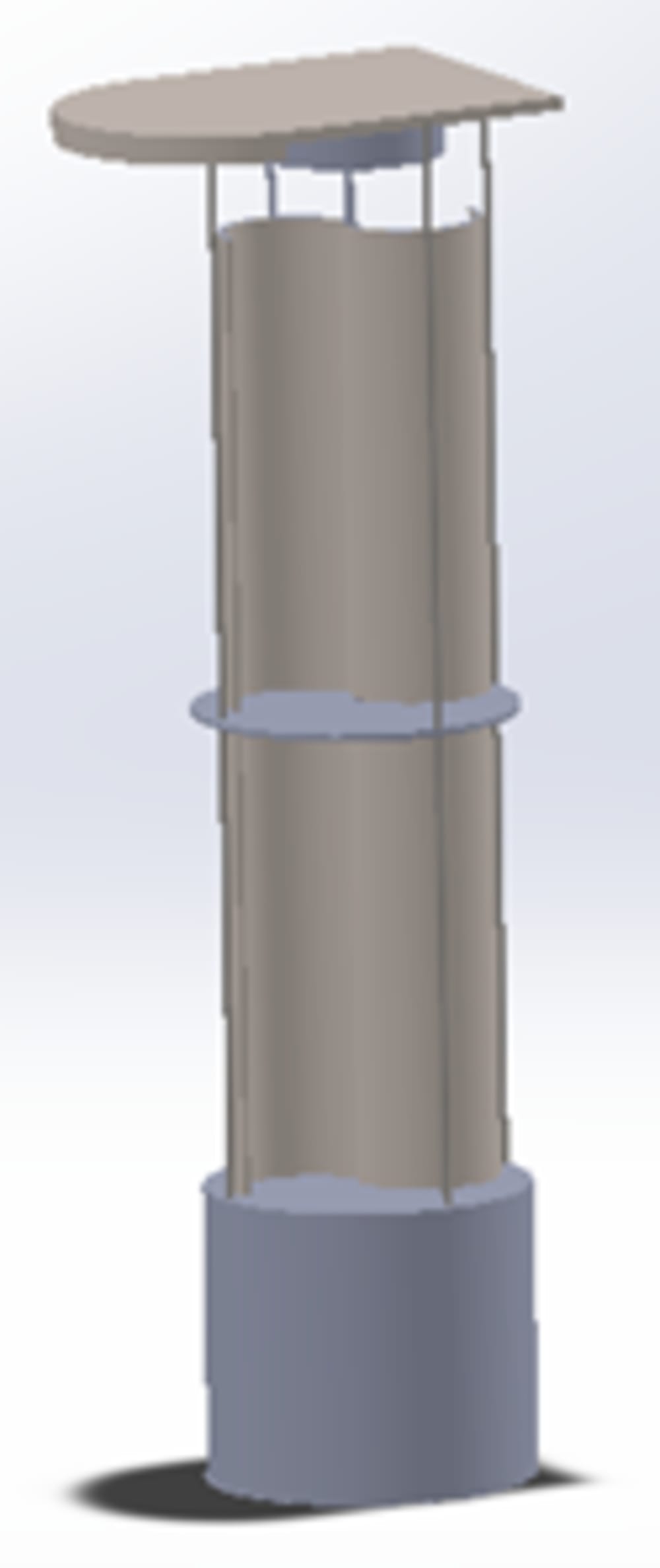

In this design, the light pole is the turbine. The pole is split into 2 sections. The upper half is rotated using normal incoming wind. The bottom half of the pole utilizes the wind gusts coming from the fast-moving cars on the highway. Both sections are connected to the generator with the same shaft supplying the required power. The turbine's body is epoxy coated stainless steel with a cover for the bearing to overcome pitting and corrosion issues while maintaining low weight for higher rotational speed.

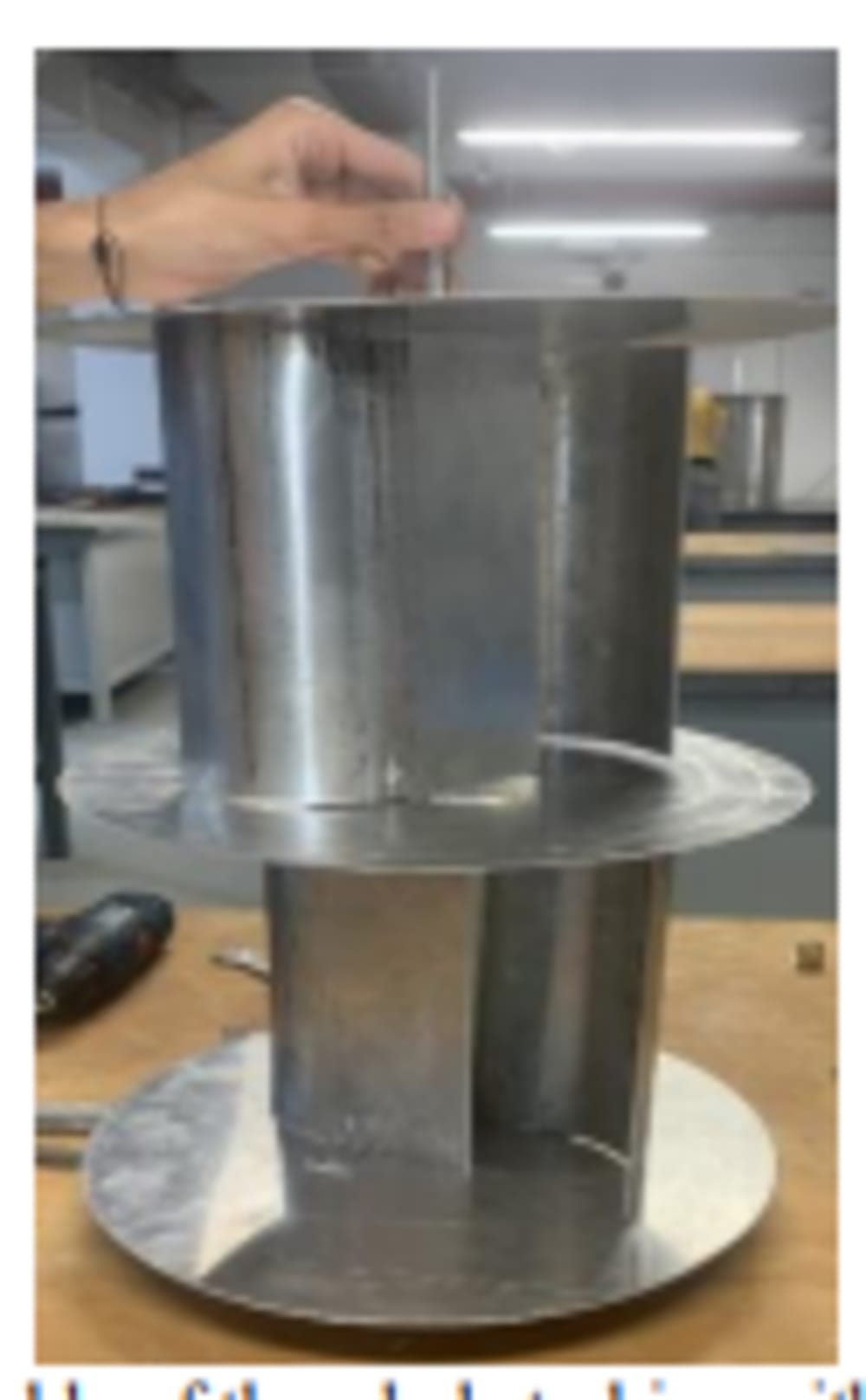

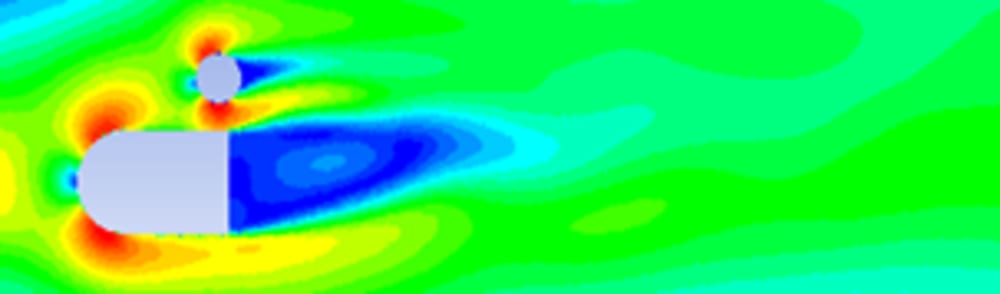

To make sure that this design is operational, computational fluid dynamics (CFD) was utilized to simulate the setup. Some assumption were made for the number of passing cars to be 1 car moving at 80 Km/hr every 30 seconds. Taking Cairo-Suez highway with a naturally occurring wind speed averaged at 7 m/s It was found that a single turbine pole can provide enough energy to power 16 light poles. A prototype was then manufactured and tested, it showed similar results to the simulation.

For the complete study do not hesitate to contact me
This email address is being protected from spambots. You need JavaScript enabled to view it.

Voting

Learn how to vote for your favorites.

  • ABOUT THE ENTRANT

  • Name:
    Ammar Ewis
  • Type of entry:
    individual
  • Profession:
    Engineer/Designer
  • Ammar is inspired by:
    Since my university days, I was always passionate about the future of our planet. Thinking about how to solve global warming was always one of my passions. Renewable energy is one of the major solutions with the highest potential to solve the energy crisis and simultaneously save the planet. This gave me the inspiration to always think about how can i incorporate renewable energy in any application I see. This is when I thought about this light pole when traveling, generating enough energy for it while at the same time cutting costs.
  • Software used for this entry:
    ANSYS Fluent
  • Patent status:
    none
