Take advantage of the 12,900 km3 of water vapor that exists in the atmosphere in the form of water vapor or mist based on the condensation of water vapor as water nursery (released by plant transpiration and also from the soil, vegetation, lakes, rivers and seas due to the effect of solar radiation) during dry seasons, implementing devices capable of harvesting or capturing, filtering, purifying and storing drinking water for population centers in desert regions or with prolonged droughts worldwide.
2. Target audience
Rural, intermediate and urban population centers in 39.70% of the territory covered by arid, semi-arid and dry sub-humid areas of the Earth.
2 Billion People (Approximately 1 in 3 inhabitants of the planet), the majority in developing countries.
3. Problem to solve
Provide the supply of drinking water to the world's population centers, which are aggravated when there is no rainfall.
4. Proposed solution
Water is always moving around, through and over the earth in the form of water vapour, liquid water and ice being recycled by the water cycle in the troposphere from 0 to 5 and up to 12 km. Tall.
Half of the atmospheric water is concentrated in the first 2 kilometers, allowing this to develop devices that repel humidity and promote the formation of droplets by condensation, which will then precipitate into the water treatment system.
5. Socio-Environmental Impact
Minimize the negative risks caused by water pollution due to wastewater discharges in streams, rivers, lakes and seas, unplanned human settlements and solid waste disposal.
Low quality water has an impact on high costs for the treatment of water used for human consumption, as well as to evaluate the operation of a wastewater treatment plant that would imply high costs.
Social impact: Improve health, source of life, landscape configuration.
6. Prototype operation

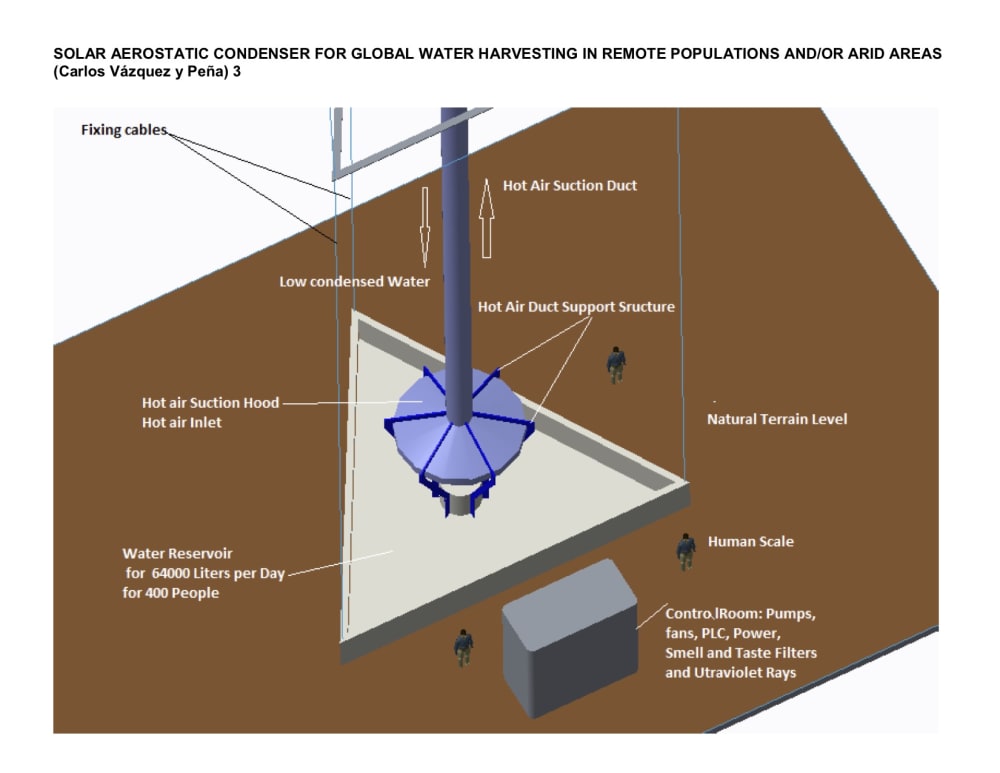

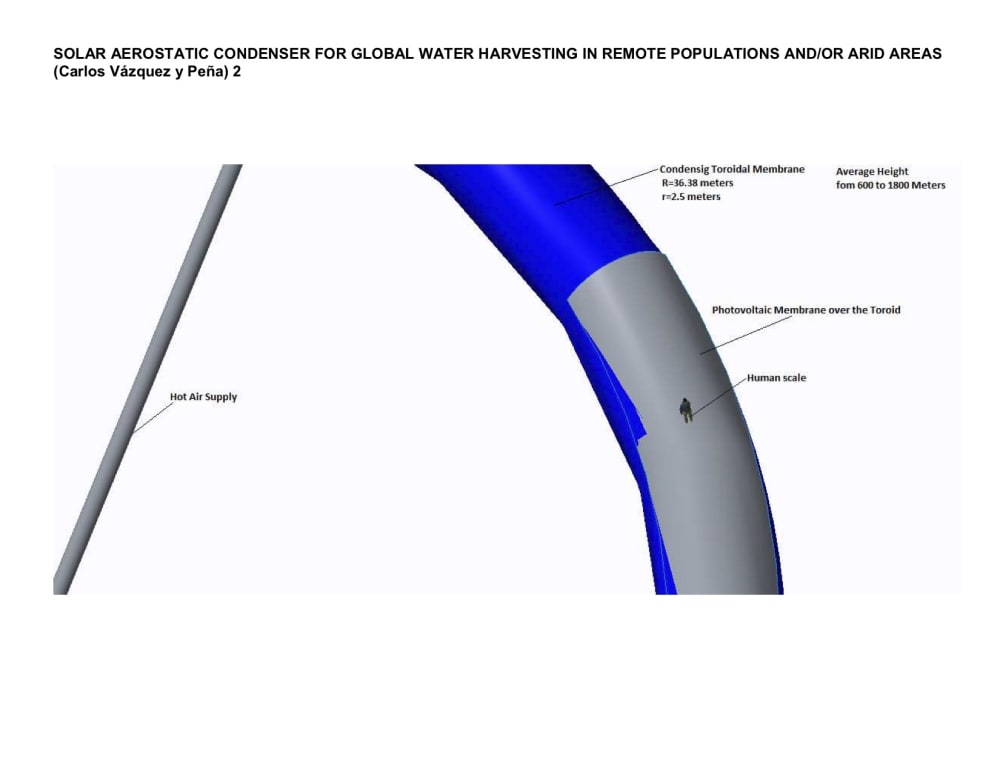

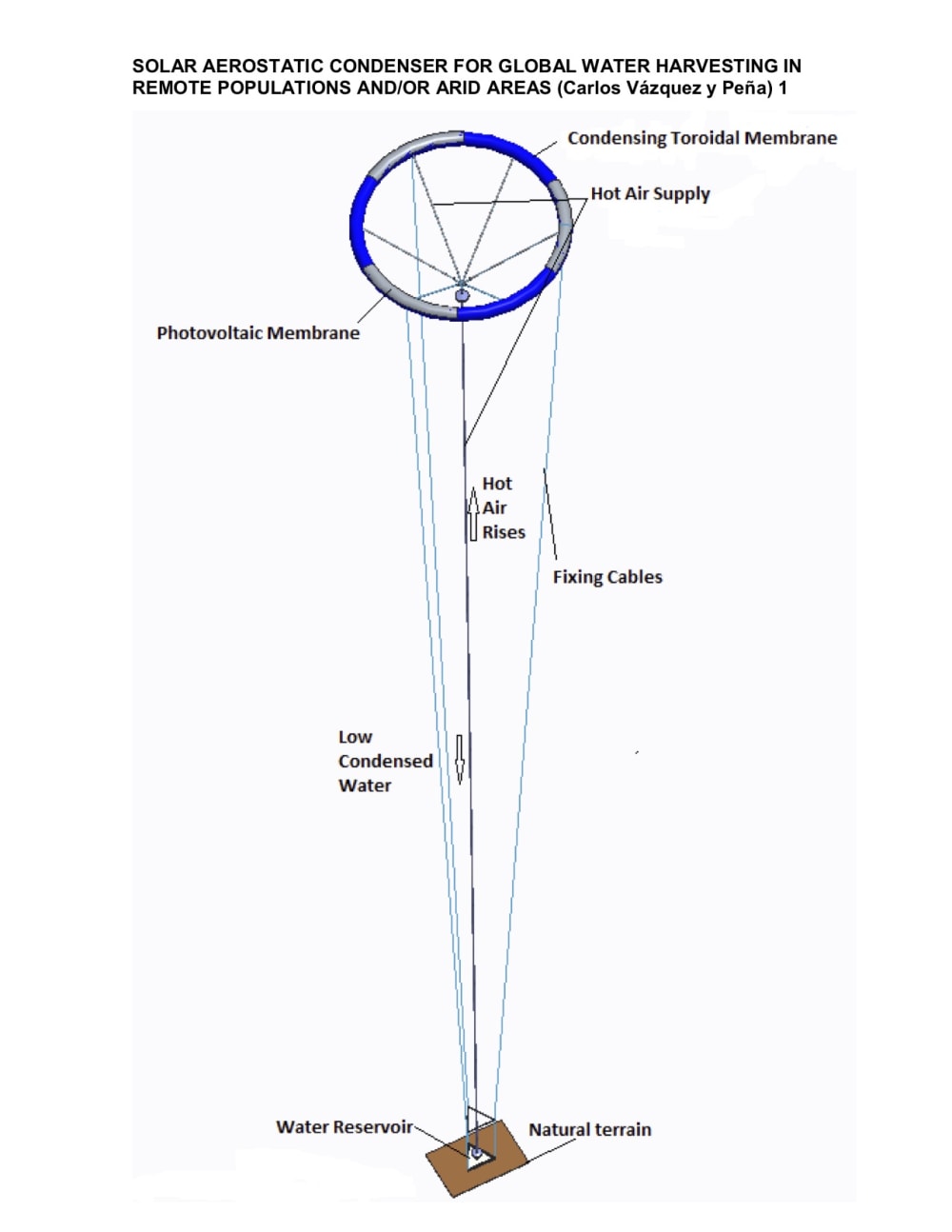

To harvest sustainable drinking water from water vapor in the atmosphere from 0 to 2 kilometers high, a torus-shaped membrane-based device is required that will condense water vapor from a heat exchanger and will take it by gravity to a water treatment unit, where it is purified thanks to solar energy and mounted solar photovoltaic panels and/or wind turbines, as well as filters for solids, filters for odors and flavors based on self-cleaning activated carbon and a UV unit, on the toroid and stored for consumption in tanks with a capacity of 5,000 liters at ground level that will supply drinking water for 400 people per day, purifying 8 cubic meters per hour. The scaling will be according to the population center served.
With the surplus solar energy from purification, non-potable water will be pumped to an elevated water tank that will serve to irrigate crops or other needs of the population.
SECTORS AND SYSTEMS CONSIDERED AND LINES OF ACTION
Sector / System Adaptation Planning Horizon (Years)
**Agricultural Sector 1-20
*Agriculture, Livestock, Fishing 1-20
Coastal Hunting and Fishing 5-25
Ground or Floor 5-100
Water Resources 10-100
Coastal Zones 10-100
Mountain Zones 10-100
