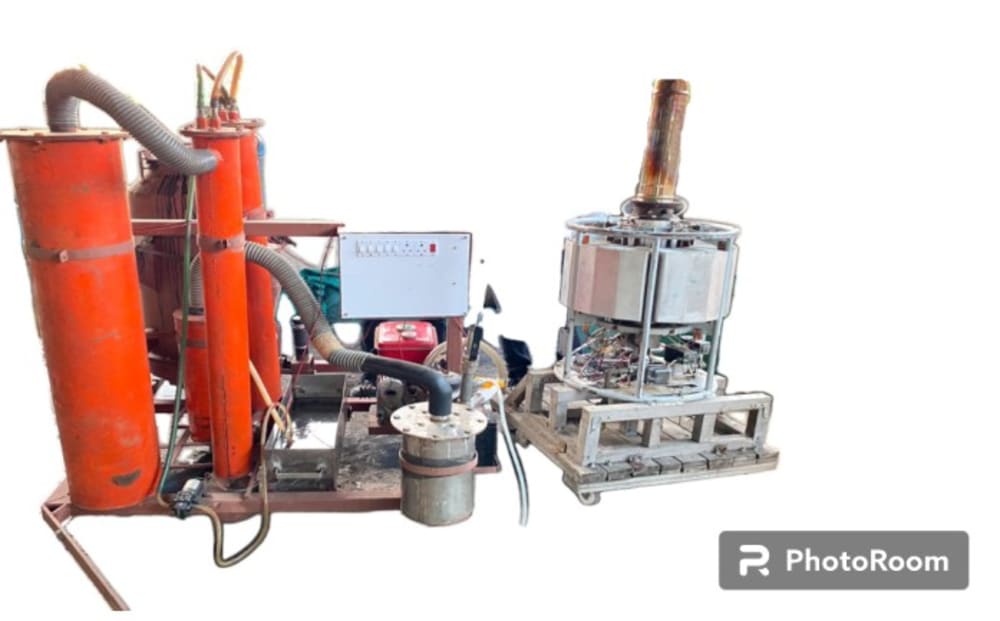

Our integrated solution comprises of Biomass gasifier and TMSG-DC on a single skid which will be a portable gas based generator works on biodegradable waste. It is a renewable based cleantech product suitable for household applications.

TMSG – DC is a generator that works on Natural Gas or LPG and producing the electricity without any moving parts using Seebeck effect i.e. if there is a sufficient temperature difference between the materials (PN Junction diode) EMF would be generated across the terminals.

Gasification is a process that converts organic or fossil-based carbonaceous materials at high temperatures (>700°C), without combustion, with a controlled amount of oxygen and/or steam into carbon monoxide, hydrogen, and carbon dioxide. The carbon monoxide then reacts with water to form carbon dioxide and more hydrogen via a water-gas shift reaction. Absorbers or special membranes can separate the hydrogen from this gas stream.

Simplified example reaction:

C6H12O6 + O2 + H2O → CO + CO2 + H2 + CH4 + other species
