Swim Exercise Machine

Votes: 10
Views: 3846
Medical
Previous Next

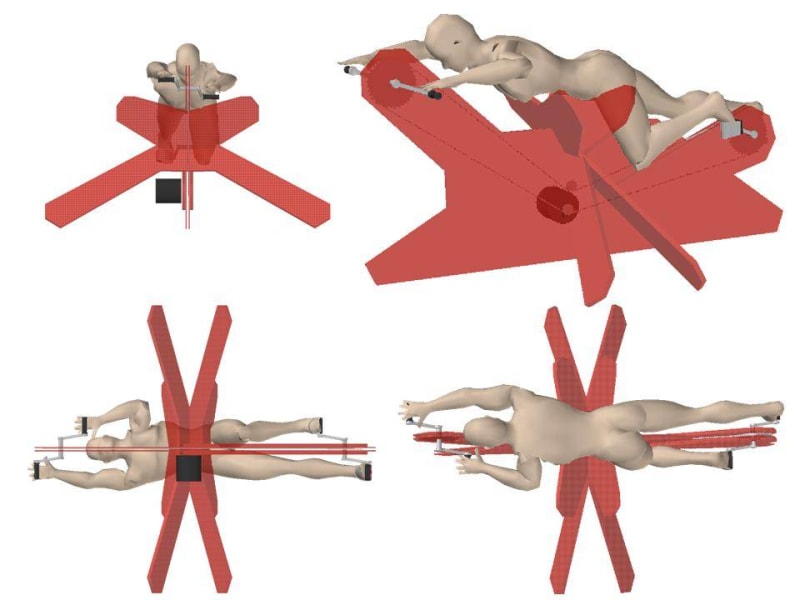

The Trekr Dry-swim Machine© is designed to replicate the motion of doing the “doggie paddle” stroke during its use. It exercises all muscle groups at the same time, and provides the same benefits obtained by swimming in water. The design of the angle of the user could be varied from full upright to the prone (shown) positions.

The exercise machine is comprised of two bicycle style crank-sets: one set for the arms and the other for the legs. The crank-set for the legs has pedals that lock to the user’s feet, like bicycle toe-clips. The two crank-sets are synchronized by either a roller chain or a toothed belt drive. The drive powers a generator or alternator that provides adjustable resistance for the exerciser.

The generated power can be put to use with a fan to keep the person cool while exercising. In addition, any excess power can be used to charge batteries or fuel-cells. It is an ideal exercise machine to use in any weightless environment (as in the International Space Station) as it does not directly rely on gravity to function.

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    Eric K. Rugg
  • Type of entry:
    individual
  • Profession:
    Engineer/Designer
  • Number of times previously entering contest:
    never
  • Eric K.'s favorite design and analysis tools:
    NewTek Lightwave 3D; Adobe Illustrator, Premier, Photoshop, Page Maker; OpenOffice.
  • For managing CAD data Eric K.'s company uses:
    None
  • Eric K.'s hobbies and activities:
    Hunt, fish, sculpt, video, photo, graphic design
  • Eric K. belongs to these online communities:
    None
  • Eric K. is inspired by:
    Designs are like your children, you hope that when you send them out into the world, they will do great things. The idea of having any of my designs or inventions come to fruition, is the fulfillment of what our goal in life should be: to leave the world a better place for having been in it.
    Ideas happen, and then evolve and materialize when modeling in 3D; NewTek LightWave Modeler RULES!!!
  • Patent status:
    none
