Portable Emergency Shelter

Votes: 13
Views: 4375
Safety and Security
Previous Next

The Trekr Dodeca Shelter© is a design for a dome structure that is strong, poses less wind resistance to a comparable flat-sided structure, and can be easily transported and erected. It is similar in design to a geodesic dome or a low-order tessellated sphere, but it is a much superior structure as it is more practical to build.

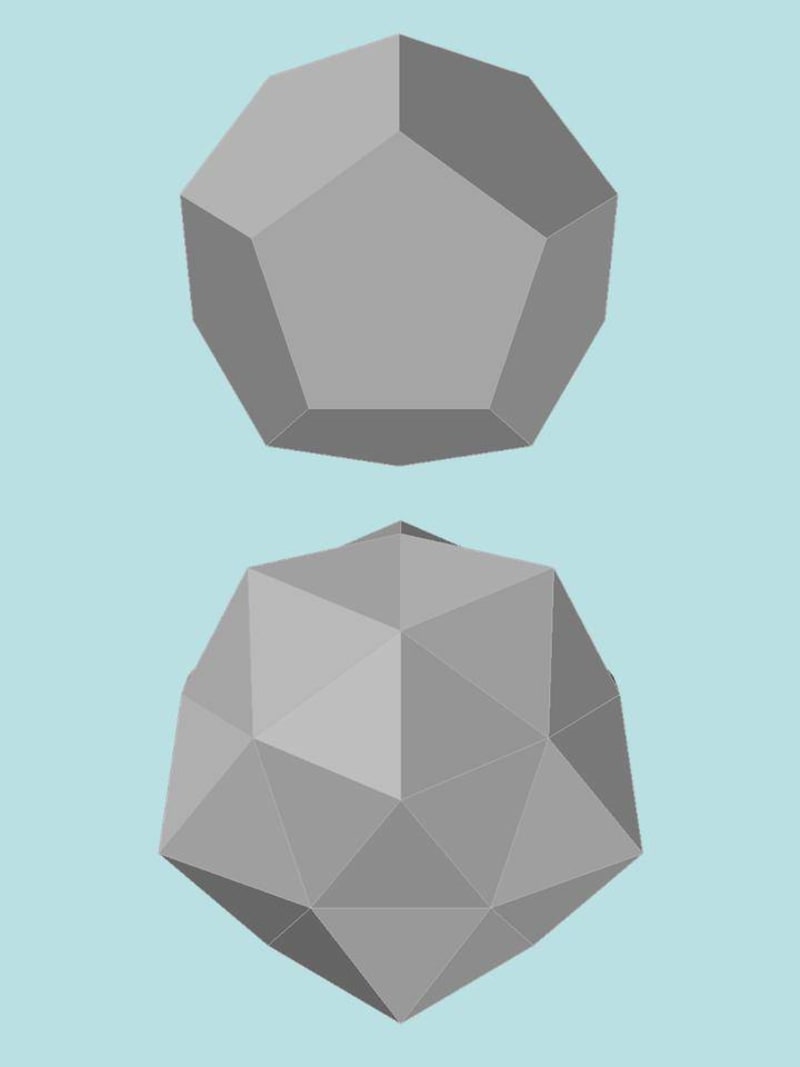

The design is based on a geometric solid known as a dodecahedron. This is a solid composed of 12 pentagon faces. To obtain more of dome shape I used each side of a pentagon as the base of a triangle. By doing this I obtain a dome shape that is composed entirely of equilateral triangles—all with the same dimensions and bilateral symmetry in all their angles!
I envision the design as a twenty-first century Yurt style tent, a greenhouse, a military command post, or an all-temperature shelter. Like an igloo, the interlocking triangles act as bricks do in a dome.

As this triangle-based dome approaches a sphere in shape, it lends itself to building structures on land, water, or even on the moon. While the design lends itself to either scaling-up, or scaling-down in size for numerous other structures and applications, the illustrated design’s size is based on obtaining triangles from readily available 4-foot wide materials. The illustrated structure measures 10.5 ft. in height, and 12 ft. in circumference.

The individual triangle bricks of the shelter are made from double-wall foam-core materials in order to achieve maximum insulation and the greatest strength-to-weight ratio. In a military shelter application, the faces can be made of Kevlar reinforced composite panels, with a Rhino-hide encased foam-core center or other such materials. In civilian emergency shelters, the outer skins can be made out of fiberglass or vinyl with an inter core of insulated panels commonly used in construction. In greenhouses, the triangles are made from clear multi-wall polycarbonate panels (the triple-wall version would be the best!) readily available on the market.

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    Eric K. Rugg
  • Type of entry:
    individual
  • Profession:
    Engineer/Designer
  • Number of times previously entering contest:
    never
  • Eric K.'s favorite design and analysis tools:
    NewTek Lightwave 3D; Adobe Illustrator, Premier, Photoshop, Page Maker; OpenOffice.
  • For managing CAD data Eric K.'s company uses:
    None
  • Eric K.'s hobbies and activities:
    Hunt, fish, sculpt, video, photo, graphic design
  • Eric K. belongs to these online communities:
    None
  • Eric K. is inspired by:
    Designs are like your children, you hope that when you send them out into the world, they will do great things. The idea of having any of my designs or inventions come to fruition, is the fulfillment of what our goal in life should be: to leave the world a better place for having been in it.
    Ideas happen, and then evolve and materialize when modeling in 3D; NewTek LightWave Modeler RULES!!!
  • Software used for this entry:
    NewTek Lightwave 3D
  • Patent status:
    none
