Lighting Note Books And Note Pads -- Traveling Light Note Books

Votes: 8
Views: 16341
Electronics

MODEL DESCRIPTION:-
Keeping in mind the worse situation of our country especially in the world where there is a shortage of power supplies, this model of lighting note books and note pads are designed. This is of a very low cost and more efficient and comes in handy for students to use for reading at nighttime when there is no power supply and at the time of traveling.
TWO MODELS FOR THE USE OF ALL PEOPLE:
1.) Plastic sheet model
2.) Ply wood model

THE OTHER DESIGNS ARE:
1.) 14”X9”-A4,LARGE SIZE
2.) 9”X 8”-HALF SIZE
3.) 4 ½” X 4” -1/4 SIZE
4.) 12” X 8” -3/4 SIZE
We can design it in the above four sizes and bring it in to use for various purposes.

PROCEDURE
This is smaller in size, low in cost and can be charged using cell phone chargers. During the time of travel it can be used without disturbing others with the volume adjustment facility (maximum to minimum). The first model is designed using plastic sheets, LED bulbs, batteries with the method of pasting and screwing. The second model is designed using plywood, thin wooden sheets, LED bulbs, batteries with paste and screw method.

WORKING PROCEDURE

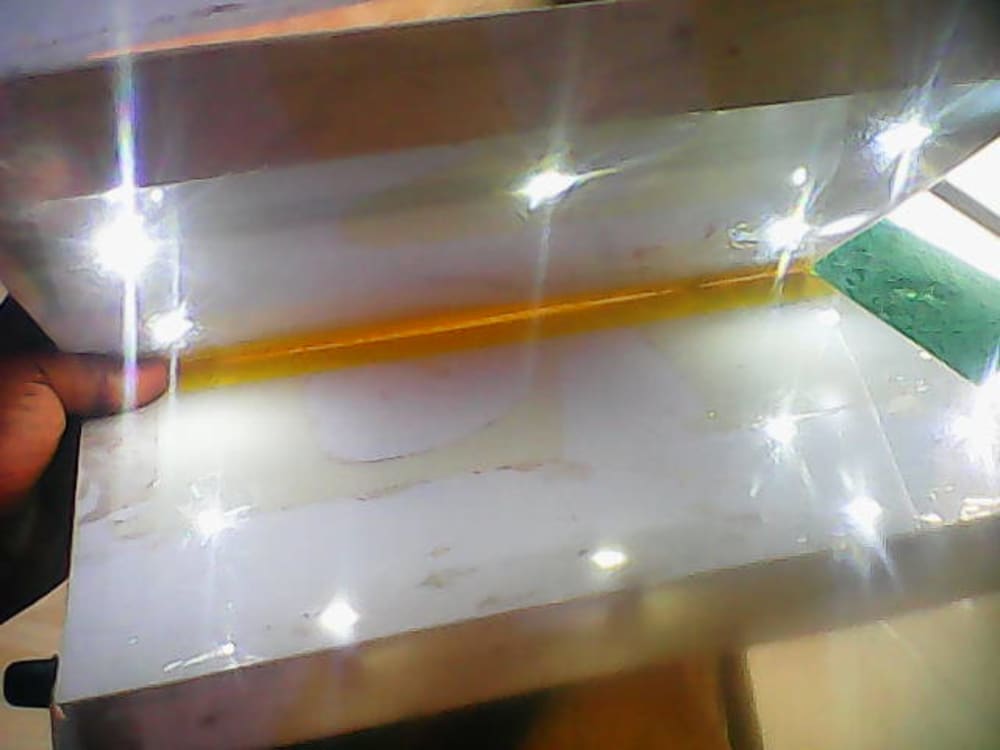

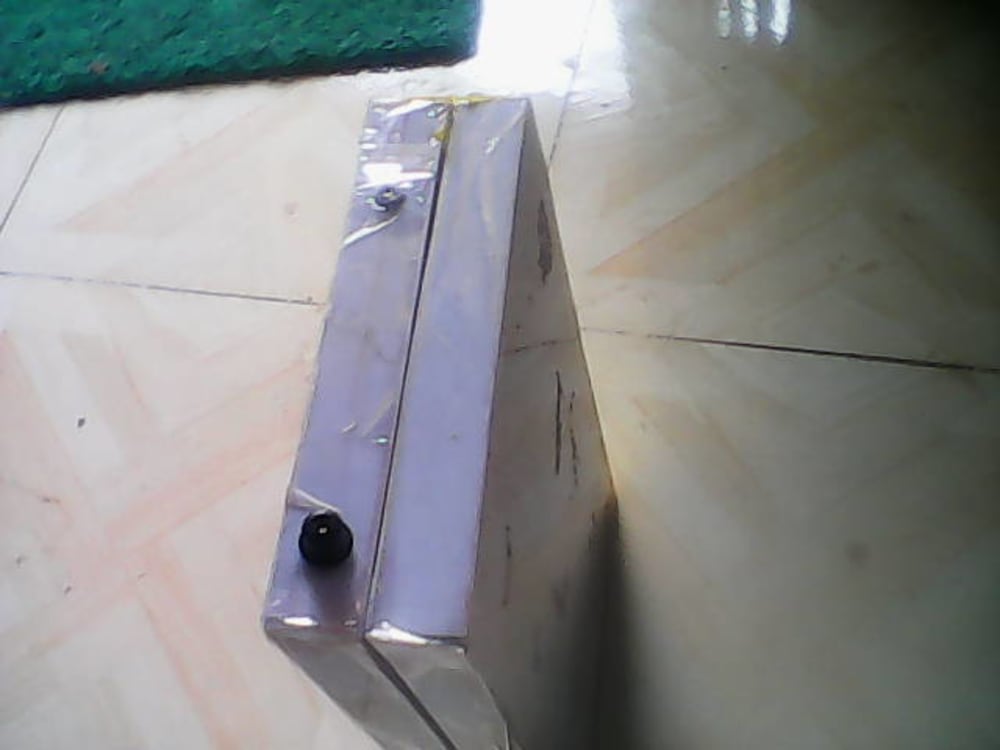

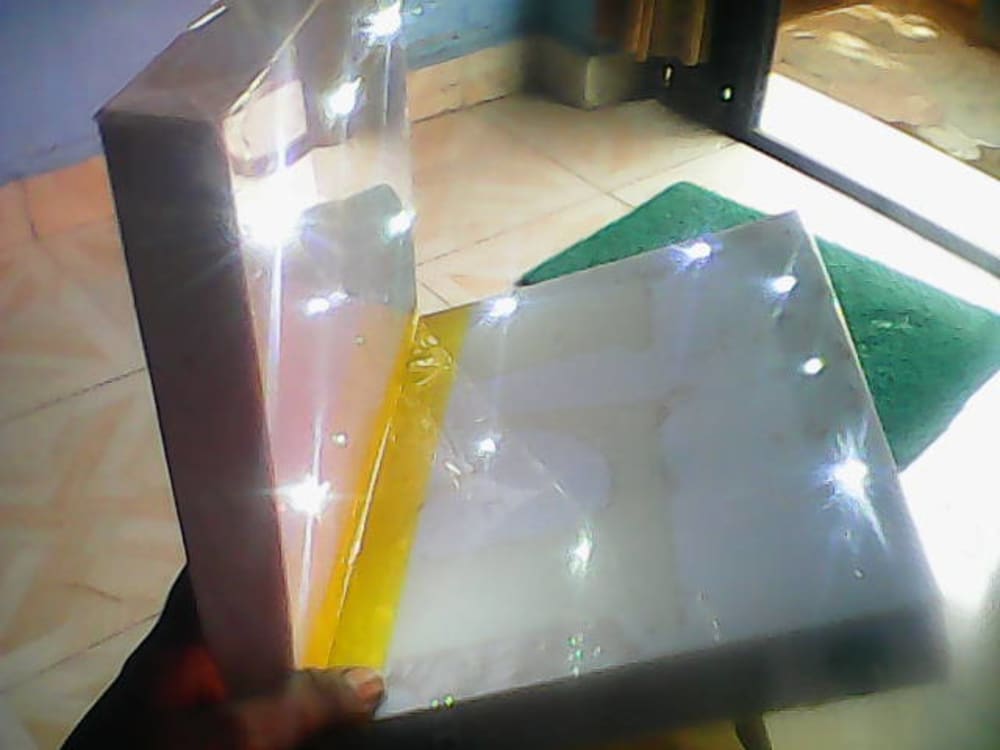

The upper and lower sheet of this notebook is designed in a box like type to be opened and closed in one side. It is easily portable due to its lesser weight and smaller size. Since it is compact, the students and carry it in their school or other small bags. It works with electricity from the charge from the charger and not directly so it is fear free for the students usage. When charged for two full hours, it can use for two full nights. White bulbs are only fixed in the sides which do not give much irritation to the eyes when used.

MERITS
1.) It causes no disturbance to the others at the time of travelling.
2.) Easy to be used by every one.
3.) Can be used during the time when there is a power off.
4.) It is used at the time of travelling in bus or train.
5.) Comes in to great use during the time of examinations.
6.) Low cost, less weight but more efficient.
7.) Students can keep in their school bags easily
8.) Since designed in various sizes,it is used for large notebooks, medium sized notebooks, novel readers and notepad users.
