Portable Tour Health Chair

Votes: 7
Views: 15073
Medical

PORTABLE TOUR HEALTH CHAIR

Keeping in mind the present situation of our country with heavy population, crowd, queues, we have designed this small foldable chair with more stability and can be used in all situations and by all level people.
THE THREE MODELS FOR ALL KIND OF SITUATOINS ARE:-
1. Model designed using metal(iron) sheet
2. Model designed using stain less steel
3. Model designed using ply wood

The first model and the second model are welded and screwed using iron and stainless sheets and pipes. And the third model is made using plywood and pipes using screw method.

THE WORKING METHOD

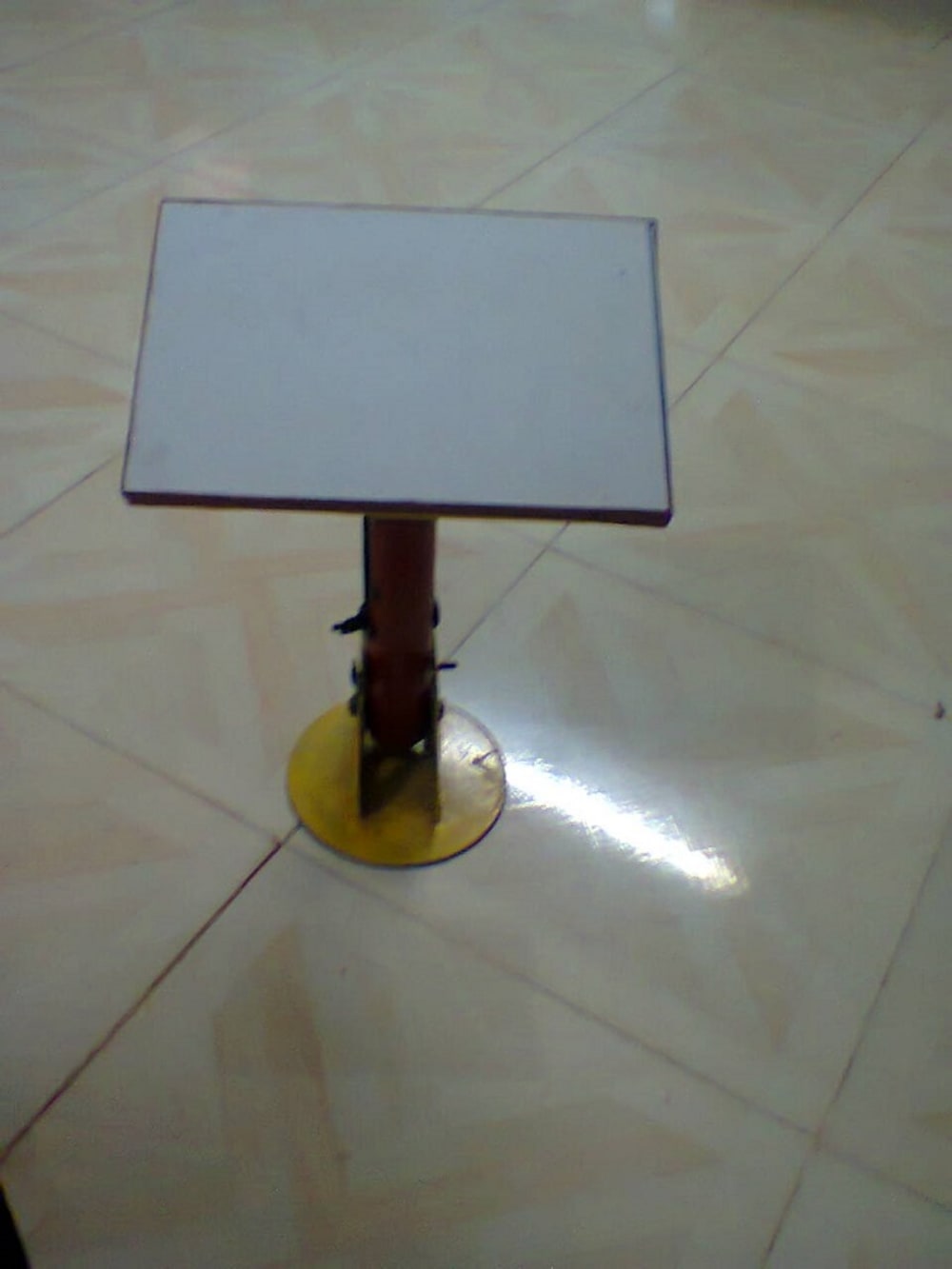

In this foldable chair the plates are assembled upside and downside. Iron pipes are fixed in order to support this assembly. To connect the pipes and plates stripes are tightened. Because of its lighter weight and smaller size it is possible to carry it anywhere and also fold and keep in a bag. In case of usage the chair is screwed to unfold. It is compact to carry in two wheelers,car, and also in bags. If needed, we can attach a round sheeted plate for table purposes.

ADVANTAGES AND BENEFITS

1. Can be used by all level people
2. Causes no disturbances in more crowded areas
3. Can catch the queue with no tension
4. Can be carried for tour and camp
5. Can be carried for exercises and sports practices
6. Reduces body strain
7. Easy to stack in bags are vehicles
1. Methods
2. Cast iron
3. Stainless steel
4. Play wood
a. 1, cast iron
5. Length – 400 mm
6. Breath – 165 mm
7. Height – 100 mm

a. 2, Stainless steel
9. Length – 400 mm
10. Breath – 165 mm
11. Height – 100 mm

a. 3, plywood
13. Length – 500 mm
14. Breath – 170 mm
15. Height – 150 mm

a. 4, Use
17. Travel & tours
18. Long length people lines
19. Play ground
20. Children’s study
21. Two wheeler work shop
22. Four wheeler wheel change
23. All shops
a. 5, Benefits
24. Small size & low cast
25. Travel bag inside packing
26. Save energy
27. Weight less
28. relax
29. two wheeler box, car dickey, bag inside packing
