Closed Loop Control for the Reduction of Soot in Diesel Fueled Engines

Votes: 146
Views: 9640

Present technology for cooling a piston throughout the entire engine operating range is to supply crankcase oil for cooling through the piston oil nozzle assembly explicitly to satisfy the worst case engine operating conditions. Unnecessary high pumping power is required to circulate the engine oil used for cooling. The oil flow is constant for any given engine rpm and not load dependent. Moreover, if the engine is not operated at a 100% load condition, resultant excessive cooling to the piston dome underside will result in overcooling the piston dome which contributes to elevated soot levels in the crankcase oil and exhaust.

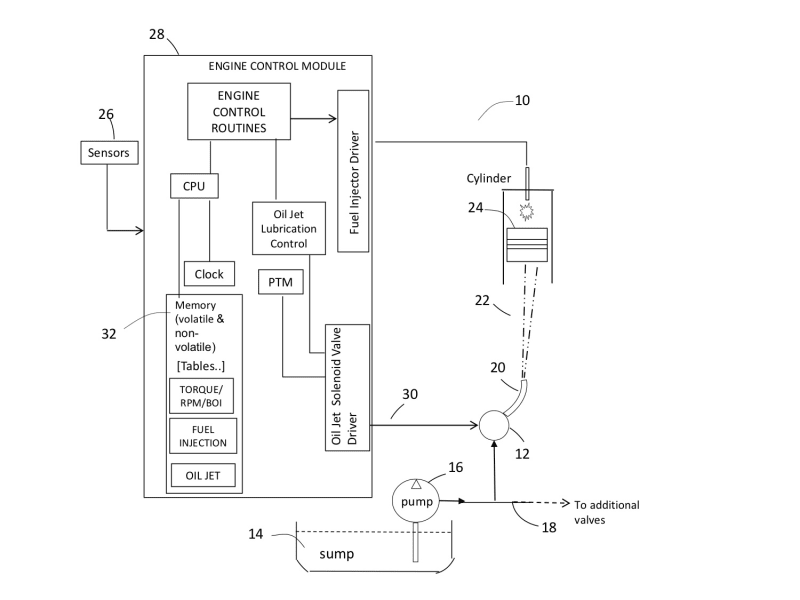

Illustration 1 satisfies these aforementioned needs by a patented piston dome cooling system 10, is comprised in one aspect, of pulse-width-modulated (pwm) solenoid valve 12, wherein, lubrication oil from the oil sump 14 is pumped by the oil pump 16 through a common rail manifold 18, through valve 12 to spray nozzle 20. One spray nozzle is generally utilized per cylinder and, oil spray quantity 22 is illustrated in this embodiment, with a reduced modulated quantity of spray, preferably directed below the piston dome 24. The motivation for this invention is to base the amount of oil used in cooling/lubrication, to the amount of thermal loading imposed on the piston due to increased loading and, perform it in a closed loop manner. The amount of oil delivered to the spray nozzle 20 shall be a function of engine feedback parameters read by sensors block 26 of engine controller 28 and a resultant pulse width command signal 30 based on look-up table(s) 32. In particular, the pulse width duty cycle signal shall modulate the valve 12 anywhere in the range of 0% to 100%, wherein, 0% represents a shut off valve (no oil flow) and 100% is fully open (max power).

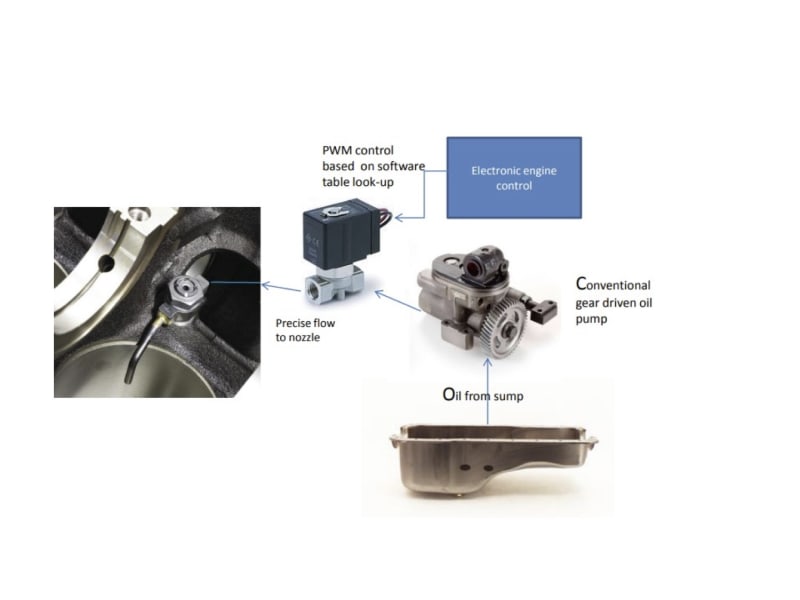

Illustration 2 depicts a conventional gear driven oil pump used on a diesel engine with an oil routing path through the inlet port of a pwm solenoid valve and, the outlet port directed to an oil jet nozzle or tube, wherein, the oil nozzle is directed to the piston dome underside to cool the piston and the piston liner.

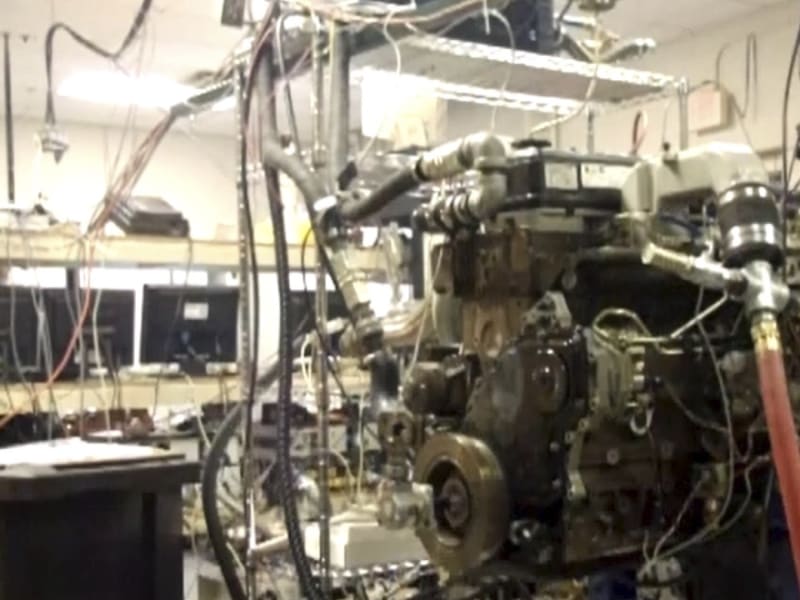

Illustration 3 is a photo of a Dodge-Cummins 5.9L, I-6 diesel engine modified for single cylinder operation, used to successfully complete a small Phase 1 Government Grant. The initial results of testing this “proof of concept” oil jet control, demonstrated a substantial improvement in emissions.

  • Allows for longer intervals between oil changes (less soot build up)
  • Accommodates the use of duel fuels
  • Allows for rapid warm-up in cold climates resulting in reduced emissions
  • Shall work on the majority of OEM and retrofitted diesel engines, including military, marine, mining, construction, locomotives, gen sets, light/med/heavy duty trucks, off-road trucks
  • Provides for reduced soot and ash entering the particulate trap, wherein, trap life is extended
  • Provides a new path in meeting the stringent 2024, 2027 EPA Emission regulations, further extending the viability of the “diesel engine workhorse”

Voting

Learn how to vote for your favorites.

  • ABOUT THE ENTRANT

  • Name:
    Michael Holihan
  • Type of entry:
    team
    Team members:
    Michael J. Holihan (co-inventor)
    Patrick J. Derbin (named inventor)
  • Profession:
    Engineer/Designer
  • Number of times previously entering contest:
    never
  • Michael's favorite design and analysis tools:
    MatLab, LabView, Simulink
  • Michael's hobbies and activities:
    recent patent pending application 17/657,349
  • Michael belongs to these online communities:
    https://www.linkedin.com/in/michael-holihan-709851
  • Michael is inspired by:
    I'm a Pro Se Inventor and currently working independently on new concepts for both the automotive and defense sectors. My partner on this long-term project is Patrick J. Derbin and has 40 plus years in Diesel Engine development and testing experience in Detroit. Patrick is the "Named Inventor" on this patent submission and I'm the "Co-Inventor". Together, we have years of experience in developing this concept and received the patent after having a successful Phase1 SBIR Government contract in Ann Arbor, Michigan (EPA Contract No. EPD13029). Top diesel researchers and University researchers have personally endorsed it and always ask "why hasn't this been invented before?" I have worked well over 4 decades combined, in both the diesel sector in Detroit and defense sector in LA and I'm driven to invent concepts that both help our environment and protect our citizens of the US. I'm a member of LinkedIn.
    This invention is US Patent #8,955,474
    https://patents.justia.com/patent/8955474
  • Software used for this entry:
    prototype hardware/software
  • Patent status:
    patented
