Instant Toilet Overflow Prevention Shutoff Valve

Votes: 4
Views: 4718

Many people do not realize that you can prevent a toilet from overflowing simply by kneeling next to the toiling and closing the water inlet valve by hand. Often they believe their only option is to plunge the toilet before it overflows. Even after learning this it is often forgotten during the next flood.

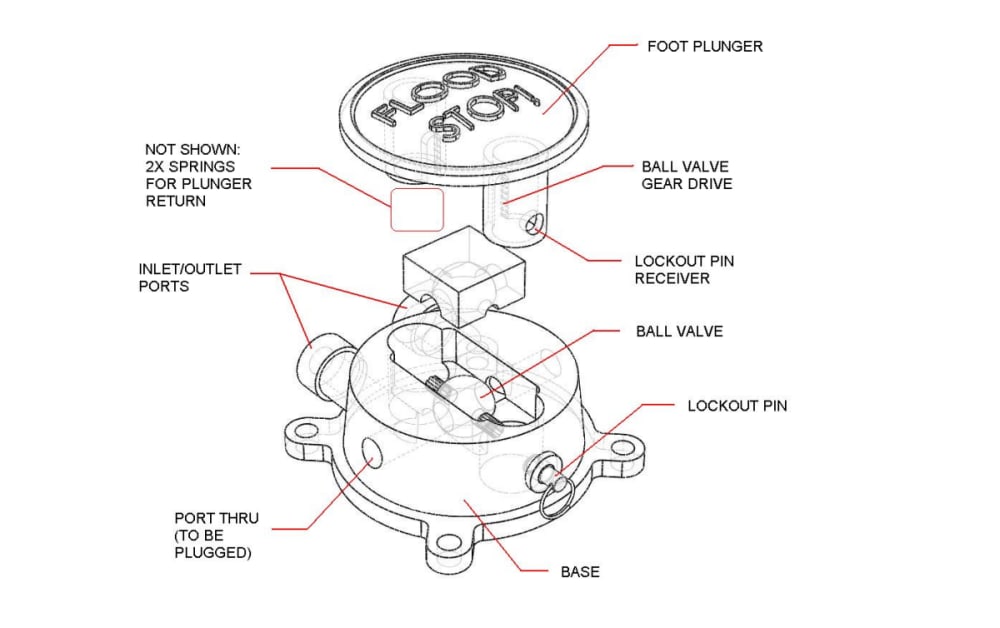

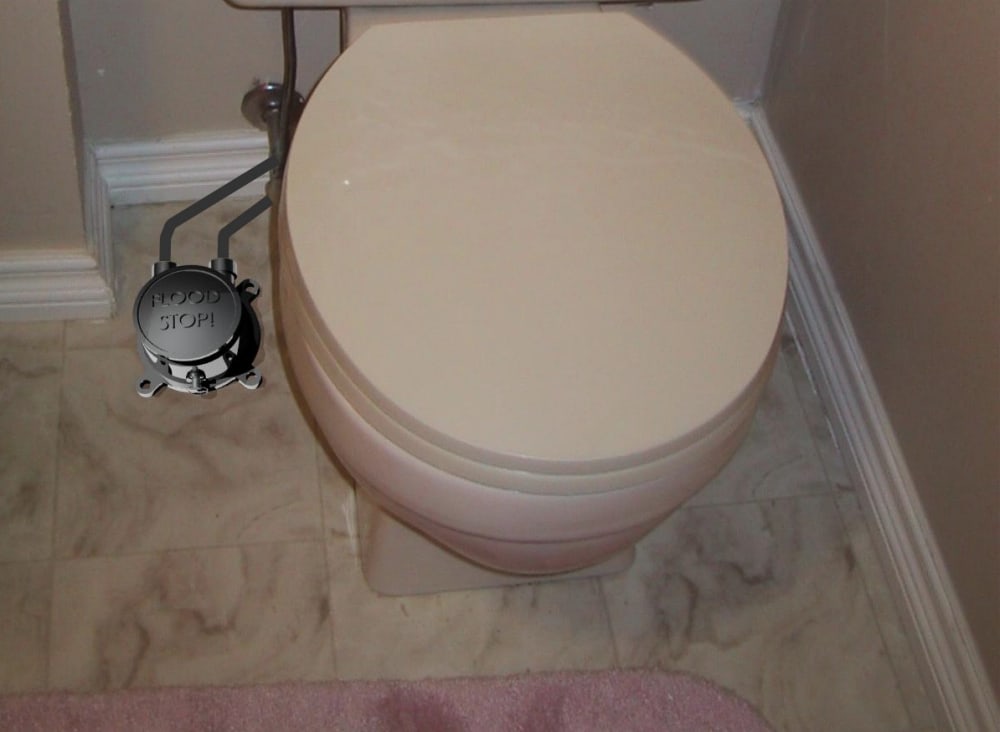

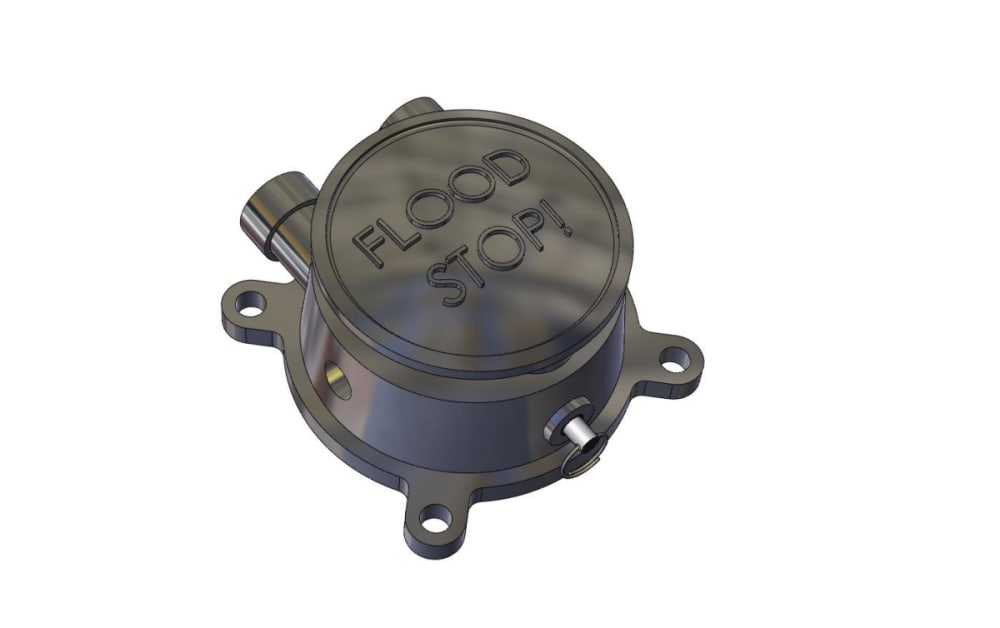

To resolve this problem I devised a method of using a simple foot actuated valve to close off the incoming water pressure in an emergancy flood situation. The valve is piped in between the water inlet and the toilet. If the toilet begins to flood then you simply step on the plunger and the flooding will stop. This will give the person time to find the source of the flooding without feeling rushed. To restore proper water flow you simply pull out the lockout pin and the plunger returns to the original position.

There are other flood prevention devices on the market today, but they are complicated and expensive and most of them are found in specialty catalogs only. This product could be sold in any hardware store for a minimal price.

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    Mark Baughn
  • Type of entry:
    individual
  • Profession:
    Engineer/Designer
  • Number of times previously entering contest:
    never
  • Mark's favorite design and analysis tools:
    Solidworks and Cosmos.
  • For managing CAD data Mark's company uses:
    DWG Editor. Autocad.
  • Mark's hobbies and activities:
    Working on cars, mountain biking and video games.
  • Mark belongs to these online communities:
    www.sx4club.com
  • Mark is inspired by:
    I work in a field where cutting manufacturing time and saving costs helps my company excel. I often have ideas that I feel would be useful to my field and/or society.
  • Hardware used for this entry:
    Dell Precision T7400
    Software used for this entry:
    Solidworks
  • Patent status:
    none
