Detection of Coronary Artery Disease

Votes: 1
Views: 4148
Medical

Coronary artery disease is the leading cause of death in Europe, Baltic states, Russia, North and South America , Australia and New Zealand. Over 4,59,000 Americans die of coronary artery disease every year making it the number 1 cause of death in US .In the UK 1,01,000 deaths annually are due to coronary artery disease. So its important to detect the coronary artery disease at the right time.
COMPONENTS REQUIRED:
1.Electrodes
2.microcontroller

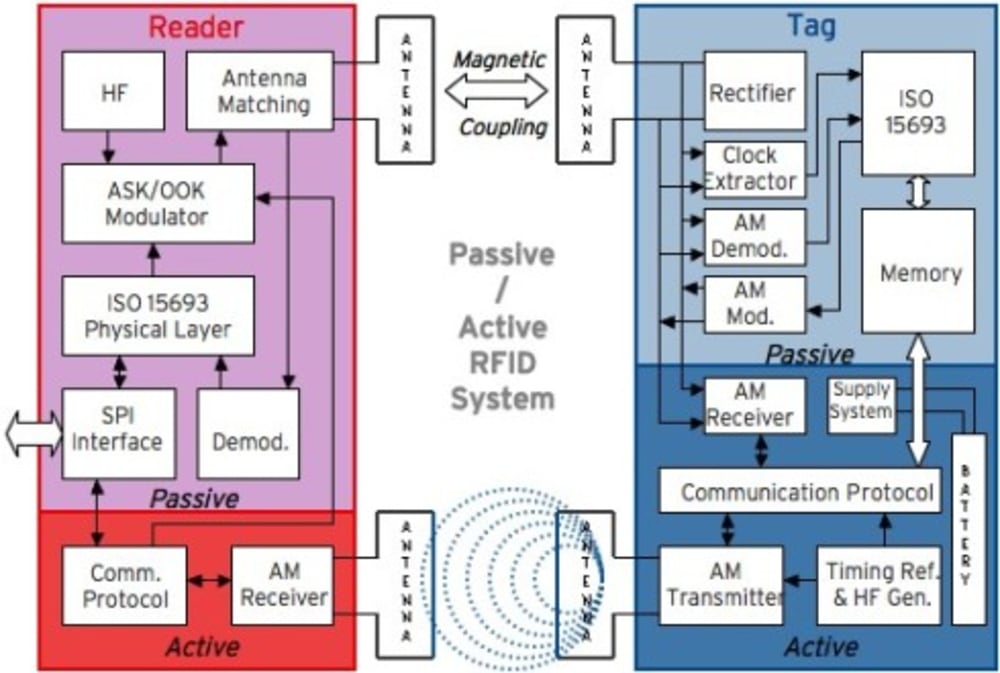

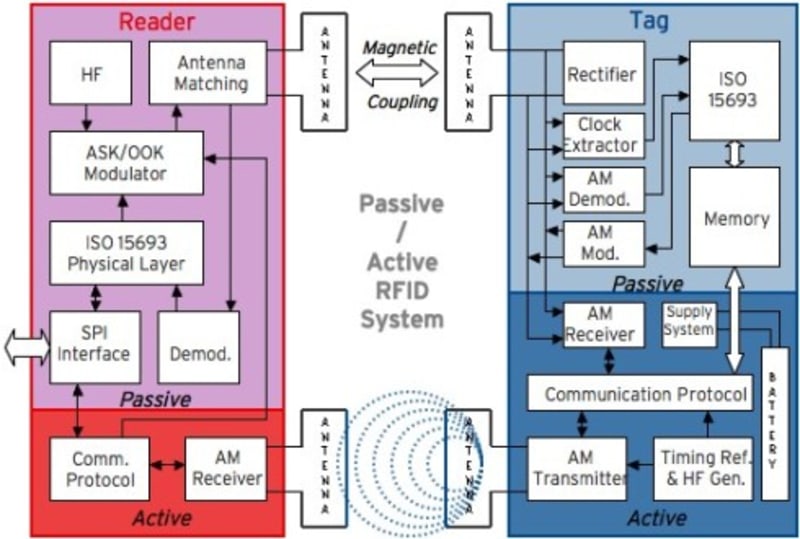

3.RFID tag
4.RFID reader.
DESCRIPTION:
Coronary arteries should be be monitored continuously
in our day to day life.Today no such device(setup) exists in the market.I propose to build a device able to monitor and detect the coronary artery disease.

The normal electrical conduction of the heart allows electrical propagation to be transmitted from the Sinoatrial Node . A momentary change in electrical potential on the surface of a cell that occurs when it is stimulated, resulting in the transmission of an electrical impulse is an action potential.The change is due to the movement of sodium/potassium ions within the cell. The cardiac action potential is a specialized action potential in the heart, necessary for the electrical conduction system of the heart.Coronary artery supplies blood to the heart.Coronary artery allows plaque formation from its walls which gets thicker and makes the artery narrow for blood circulation.So that particular portion of the heart muscle does not receive any blood resulting in the death of cells and muscle.The cell loses its action potential.So there is an abrupt change of action potential in the dead portion of heart muscle.These action potentials can be detected using electrodes.When a portion of the muscle encounters an action potential then the potential outside and inside the cell surface is not constant resulting in a current flow(deflection in voltmetre).The data is then sent to the processing unit(microcontroller).ADC conversions are done here.The frequency of measurement and transmission of data are also set here.The data is then sent to an implanted RFID transmitter.The RFID reader receives the data.The RFID reader can be placed even inside a cellphone.This data can be used to detect the presence of coronary artery disease.

To summarize,this technique is very useful for patients having history of heart problems(and undergone bypass surgery or partial blocks in artery).The state of a coronary artery can be predicted by an angiography test.So the doctors can easily find out the affected coronary arteries.The electrodes are now attached to the heart muscles close to the partially affected arteries.Later any abrupt changes in action potentials are identified by the above method and it indicates the current status of the block in the artery.So the patients can be treated immediately.

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    Karthik Kumaravelu
  • Type of entry:
    individual
  • Profession:
    Student
  • Number of times previously entering contest:
    never
  • Karthik's hobbies and activities:
    reading books,designing circuits,watching cricket
  • Karthik belongs to these online communities:
    linkedin
  • Karthik is inspired by:
    I was inspired to design this idea because of the growing problems in society due to coronary artery disease.Its the leading cause of death in US and many other countries.
  • Hardware used for this entry:
    RFID TAG,READER,ELECTRODES,MICROCONTROLLER
    Software used for this entry:
    C language
  • Patent status:
    none
