Save 30% Gasoline -> Pressure Pulsation Dampers for Injectors and Twin-Jet Injectors (GOAL: Pressure Damped Twin-Jet Injectors)

Votes: 0
Views: 2840
Previous Next

Gasoline engines with separately operating injectors, for the direct injection of fuel in each cylinder, represent the present state-of-the-art. The injectors used gasoline engines operate at pressure of up to 200 bar in order to provide fuel sprays with very fine droplet distributions with Sauter diameters of about 20 ?m, generated by round hole nozzles.

Using multiple fuel injections, combustion methods with direct injection can be realized, which would not be feasible with the intake-manifold fuel injection of conventional gasoline engines. Stratified and homogeneous combustion methods can be realized, but investigations show that further improvements of combustion methods and thus improvements of exhaust emissions are only possible when the pressure pulsations, caused by opening and closing, the injector valves can be inhibited. The latter are inherently related to the required fast opening and closing of the valves and can reach ±30 % of the mean operating pressure of an injector.

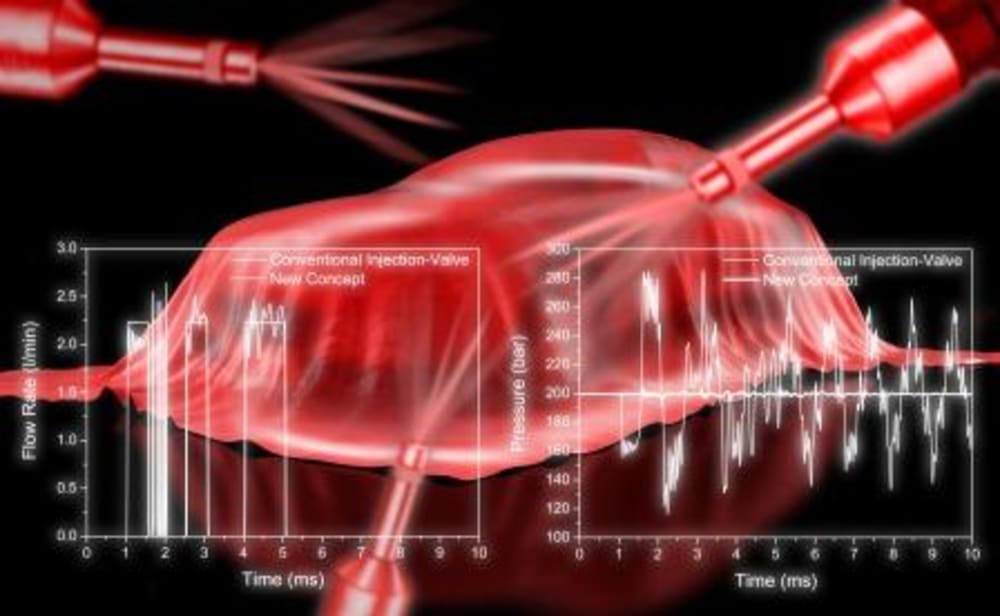

The time-varying pressure distribution in front of an injector, for example injector 2, shows that the high-frequency pressure variations caused in front of an injector by sudden velocity changes of the fuel at the beginning and at the end of an injection. Neither the influence of the pump nor the pressure loss in the common rail during injection can be recognized at first sight in the illustrated pressure profile.

Furthermore, not only the injection of a considered injector causes pressure pulsations in front of this injector but in addition, the injections of the other injectors of an gasoline engine cause induced pressure variations. Pressure pulsations, which are caused by one of the injectors, run from this injector into the common rail and from there through the connecting pipes to the other injectors. This dependency between the injectors can only be eliminated if the pressure waves caused by the considered injector are significantly damped. The development of improved combustion methods in gasoline engines can lead to reduced emissions. The achievable improvements depend on whether the pressure pulsations, occurring in common rail injector systems, can be damped in a way that controlled fuel injections become possible.

This email address is being protected from spambots. You need JavaScript enabled to view it.

Voting

Voting is closed!

  • ABOUT THE ENTRANT

  • Name:
    Joel D. Orth
  • Type of entry:
    team
    Team members:
    Prof. Durst
    Mr. Gillert
    Mr. Zielmann
  • Number of times previously entering contest:
    2
  • For managing CAD data Joel D.'s company uses:
    None
  • Joel D. belongs to these online communities:
    Xing
  • Patent status:
    patented
